The APC NetShelter SX 48U server rack enclosure is engineered for enterprise data centers, cloud service providers, and IT professionals managing mission-critical infrastructure. This premium data center server rack delivers:
-
Data center rack server capacity for high-density blade and converged infrastructure
-
Server rack components compatibility with industry-standard 19-inch equipment
-
Enterprise server rack reliability with modular design for future expansion
-
Blade server rack optimization with superior airflow and cable management
Key Features
-
48U rack space accommodating high-density server and network equipment
-
750mm width x 1200mm depth providing optimal space for modern blade servers
-

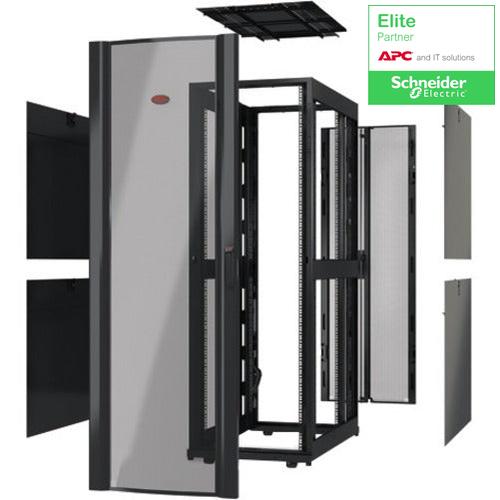

Modular enclosure design allowing customization with optional side panels and doors
-
Superior cable management with integrated routing and strain relief systems
-
Enhanced airflow design supporting high-performance computing environments
-
Tool-free installation of rack-mount equipment and accessories
-
Black powder-coat finish for professional data center appearance
-
Seismic certification meeting Zone 4 earthquake safety requirements
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
AR3357X617 |
| Product Type |
NetShelter SX Server Rack Enclosure |
| Rack Units |
48U (2134mm usable height) |
| Width |
750mm (29.5 inches) |
| Depth |
1200mm (47.2 inches) |
| Overall Height |
2273mm (89.5 inches) |
| Rack Opening |
19 inches (482.6mm) |
| Weight Capacity |
1365 kg (3000 lbs) static load |
| Configuration |
Without side panels, without doors |
| Color/Finish |
Black powder-coated steel |
| Mounting Rails |
Adjustable square hole mounting rails included |
| Airflow |
Front-to-rear optimized for hot aisle/cold aisle |
| Cable Management |
Integrated horizontal and vertical cable managers |
| Seismic Rating |
Zone 4 certified |
| Operating Temperature |
0°C to +40°C (32°F to 104°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Warranty |
2-year manufacturer warranty |
Frequently Asked Questions
Q: What is the maximum server capacity for this 48U rack enclosure?
A: This NetShelter SX 48U server rack supports up to 48 rack units of equipment with a maximum static load capacity of 1365 kg (3000 lbs) — ideal for high-density blade server rack configurations and converged infrastructure deployments requiring maximum computing power per rack unit.
Q: Can I add doors and side panels to this enclosure later?
A: Yes, this data center server rack features a modular design that allows you to add APC NetShelter SX doors, side panels, and other accessories at any time — the flexible architecture supports future expansion and customization as your server rack components needs evolve.
Q: What cooling considerations are important for this rack configuration?
A: The open design without sides and doors provides maximum airflow for natural cooling, making it perfect for data center rack server environments with proper HVAC systems — the front-to-rear airflow pattern works optimally with hot aisle/cold aisle data center layouts for efficient thermal management.
Q: Is this rack suitable for seismic-sensitive installations?
A: Yes, this enterprise server rack meets Zone 4 seismic certification requirements — engineered for mission-critical installations in earthquake-prone regions, it provides the structural integrity needed for valuable server and network equipment protection in demanding environments.
