The APC NetShelter Rack PDU Advanced delivers reliable power distribution for critical IT equipment within 19-inch racks. Engineered for data centers and enterprise networks, this switched metered outlet PDU provides advanced features facilitating precise power monitoring and control.
Key Features:
-
Switched Metered PDU: Allows individual outlet management and remote power cycling.
-
High Power Capacity: Designed for high demand environments with 8.6kW output power.
-

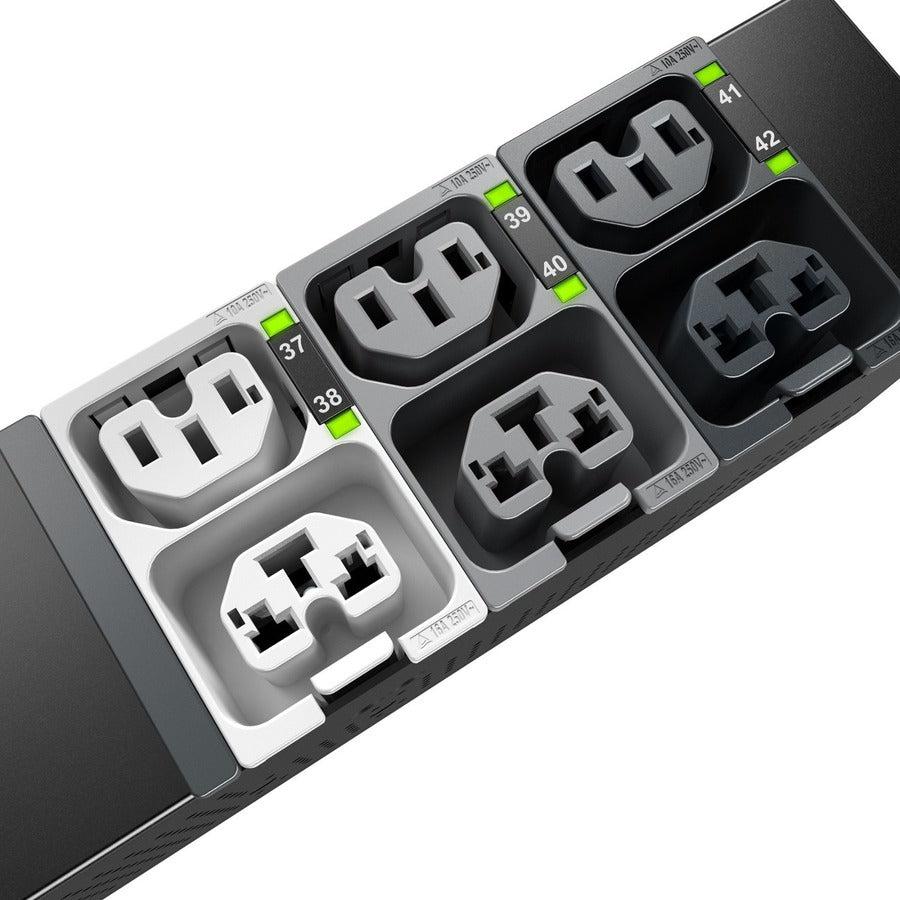

48 Outlets: Accommodates multiple devices within server racks, supporting IEC 320 C13 and C19 connections.
-
3-Phase 208V 30A: Offers efficient, high-capacity power distribution for energy-intensive operations.
-

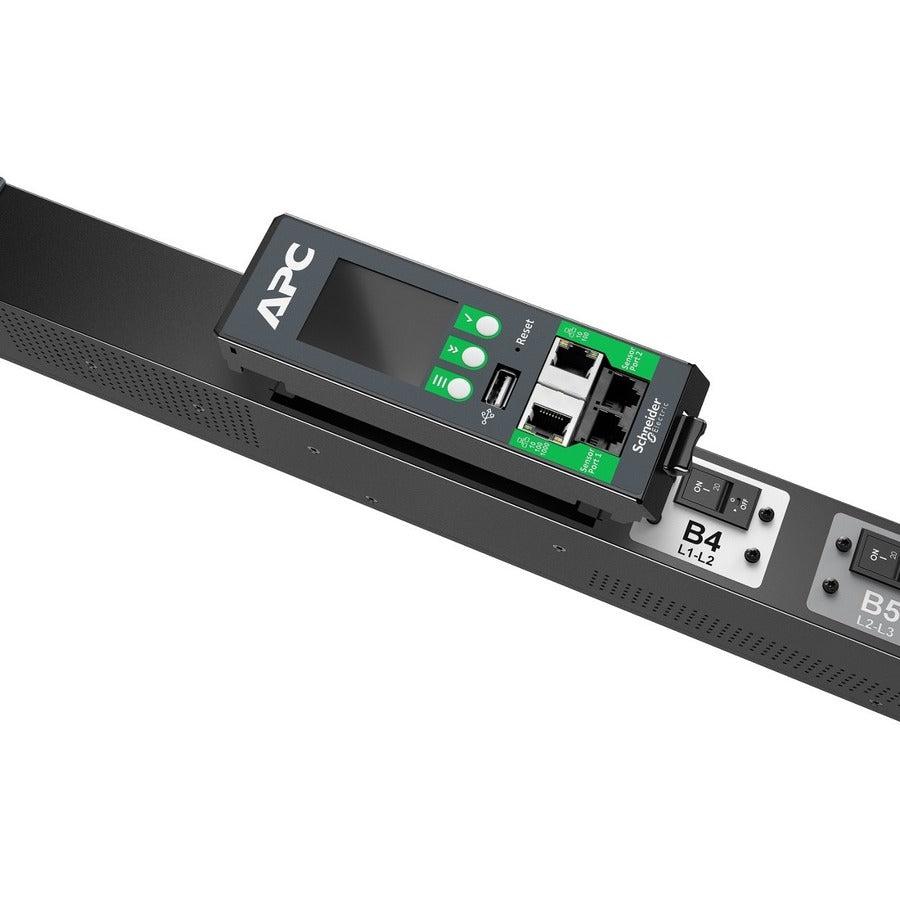

Network Management Capabilities: Integrated with network management software, SNMP, and web access for complete control.
-
Environmental Monitoring: Supporting smart sensors to monitor environmental conditions remotely.
-
Remote Monitoring: Ensures comprehensive power management with remote accessibility and alerts.
Technical Specifications:
| Manufacturer |
APC by Schneider Electric |
| Part Number |
APDU10351SM |
| Type |
Switched Metered Rack PDU |
| Power Capacity |
8.6kW |
| Input Configuration |

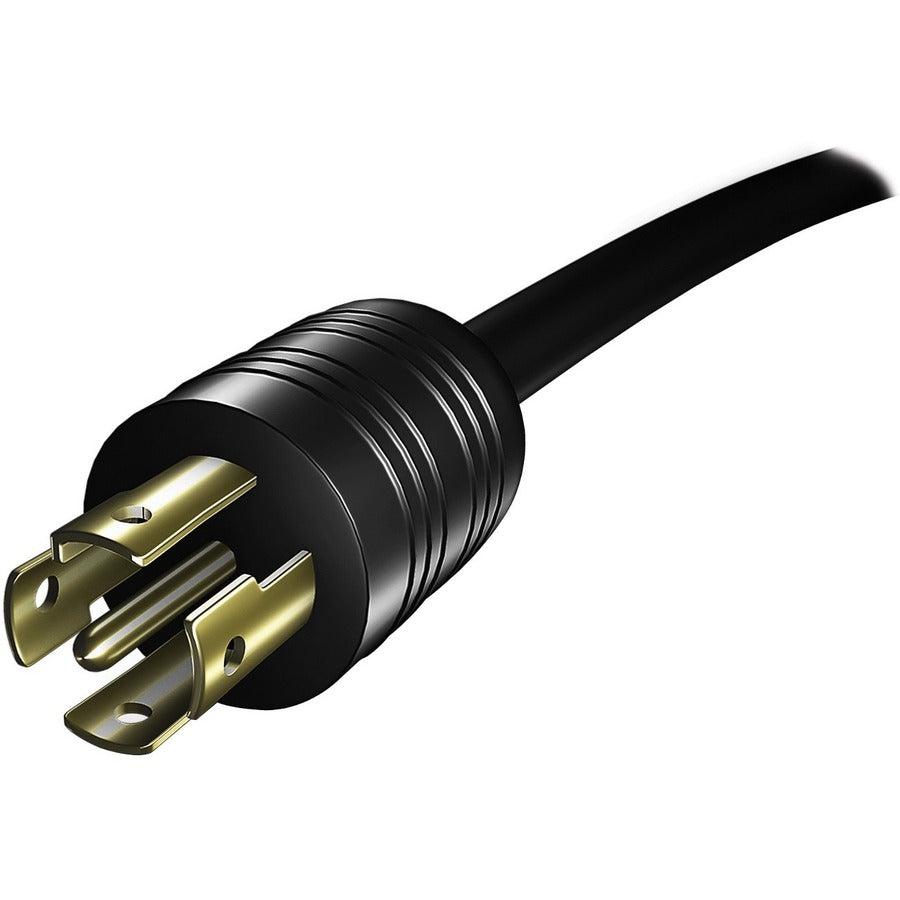

3 Phase, 208V, 30A, L21-30P |
| Outlet Configuration |
48 outlets: IEC 320 C13 and C19 |
| Network Management |
SNMP, Web Interface, Remote Control |
| Form Factor |
0U Vertical Mount in Rack |
| Environment |
Operating Temperature: 0°C to 45°C |
Frequently Asked Questions
Q: What is the main advantage of a switched metered PDU?
A: It offers both power monitoring and the capability to remotely control individual outlets for better energy management.
Q: How do I integrate this PDU with my existing network management system?
A: The PDU supports SNMP and web-based management interfaces allowing seamless integration into your current infrastructure.
Q: Can the PDU provide alerts for environmental conditions?
A: Yes, with optional environmental sensors, the PDU can send alerts regarding temperature and humidity changes.
