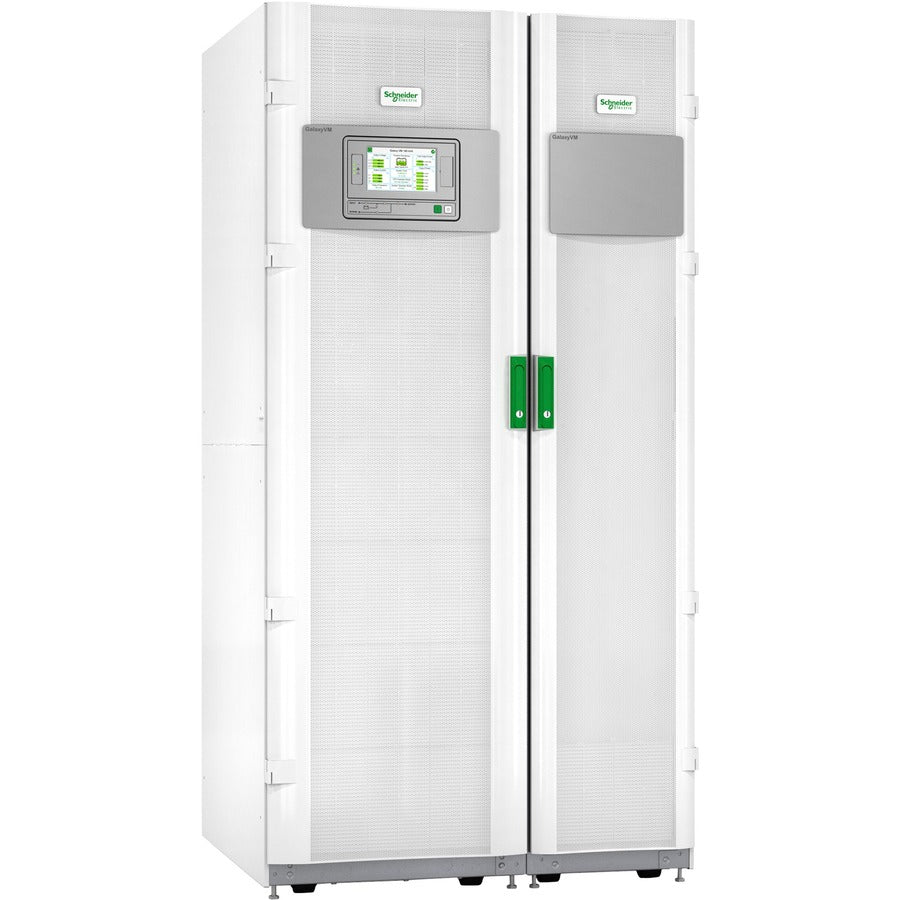

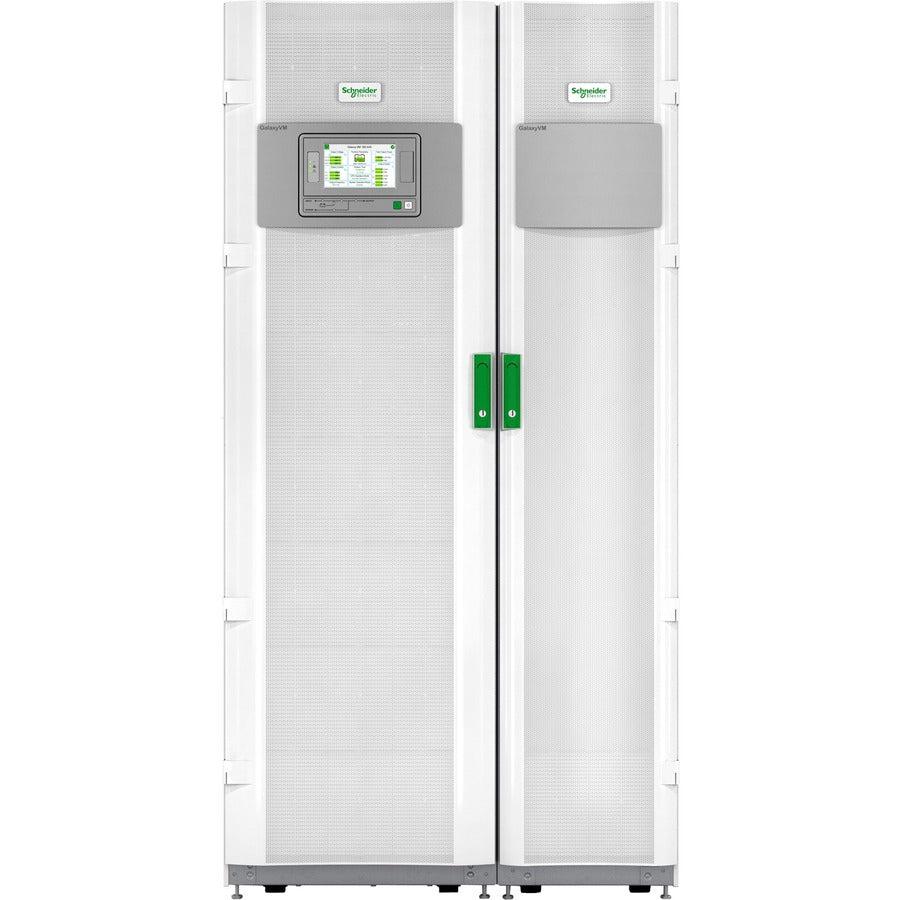

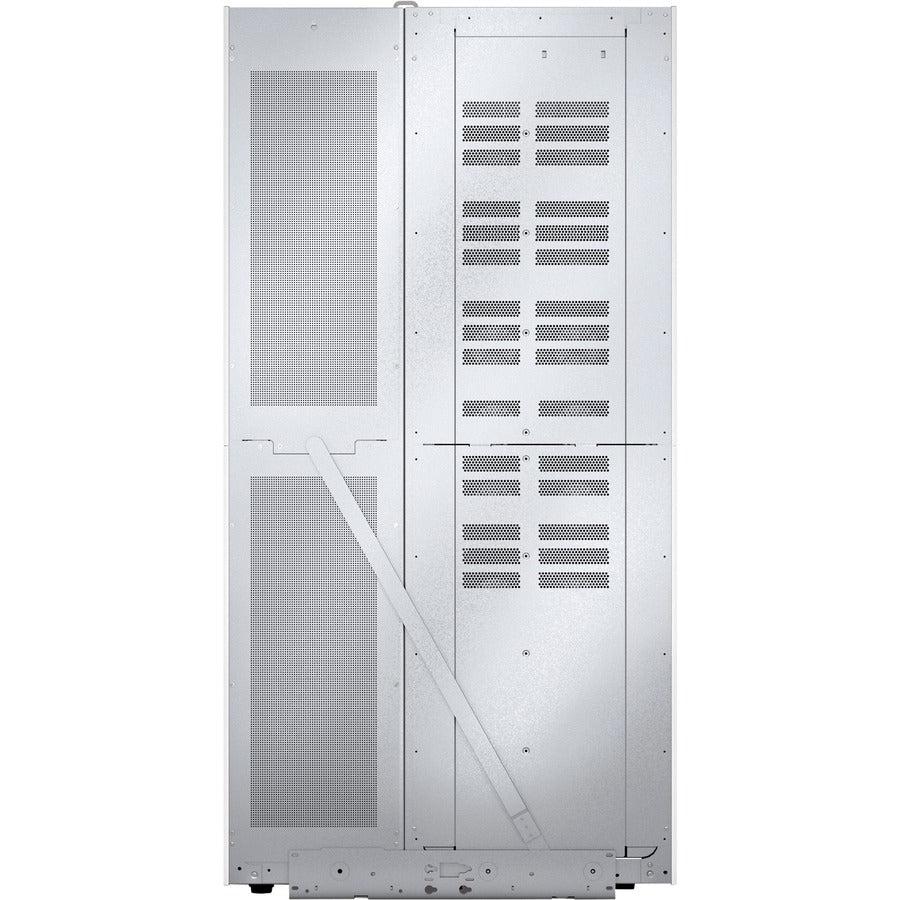

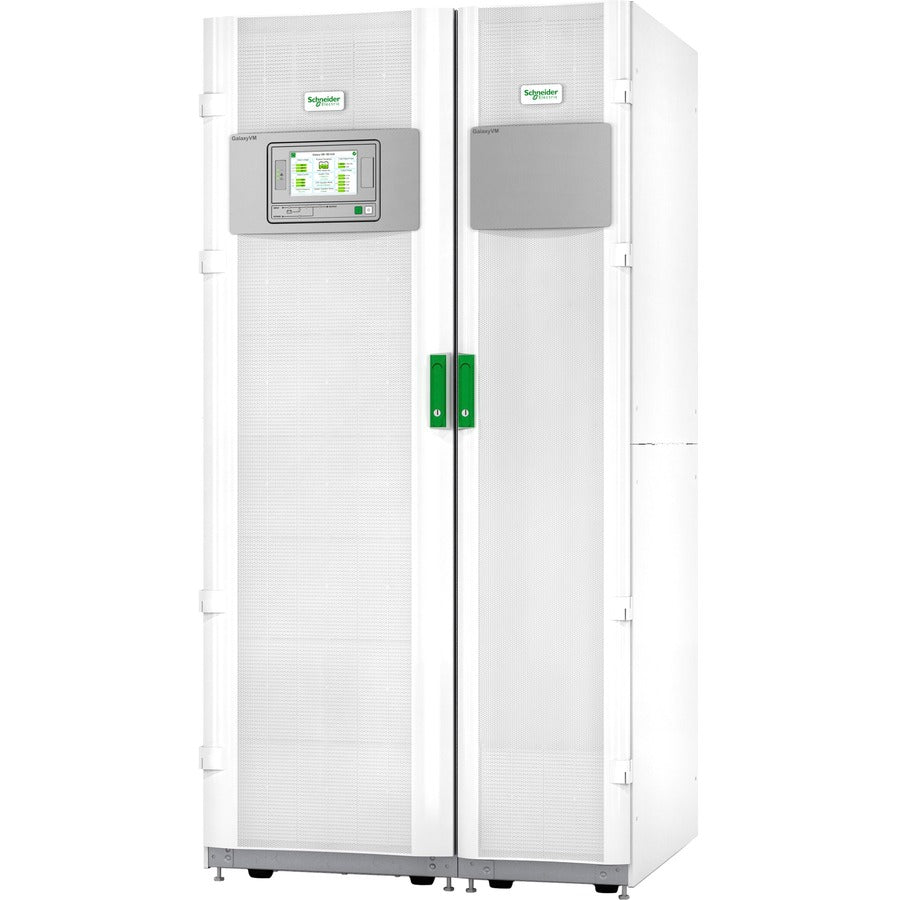

APC by Schneider Electric Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start Up 5x8 - 480 V AC Input - 480 V AC Output - 1 x Hard Wire 4-wire (3PH + G), 1 x Hard Wire 5-wire (3PH + N + G)
Galaxy VM Lithium-Ion battery solutions. Galaxy VM is a key component in the comprehensive Schneider Electric energy management solution for data center and industrial applications. Galaxy VM deploys state of the art technology to lower energy cost through very high efficiency ratings and the newly innovative ECOnversion mode. Galaxy VM seamlessly links to your electrical network using state of the art electrical performances like very wide input voltage range, high overload and short circuit capacity, and integrated back feed protection, providing excellent power quality. The highly compact Galaxy VM also links in with your facility monitoring systems and smart grid requirements and offers both traditional and modular energy storage flexibility that allows tailoring of the solution to specific needs. Galaxy VM features top and bottom cable entry without the need for an additional side cabinet, full front service access, back to the wall installation, and included start up service, making it one of the easies
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
GVMSB160KG65S
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Galaxy VM
Product Name
Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start Up 5x8
Product Type
Double Conversion Online UPS
Height
77.6"
Width
39.5"
Depth
33.6"
Weight (Approximate)
1494.80 lb
Miscellaneous
Package Contents
Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start up 5x8
Dust Filter
Installation Guide
Integrated Network Management
Seismic Compliance
Start-Up Service
Top and Bottom Cable Entry
Energy Star
Yes
Warranty
Limited Warranty
1 Year
