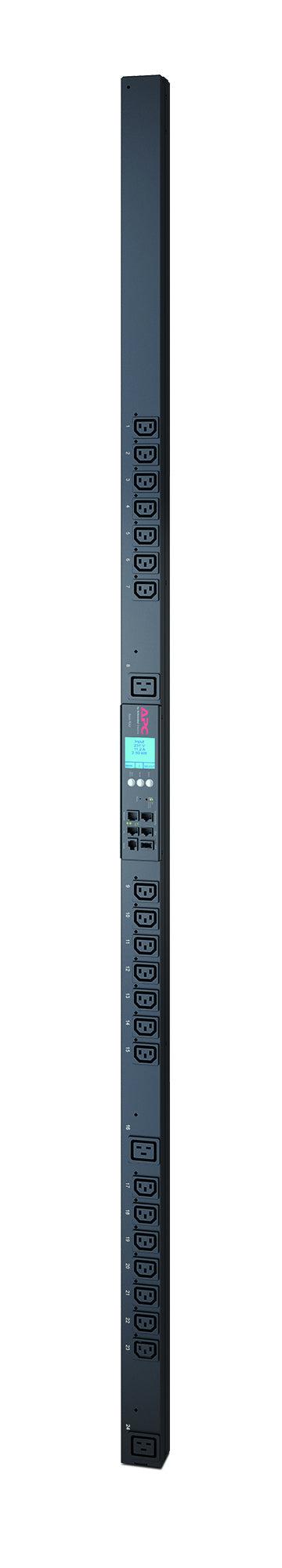

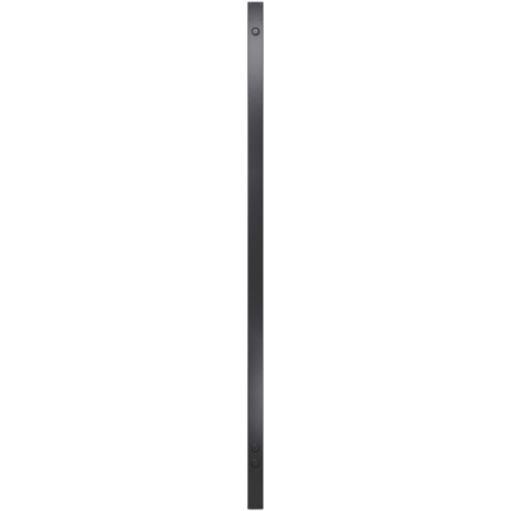

This APC Rack PDU 2G AP8659 is perfect for data center managers, IT administrators, and enterprise facilities requiring intelligent power distribution with granular monitoring and control. Our metered by outlet PDU delivers:
-
Individual outlet monitoring providing real-time power consumption data for each connected device
-
Remote switching capabilities enabling power cycling and load management from anywhere on the network
-
ZeroU form factor mounting vertically in racks without consuming valuable rack space
-
Enterprise-grade reliability designed for mission-critical data center environments
Key Features
-
Metered by outlet functionality monitoring power usage at individual outlet level for precise energy management
-
Switched power distribution enabling remote power on/off control for connected equipment
-
ZeroU rack mounting optimizing rack space utilization with vertical installation
-
Network management card compatible supporting SNMP monitoring and web-based management
-
Real-time power monitoring tracking voltage, current, power consumption, and energy usage
-
Intelligent load management preventing overloads with configurable power thresholds and alarms
-
Hot-swappable network cards enabling upgrades without powering down the PDU
-
Environmental monitoring ready supporting temperature and humidity sensors for comprehensive data center monitoring
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
AP8659 |
| Product Type |
Metered by Outlet Switched Rack PDU |
| Form Factor |
ZeroU (Vertical Rack Mount) |
| Input |
IEC 60309 32A 3P+N+E |
| Output Outlets |
21x IEC 60320 C13, 3x IEC 60320 C19 |
| Rated Current |
32A at 230V |
| Maximum Power |
7.4kW |
| Voltage Range |
200-240V AC |
| Frequency |
50/60 Hz |
| Mounting |
ZeroU Vertical Rack Mount |
| Network Management |
Network Management Card Compatible |
| Communication |
SNMP, Web Interface, SSH, Telnet |
| Monitoring |
Individual Outlet Metering |
| Switching |
Individual Outlet Control |
| Display |
Digital LED Display |
| Environmental Sensors |
Temperature/Humidity Sensor Compatible |
| Dimensions |
0U x 84.3" H x 1.7" W x 2.2" D |
| Weight |
15.4 lbs (7 kg) |
| Operating Temperature |
32°F to 122°F (0°C to 50°C) |
| Certifications |
UL, CE, FCC, RoHS Compliant |
Frequently Asked Questions
Q: What are the benefits of metered by outlet power monitoring?
A: Metered by outlet monitoring provides individual power consumption data for each connected device, enabling precise energy management, capacity planning, and billing accuracy. This intelligent PDU helps identify power-hungry equipment, optimize load distribution, and implement effective power budgeting strategies in data center environments.
Q: How does the ZeroU form factor benefit data center installations?
A: The ZeroU form factor allows vertical mounting alongside rack equipment without consuming valuable rack units. This space-saving design maximizes server density while providing comprehensive power distribution and monitoring. The vertical installation also improves cable management and provides easy access to outlets.
Q: Can I remotely control individual outlets on this PDU?
A: Yes, this switched PDU provides remote power management capabilities for each outlet. Through the network management interface, you can remotely power on/off individual outlets, schedule power operations, and perform emergency shutdowns. This functionality is essential for remote troubleshooting and automated power management in data centers.
Q: What network management capabilities does this PDU offer?
A: With an optional network management card, this PDU supports SNMP monitoring, web-based management, SSH, and Telnet access. Features include real-time power monitoring, configurable alarms, event logging, user access control, and integration with data center infrastructure management (DCIM) systems for comprehensive facility monitoring.
APC Rack PDU 2G AP8659 featuring metered by outlet monitoring, remote switching, ZeroU vertical mounting, and network management for intelligent data center power distribution.
