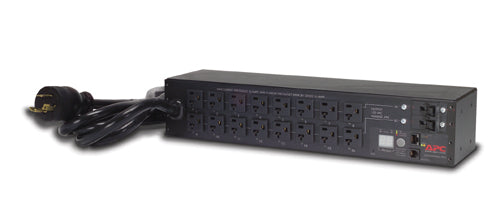

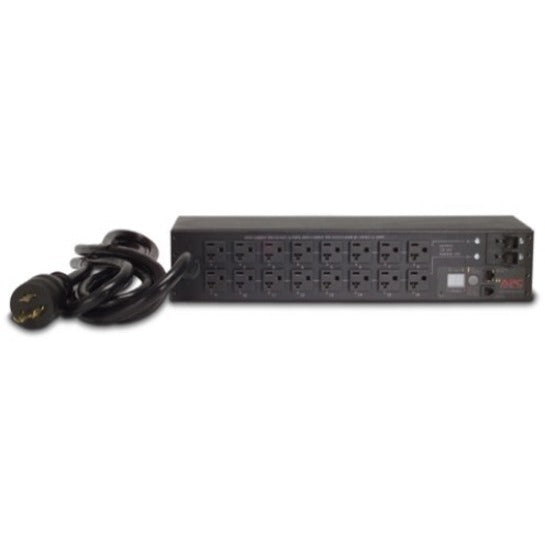

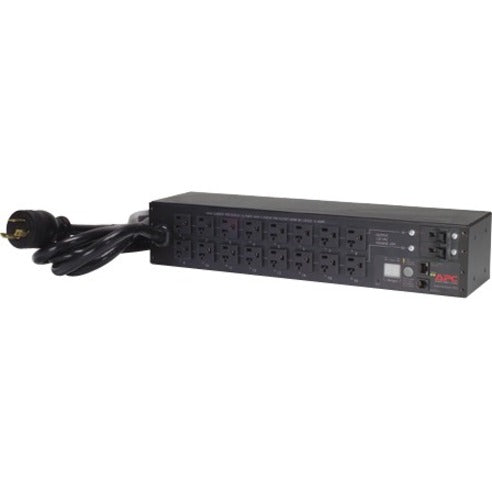

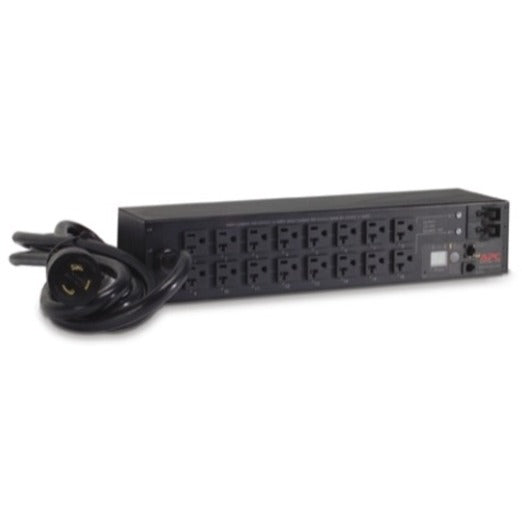

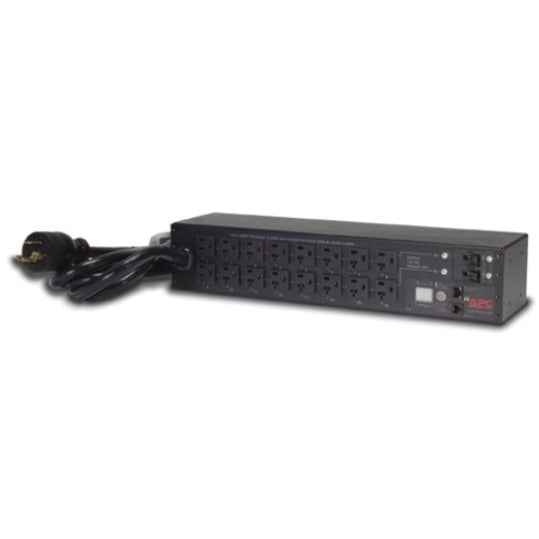

This APC NetShelter Switched Rack PDU AP7902B is perfect for data center managers, IT professionals, and network administrators who need precise switched power distribution unit control for mission-critical server environments. Our advanced power management solution delivers:
-
Smart power distribution unit technology with individual outlet level switching and remote reboot capabilities
-
Managed power distribution unit features providing comprehensive monitoring, control, and energy management
-
Intelligent power distribution unit design with SNMP network management for seamless data center integration
-
Rack mount power distribution units PDU optimization delivering reliable power to servers, switches, and storage systems
Key Features
-
Individual outlet switching control enabling remote power cycling and load sequencing for connected equipment
-
Real-time power monitoring with current, voltage, and power consumption measurement at outlet and bank levels
- Compatible with APC NetShelter enclosures and standard 19-inch server racks for versatile installation
- Advanced network management capabilities with SNMP v1/v2c/v3 support for enterprise monitoring systems
-
Zero-U rack space design mounting vertically in rack rails without consuming valuable rack units
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
AP7902B |
| Series |
NetShelter Switched Rack PDU |
| Type |
Switched Power Distribution Unit |
| Management Level |
Outlet Switched and Monitored |
| Input Voltage |
208V Single Phase |
| Input Current Rating |
30 Amp |
| Input Power Rating |
6.2 kW maximum |
| Input Connection |
L6-30P NEMA plug |
| Input Cord Length |
12 feet (3.7 meters) |
| Output Outlets |
24x IEC 320 C13 outlets |
| Output Configuration |
2 controllable load banks of 12 outlets each |
| Outlet Switching |
Individual outlet on/off control |
| Outlet Monitoring |
Individual outlet current monitoring |
| Power Monitoring |
Real-time voltage, current, and power measurement |
| Network Interface |
10/100 Ethernet with RJ-45 connector |
| Management Protocols |
SNMP v1/v2c/v3, HTTP/HTTPS, Telnet/SSH |
| Security Features |
SSL encryption, user authentication, access control lists |
| Environmental Monitoring |
Optional temperature and humidity sensors supported |
| LED Indicators |
Power status and outlet activity indicators |
| Form Factor |
Zero-U vertical rack mount design |
| Mounting Options |
NetShelter SX/VX rail mount, standard 19" rack mount |
| Dimensions (H x W x D) |
44.5" x 1.7" x 2.2" (1130 x 43 x 56 mm) |
| Weight |
7.7 lbs (3.5 kg) |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
5°F to 140°F (-15°C to 60°C) |
| Humidity |
5-95% non-condensing |
| Altitude |
Up to 10,000 ft (3,048 m) above sea level |
| Safety Certifications |
UL Listed, CSA, CE Marked, FCC Class A |
| Environmental |
RoHS compliant, WEEE directive compliant |
| Circuit Protection |
30A input circuit breaker with manual reset |
| Surge Protection |
Metal oxide varistors (MOV) on all outlets |
| Load Banks |
2 independently controlled 15A load banks |
| Current Accuracy |
±1% of reading |
| Voltage Accuracy |
±1% of reading |
| Power Accuracy |
±2% of reading |
| Switching Capability |
Individual outlet and bank level control |
| Switching Speed |
Configurable delay from 0-9999 seconds |
| Power Cycling |
Automatic restart and sequencing capabilities |
| Alarm Thresholds |
Configurable current and power alarm levels |
| Event Logging |
1000 event log capacity with timestamp |
| User Interface |
Web browser interface and command line interface |
| Configuration |
Local and remote configuration via network |
| Firmware Updates |
Remote firmware upgrade capability |
| Integration |
Compatible with InfraStruXure Central, StruxureWare |
| Notification |
Email and SNMP trap alerts |
| Load Sequencing |
Configurable power-on delay and sequencing |
| Emergency Shutdown |
All outlets emergency power off capability |
| Redundancy |
Dual network interface support (optional) |
| Time Synchronization |
NTP (Network Time Protocol) support |
| Power Factor |
Unity (1.0) power factor rating |
| Warranty |
2-year comprehensive manufacturer warranty |
Frequently Asked Questions
Q: What makes this a switched power distribution unit?
A: This switched power distribution unit provides individual outlet level control, allowing remote power cycling, load sequencing, and emergency shutdown of connected equipment. Each of the 24 outlets can be independently controlled via network interface, making it ideal for smart power distribution unit applications in data centers and server rooms.
Q: How does the managed power distribution unit monitoring work?
A: The managed power distribution unit features real-time monitoring of voltage, current, and power consumption at both individual outlet and load bank levels. This intelligent power distribution unit provides accurate power measurements with ±1% voltage and current accuracy, enabling precise energy management and capacity planning.
Q: What network management capabilities are included?
A: This APC rack power distribution unit includes comprehensive network management with SNMP v1/v2c/v3 support, HTTP/HTTPS web interface, and Telnet/SSH access. The unit supports email notifications, SNMP traps, and integration with enterprise monitoring systems for complete rack mount power distribution units PDU management.
Q: How does this PDU mount in server racks?
A: The NetShelter Switched Rack PDU features a zero-U vertical mounting design that attaches to the side rails of APC NetShelter enclosures or standard 19-inch racks. This mounting method preserves valuable rack space while providing convenient access to outlets and maintains optimal cable management for data center environments.
APC NetShelter Switched Rack PDU AP7902B with individual outlet switching, power monitoring, and network management for data center power control.
