This APC rack power distribution unit is perfect for data center operators, IT professionals, and server room managers who need metered power distribution unit capabilities with real-time power monitoring. Our solution delivers:
-
Metered rack power distribution unit technology that provides precise power consumption tracking
-
2U power distribution unit design maximizing rack space efficiency
-
30 amp power distribution unit capacity for high-density server applications
-
APC power distribution unit reliability backed by Schneider Electric engineering
Key Features
-
Real-time power metering for comprehensive energy monitoring and management
-

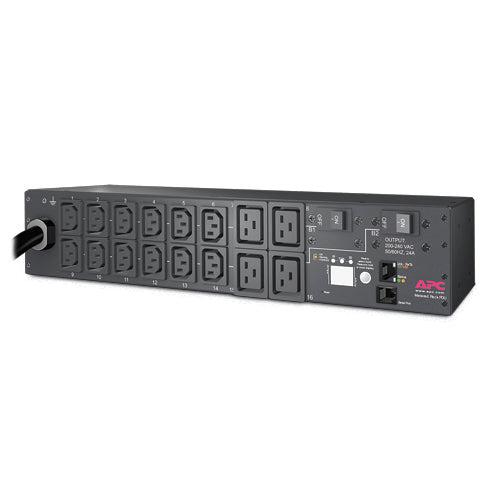

Mixed outlet configuration with 12 C13 and 4 C19 outlets for versatile equipment support
- Compact 2U rack mount form factor for space-efficient installations
-
30A capacity at 208V supporting high-density server and networking equipment
-
Digital display showing current, voltage, and power consumption data
-
NEMA L6-30P input plug for secure high-current connections
-
Zero U vertical mounting option for maximum rack space utilization
- Built-in circuit breaker protection with manual reset capability
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
AP7811B |
| Type |
Rack PDU Metered |
| Power Rating |
30A, Single Phase, 208V |
| Form Factor |
2U Rack Mount |
| Outlet Configuration |
12 x C13, 4 x C19 |
| Input Connection |
NEMA L6-30P |
| Display |
Digital LED display |
| Metering |
Current, Voltage, Power (kW) |
| Protection |
30A circuit breaker |
| Mounting Options |
2U horizontal, 0U vertical |
| Compatible Systems |
Servers, networking equipment, storage systems |
Frequently Asked Questions
Q: What power monitoring capabilities does the AP7811B provide?
A: This metered power distribution unit provides real-time monitoring of input current, voltage, and power consumption (kW) through its digital LED display, enabling precise power management and capacity planning.
Q: How does the mixed outlet configuration benefit server deployments?
A: The combination of 12 C13 and 4 C19 outlets accommodates both standard servers (C13) and high-power equipment like blade chassis and large switches (C19), providing maximum flexibility in a single PDU.
Q: Can this PDU be mounted vertically to save rack space?
A: Yes, this 2U power distribution unit supports both horizontal 2U rack mounting and zero-U vertical mounting options, allowing you to choose the configuration that best optimizes your rack space utilization.
Q: What makes this PDU suitable for high-density data center applications?
A: The 30 amp power distribution unit capacity at 208V delivers up to 6.2kW of power, making it ideal for high-density server racks while the metering capability helps prevent circuit overloads and optimize power distribution.
APC AP7811B metered rack PDU. 2U, 30A capacity with 12 C13 + 4 C19 outlets, real-time power monitoring for data center applications.
