APC AIR DISTRIBUTION UNIT 2U RM 115V 60HZ. Weight: 300 g. Package dimensions (WxDxH): 298 x 514 x 152 mm, Package weight: 1.18 kg. Dimensions (WxDxH): 292 x 498 x 44 mm

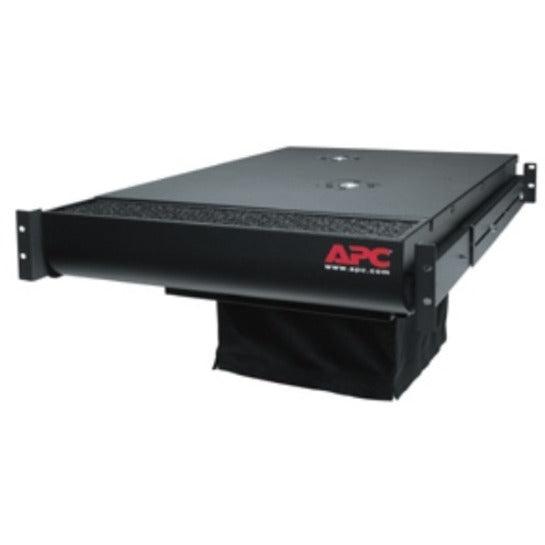

The first product to distribute conditioned air directly into the enclosure. The Rack Air Distribution Unit is a 2U fan unit that works with an existing precision air conditioning system to deliver cool air to the equipment contained in a rack enclosure. The Rack Air Distribution Unit connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment.
The Rack Air Distribution Unit minimizes temperature differences between the top and bottom of the enclosure. It also prevents hot exhaust air from recirculating to the inlet of the enclosure.
The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Model
ACF001
Product Name
ACF001 Airflow Cooling System
Product Type
Airflow Cooling System
UPC
731304120742
Physical Characteristics
Color Family
Black
Product Color
Black
Height
3.5"
Width
16.6"
Depth
29"
Weight (Approximate)
41.09 lb
Miscellaneous
Package Contents
ACF001 Airflow Cooling System
Rack Mounting brackets
User Manual
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
