Description
- 500W Continuous Power - Guaranteed Continuous Power from Antec
- 80 PLUS GOLD certified - Up to 92% efficient, to reduce your electricity bill
- Antec Quality 5-year warranty
- 120mm Silent Fan - High-quality fan with long lifetime
- 99% + 12V - Output for maximum CPU & GPU support
- CircuitShield - Full suite of protection management
- LLC + DC to DC Design - Design with a synchronous rectification based on a DC-DC topology
- 100% Japanese Heavy-Duty Caps

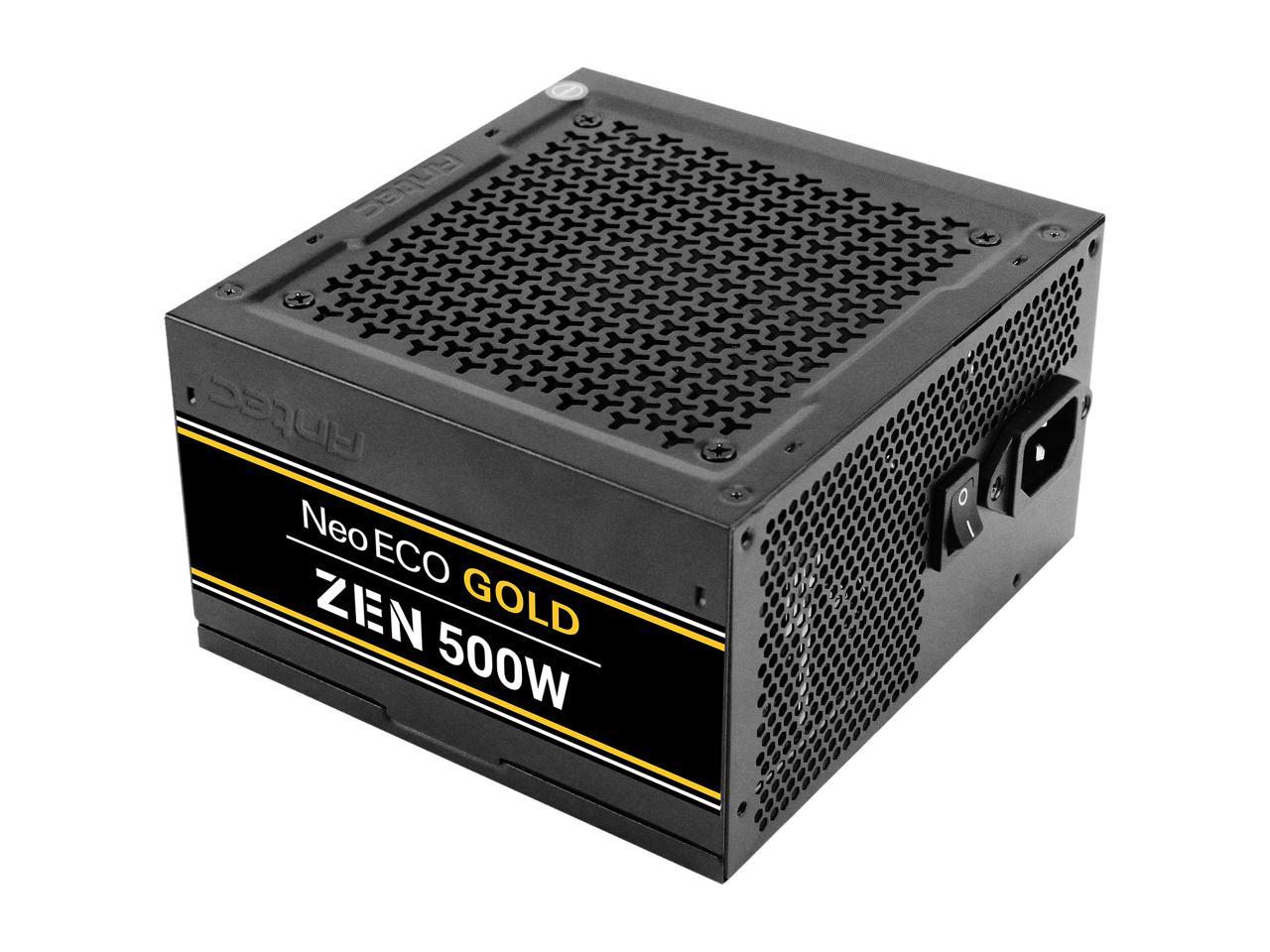

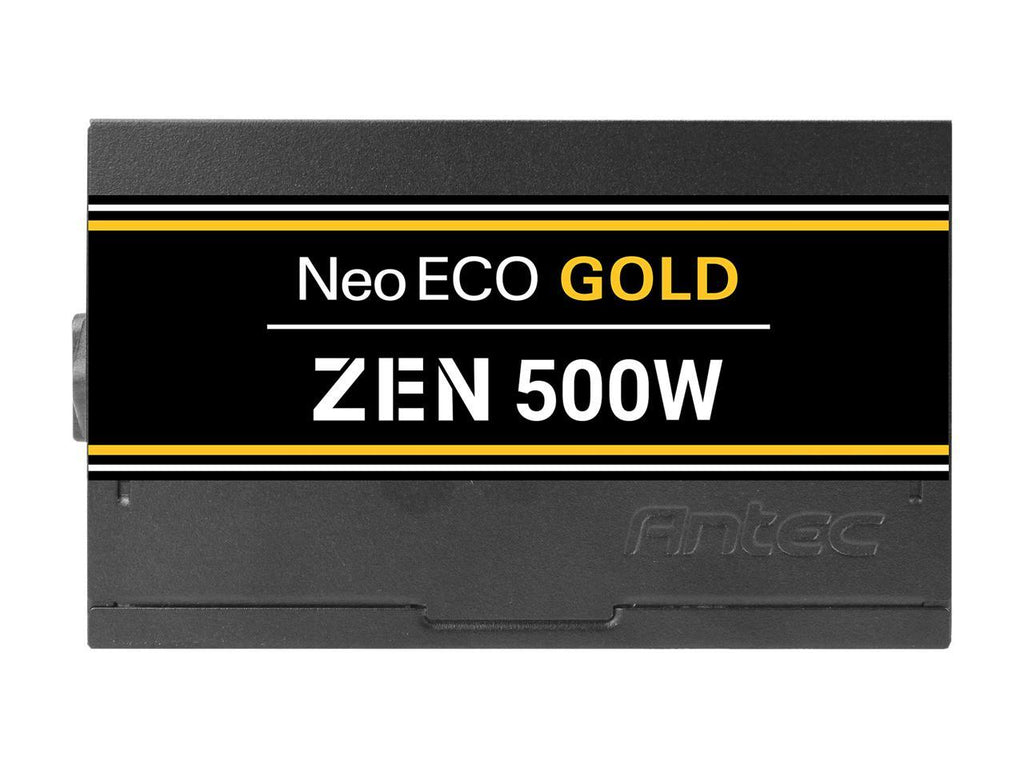

The new NeoECO Gold ZEN series features high performance with an 80 PLUS Gold rating, achieving up to 92% efficiency and gives you savings unheard of from other power supplies.
- 500W Continuous Power™ - Guaranteed of Continuous Power™ from Antec
- 80 PLUS® Gold certified-Up to 92% efficient, to reduce your electricity bill
- AQ5 - Antec Quality 5-year warranty

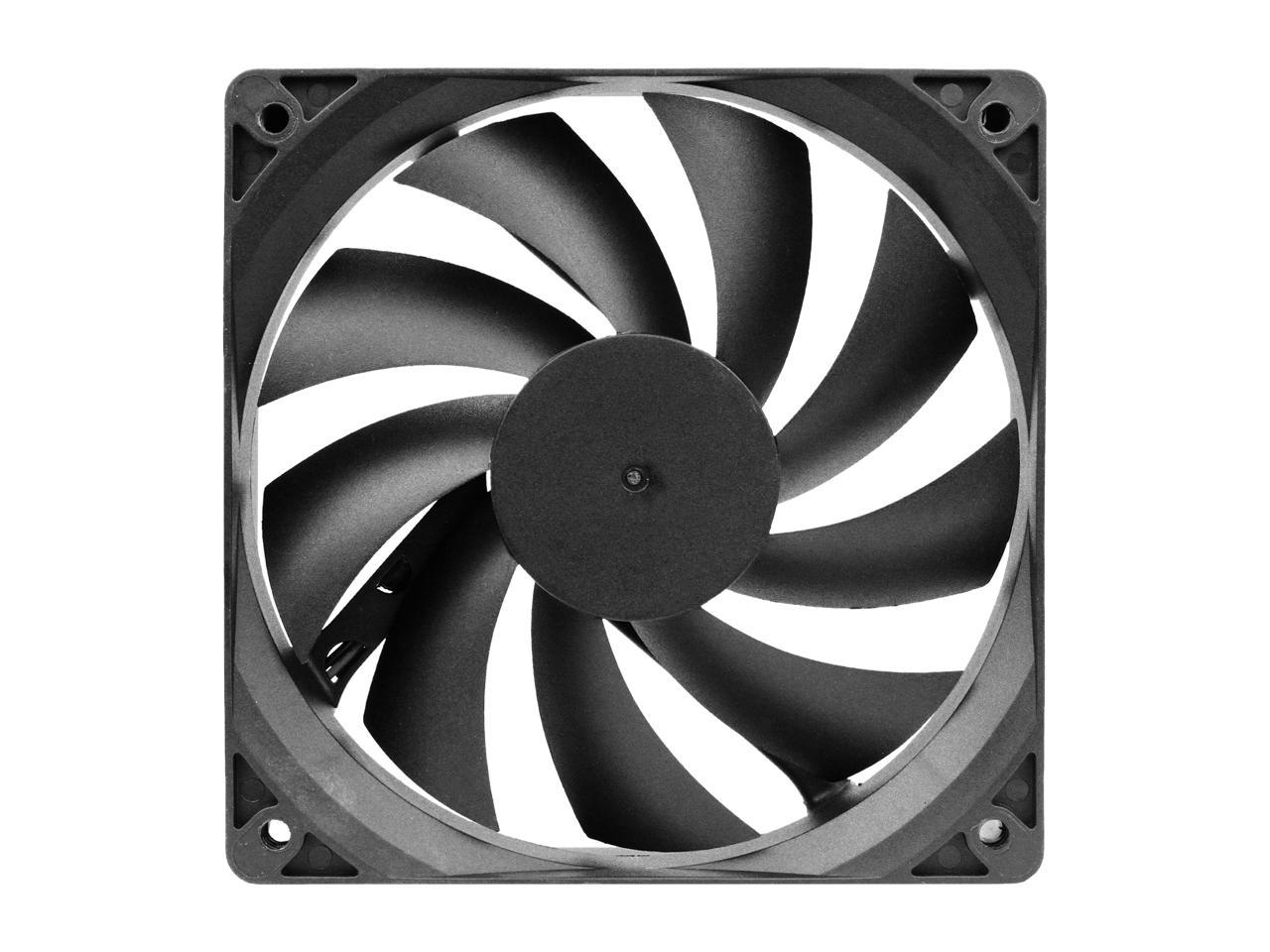

- 120 mm Silence - Whisper-quiet high-quality fan with long lifetime
- 99% +12V - Output for maximum CPU & GPU support

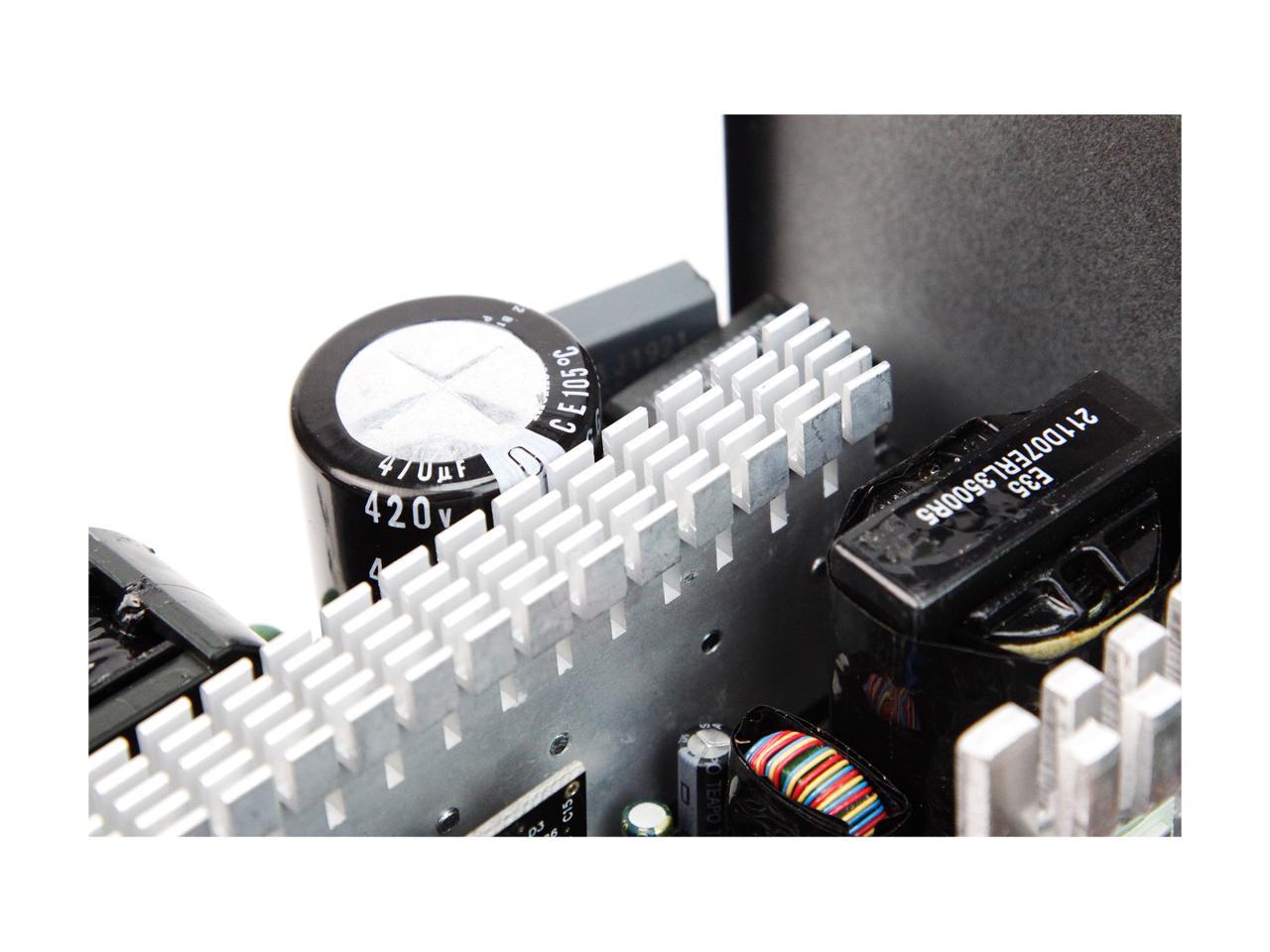

- Japanese Heavy-Duty - High-performance capacitors ensure DC stability and regulation

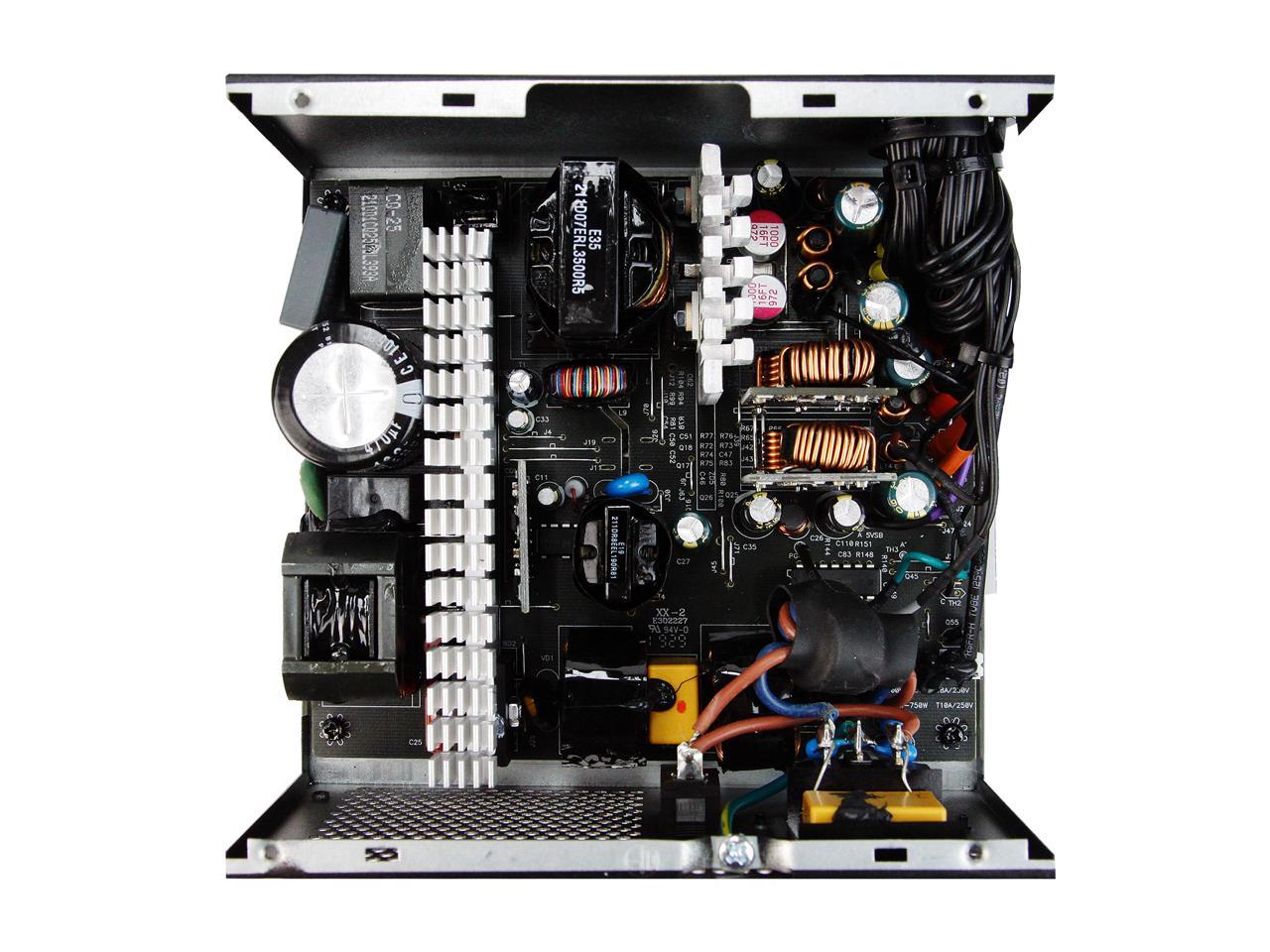

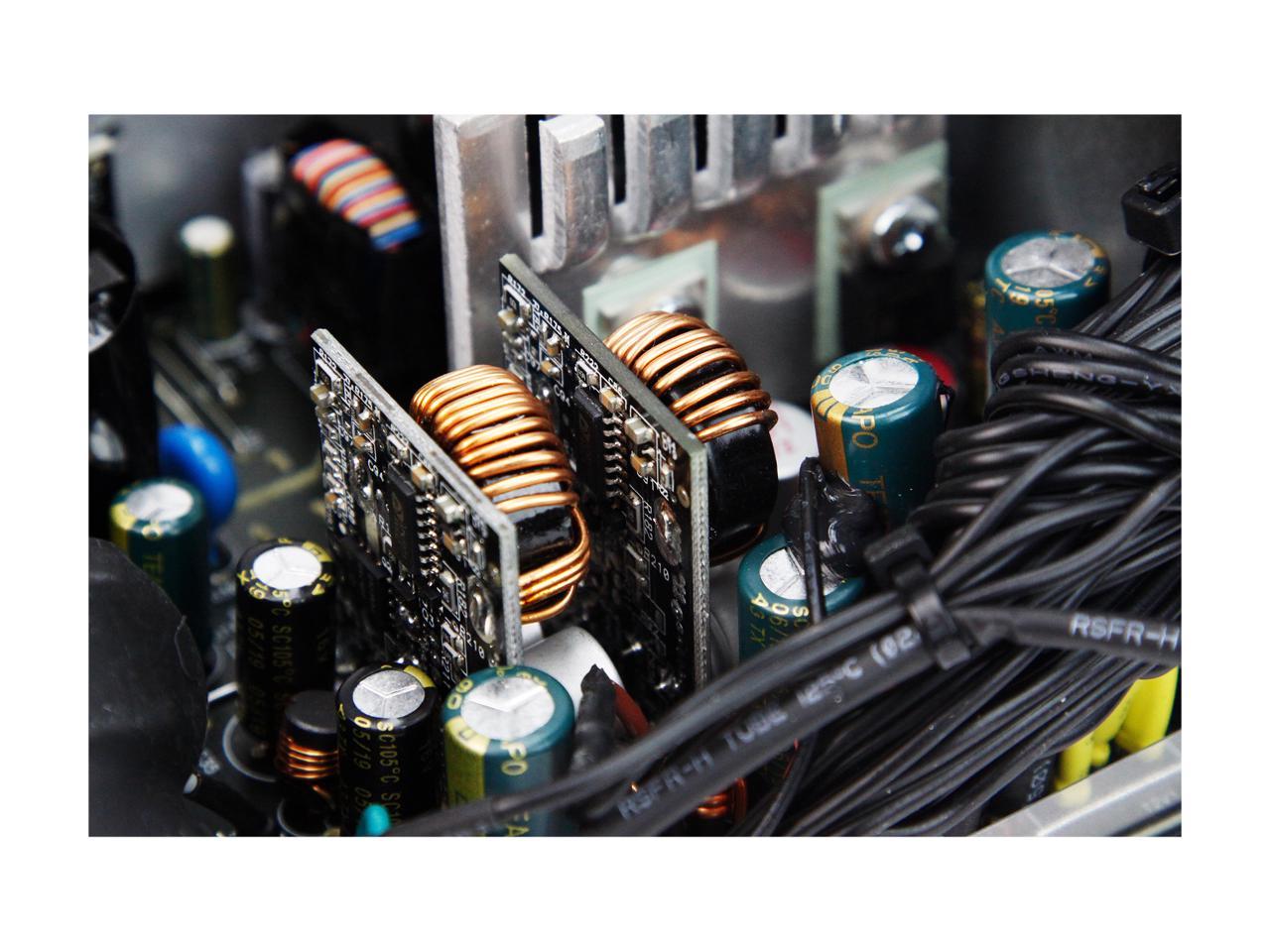

- Half-Bridge LLC design with a synchronous rectification based on a DC-DC topology
- 2 x PCI-E connectors for multiple GPU support
- ATX12V 2.4 - Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- CircuitShield™ - Full suite of industrial grade protections: OCP/OVP/UVP/SCP/OPP/NLO
Specifications
| Type | ATX 12V 2.4 |
| Dimension | 140(L) x 150(W) x 86(H) mm |
| Input Voltage | 100~240 VAC |
| Input Current | 6A-3A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up To 92% |
| Protection | OCP/OVP/UVP/SCP/OPP/NLO |
| Output Capacity | 500W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/CCC/BSMI/FCC/KC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Gold |

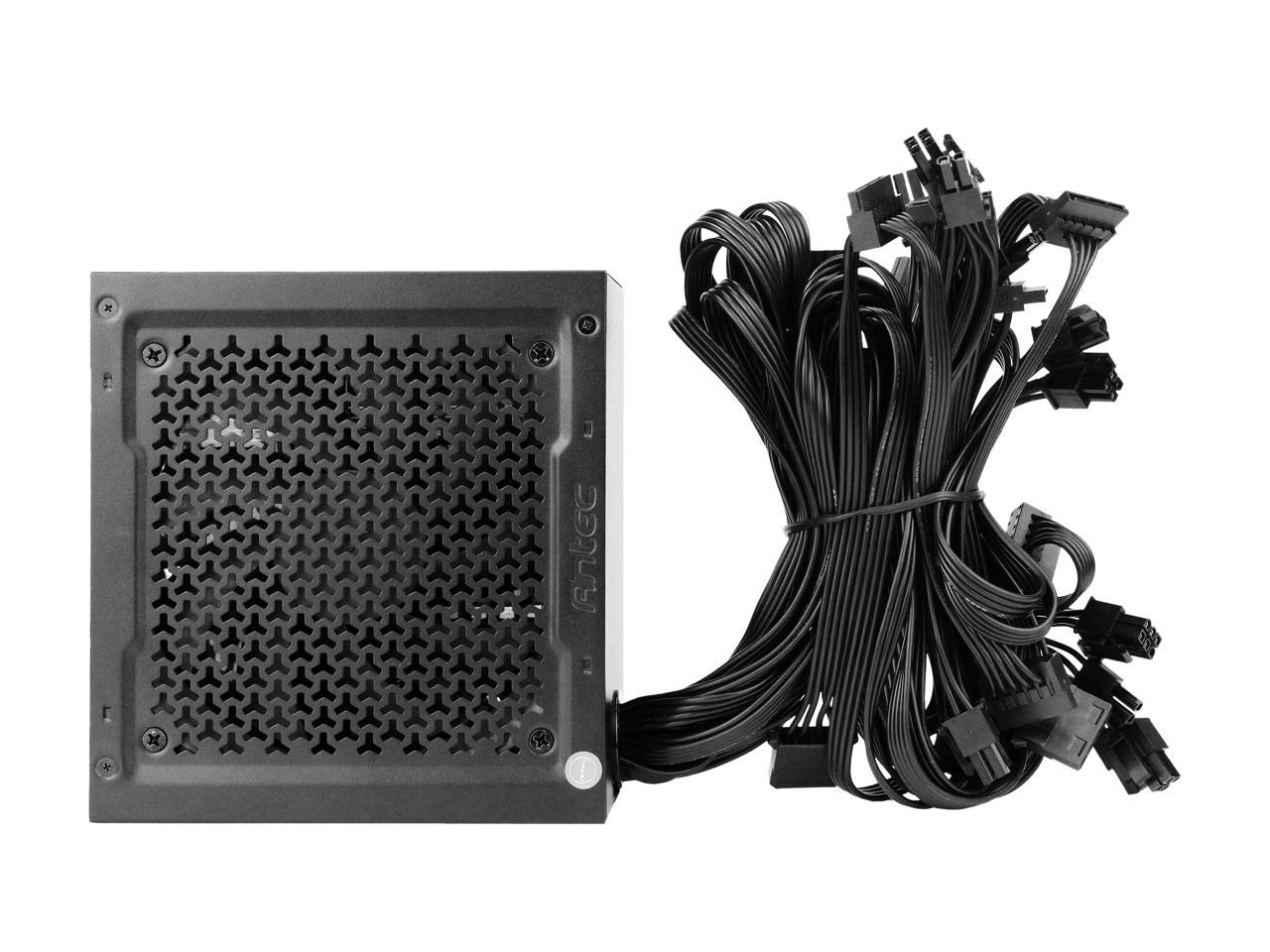

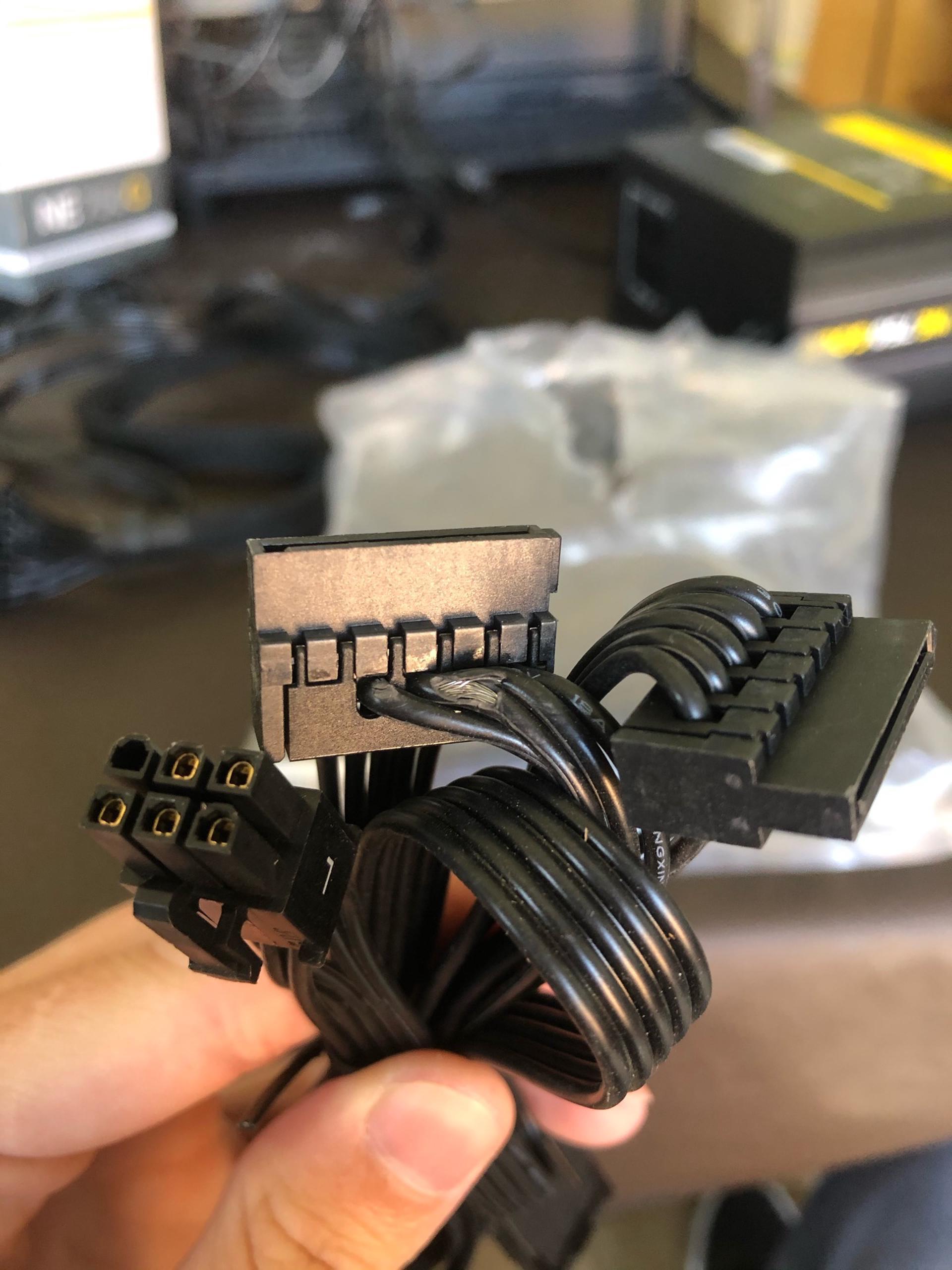

| Connector | 1x MB 24(20+4) Pin |
| 1x 8(4+4) Pin ATX 12V / EPS 12V | |
| 2x 8(6+2) Pin PCI-E | |
| 6x SATA | |
| 2x Molex | |
| Net Weight | 1.68kg |
| Gross Weight | 2.05kg |
| Warranty | 5 Years |
| UPC# | 0-761345-11674-9 NE500G ZEN 0-761345-11675-6 NE500G ZEN AU 0-761345-11676-3 NE500G ZEN EC 0-761345-11677-0 NE500G ZEN GB 0-761345-11678-7 NE500G ZEN JP |
