Mfr Part Number: HCG650 GOLD
-
Features:
- Guaranteed 650W of Continuous power from Antec
- 100% Modular - Improves airflow and reduces clutter
- 80 PLUS GOLD certified-Up to 92% efficient, to reduce your electricity bill
- PhaseWave Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 120mm FDB Silence - Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager - An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V-output for maximum CPU&GPU support
- CircuitShield-Full suite of industrial grade protections - OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation&low ripple&low ripp&noise to maximize your system's performance
- 28(18+10)pin MBU socket-For possible future MBU connectors
- ATX12V 2.4 - Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- Compact size 140mm depth power supply is the best choice for compact ATX chassis
-
Maximum Power: 650 W
-
Input:
-
Voltage: 100 - 240 VAC 10%
-
Current: 9A - 4.5 A
-
Frequency Range: 50 - 60 Hz
-
Type: ATX12V 2.4
-
Power Factor Correction: Active PFC (>0.9 typical)
-
Output: +3.3V @ 20A, +5V @ 20A, +12V @ 54A, -12V @ 0.3A, +5Vsb @ 3.0A
-
Efficiency: 92% Typically
-

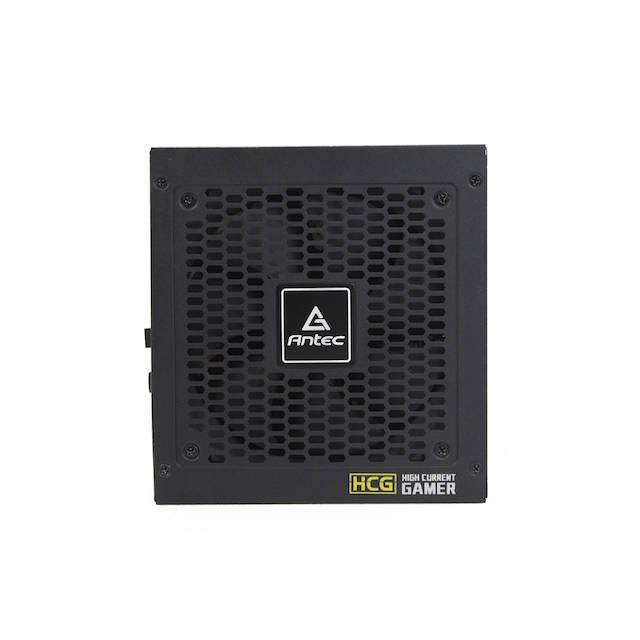

Fan: 120mm FDB Fan
-

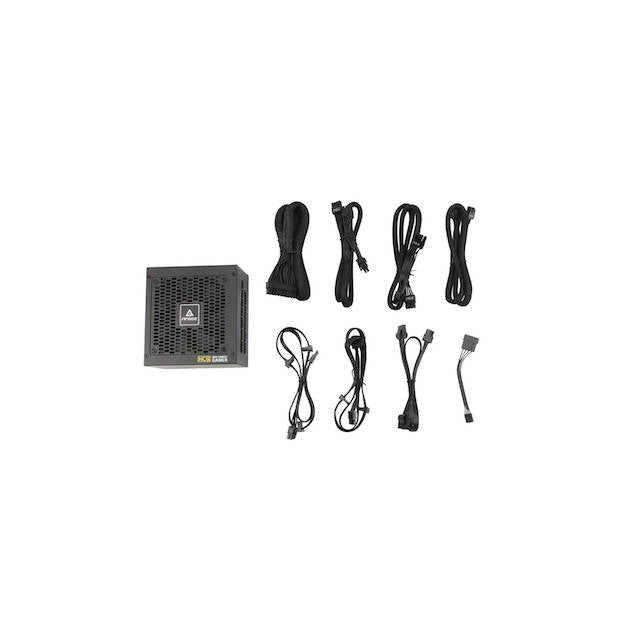

Connectors: 1x 24(20+4)pin Main Power Connector, 1x 8(4+4)pin EPS 12V Connector, 4x 8(6+2)pin PCI-Express Connectors, 8x SATA Connectors, 3x Molex Connectors, 1x FDD Connector
-
Regulatory: cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR
-
Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
-
Weight: 2.04 kg
