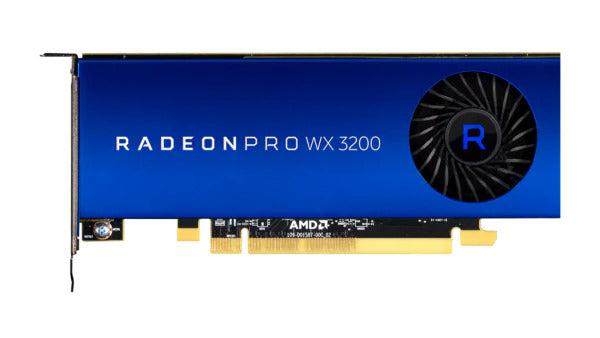

The AMD Radeon Pro WX 3200 is perfect for professionals in CAD design, media editing, and engineering simulation who need reliable workstation graphics performance in space-constrained systems. Our best low profile graphics card delivers:
-
Dedicated graphics card performance with 4GB GDDR5 memory for professional workloads
-
PC graphics card certified for CAD applications and engineering simulation software
-
Graphics card for video editing with hardware-accelerated media processing
-
Low profile design compatible with compact workstations and SFF systems
Key Features
-
4GB 128-bit GDDR5 memory providing ample bandwidth for professional applications
-
PCIe 3.0 x16 interface ensuring maximum compatibility with modern workstations
- Optimized for low profile form factor fitting standard and compact chassis
- Consistent workstation graphics performance with ISV certifications
-
Multi-display support driving up to 4 monitors simultaneously
-
Radeon Pro Software providing professional-grade driver stability and optimization
Technical Specifications
| Manufacturer |
AMD |
| Model Number |
100-506115 |
| Type |
Professional Workstation Graphics Card |
| Memory |
4GB 128-bit GDDR5 |
| Memory Bandwidth |
96 GB/s |
| Interface |
PCIe 3.0 x16 (x8 electrical) |
| Form Factor |
Low profile, single slot design |
| Stream Processors |
640 unified shaders |
| Display Outputs |
4x Mini DisplayPort 1.4 |
| Maximum Displays |
4 simultaneous displays up to 4K resolution |
| Power Consumption |
50W TDP (no external power required) |
| Cooling |
Single-fan active cooling solution |
| Software |
Radeon Pro Software for Enterprise |
| Certifications |
ISV certified for CAD, DCC, and simulation applications |
Frequently Asked Questions
Q: What professional applications is the AMD Radeon Pro WX 3200 optimized for?
A: This workstation graphics card is ISV-certified for AutoCAD, SolidWorks, Inventor, Adobe Creative Suite, and engineering simulation software. Perfect for CAD design workflows and media editing requiring professional stability and performance.
Q: Will this low profile graphics card fit in my compact workstation?
A: Yes, the single-slot low profile design fits standard and small form factor chassis. Includes both full-height and low-profile brackets for maximum compatibility with space-constrained professional systems.
Q: How many displays can this graphics card support simultaneously?
A: The card supports up to 4 displays via Mini DisplayPort 1.4 outputs, enabling resolutions up to 4K (3840x2160) per display — ideal for multi-monitor professional workstations and trading desks.
Q: Does this require external power connectors?
A: No external power required. The 50W TDP design draws power entirely from the PCIe slot, simplifying installation and ensuring compatibility with systems having limited PSU capacity or available power connectors.
AMD Radeon Pro WX 3200 4GB GDDR5 low profile graphics card for professional workstations. Supports 4 displays, CAD applications, and media editing.
