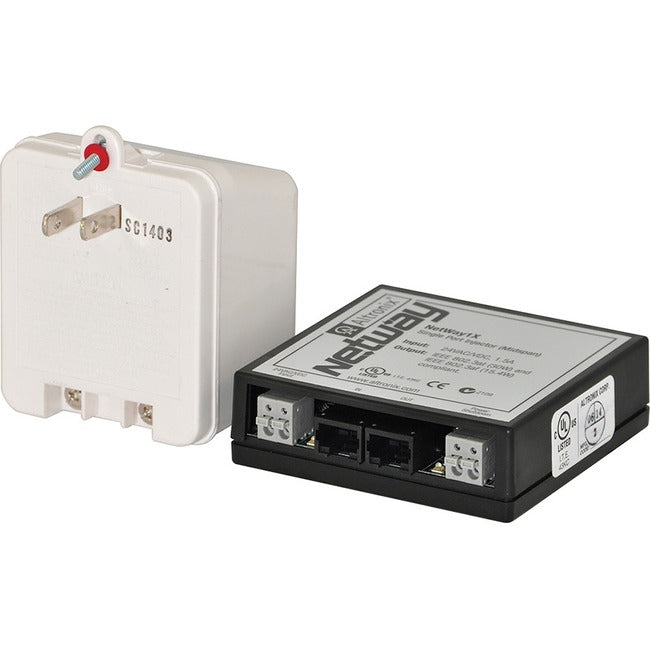

Altronix NetWay1XP Power over Ethernet Injector
NetWay1X is a single port midspan PoE/PoE+ compliant power injector which provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m (328 ft.) from NetWay1X. A NetWayXTX repeater module can be utilized to extend the distance an additional100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on device port requirement. NetWay1X is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
- UL and cUL listed, CE approved.
- Includes 24VAC/50VA Plug-in transformer.
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- PoE shutdown feature. Compact insulated housing.
- One PoE/PoE+ compliant port rated @ 30W max.
- Single Port Midspan PoE/PoE+ Injector Kit.
Product Type: PoE Injector
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Certifications & Standards:
- IEEE 802.3at
- IEEE 802.3af
- UL
- cULus
- CE
Brand Name: Altronix
Compatibility: IP Cameras
Manufacturer: Altronix Corporation
Product Model: NetWay1XP
Product Name: NetWay1XP Power over Ethernet Injector
Product Line: NetWay
Manufacturer Part Number: NETWAY1XP
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Package Contents:
- NetWay1XP Power over Ethernet Injector
- 1 x TP2440 Plug-in Transformer
Limited Warranty: Lifetime
Weight (Approximate): 1.50 lb
