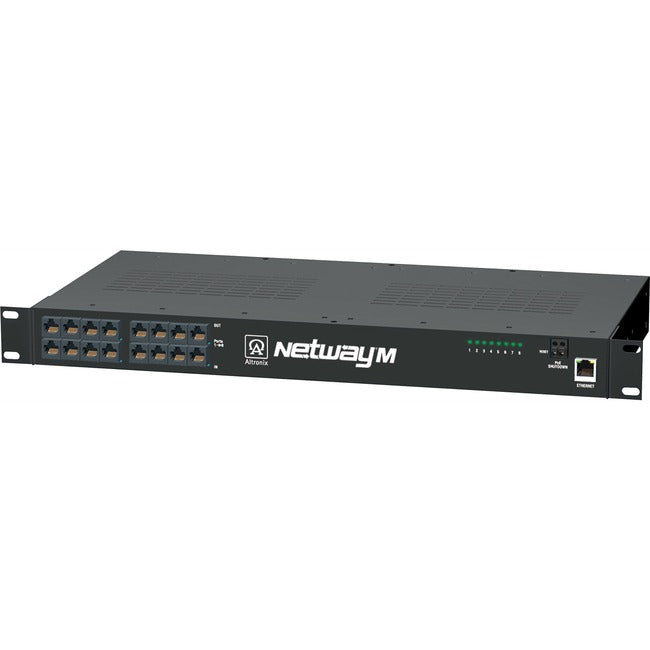

Altronix NetWay NETWAY8M Power over Ethernet Injector Hub
he NetWay8M Managed Midspans provide power and pass data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m (328 ft.) from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on camera/device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 adapters.
- UL and cUL listed, CE approved.
- 1U EIA 19" Rack Chassis.
- PoE shutdown selectable by port, Ethernet port facilitates programming and status monitoring via laptop or LAN.
- 8 Port Managed Midspan.
- Each port provides PoE or PoE+. Total power 150W.
Product Type: PoE Injector Hub
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Certifications & Standards:
- UL
- CUL
- CE
- IEEE 802.3af compliant
- IEEE 802.3at compliant
Brand Name: Altronix
Compatibility:
- Fixed Cameras
- PTZ IP Cameras
Manufacturer: Altronix Corporation
Product Model: NETWAY8M
Product Name: NetWay NETWAY8M Power over Ethernet Injector Hub
Product Line: NetWay
Manufacturer Part Number: NETWAY8M
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Package Contents:
- NetWay NETWAY8M Power over Ethernet Injector Hub
- 2 x Mounting Brackets
- 6 x Flat Head Screws (For Mounting Brackets)
- 4 x Rubber Pads
Limited Warranty: Lifetime
Weight (Approximate): 9.40 lb
