Altronix IP and PoE+ over Extended Distance CAT5e or UTP Solution

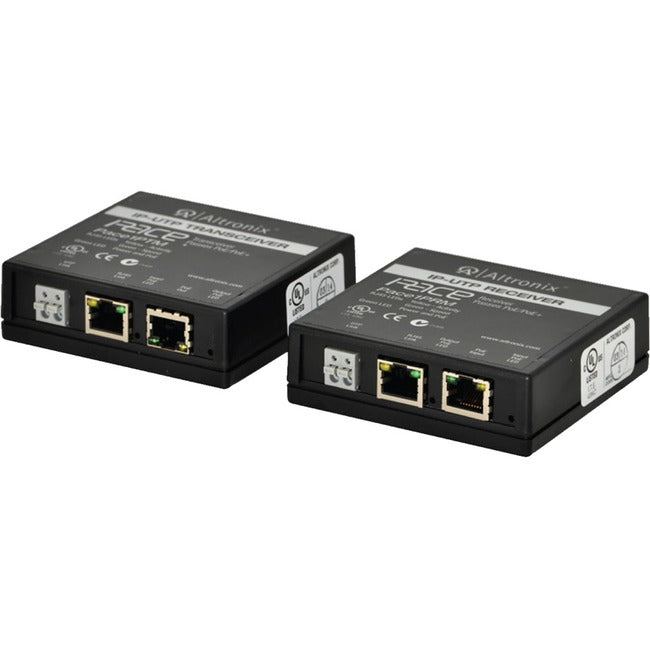

Pace1PRMT is a long range Ethernet adapter kit which transmits data at 100mbps full duplex and power via a single twisted pair (UTP) or Cat5e or higher cable in a PoE(+) compliant format. The Pace1PRM receiver is powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable.
Applications:
- Extend Network link distance in an industrial environment over 700m
- Retrofit digital IP cameras in an analog CCTV CAT5e wired installations.
- Works with Megapixel, HD720, HD1080 and VGA (SD) cameras.
- Lifetime Warranty / Made in the U.S.A
- UL Listed in the U.S. and Canada
- CE Approved
- C-Tick Compliant
- Retrofit digital IP cameras in an analog CCTV CAT5e wired installations
- Extends Network link distance in an industrial environment
- Works with Megapixel, HD720, HD1080 & VGA (SD) cameras
- Auto detection and protection of legacy non-PoE cameras/devices
- Retrofit digital IP cameras in an analog CCTV installation
- Throughput is rated to pass 100Mbps
- Eliminates the costs and labor associated with installing new network cabling
- IEEE 802.3af (15W) and IEEE 802.3at (30W)
Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Certifications & Standards:
Brand Name: Altronix
Length: 3.5"
Manufacturer: Altronix Corporation
Product Name: IP and PoE+ over Extended Distance CAT5e or UTP Solution
Product Line: Pace
Manufacturer Part Number: PACE1PRMT
Manufacturer Website Address: http://www.altronix.com
Package Contents:
- 1 x Pace1PTM Transceiver
- 1 x Pace1PRM Receiver
Limited Warranty: Lifetime
