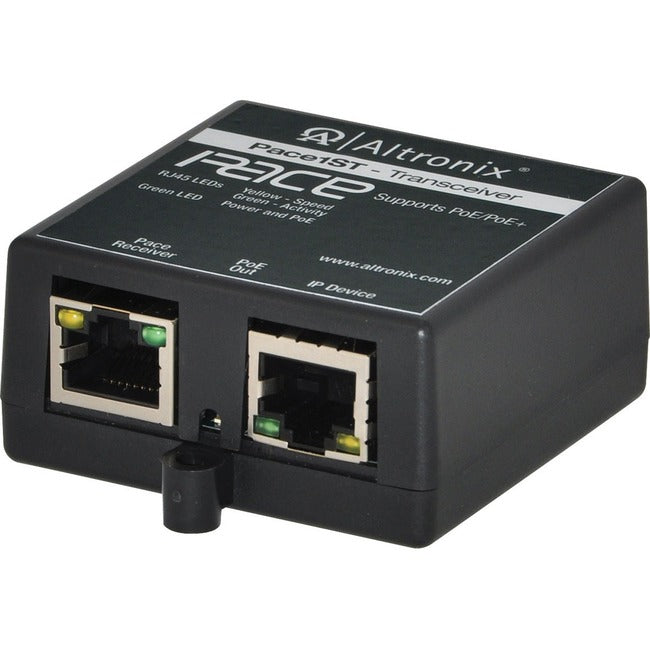

Altronix IP and PoE+ over Extended Distance CAT5e Hardened Mini Transceiver
Pace1ST is a long range Ethernet transceiver designed for use with Pace1PRM, Pace4PRM, Pace8PRM and Pace16PRM receivers. They transmit data at 100Mbps full duplex and power via Cat5e or higher cable in a PoE(+) compliant format. The Pace1ST will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. The receiver passes the PoE(+) compliant power over the cable to the Pace1ST transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m.
- UL Listed in the U.S. and Canada.
- CE Approved.
- Retrofit digital IP cameras in an analog CCTV CAT5e wired installations.
- Extends Network link distance in an industrial environment.
- Works with Megapixel, HD720, HD1080 & VGA (SD) cameras.
- Auto detection and protection of legacy non-PoE cameras/devices.
- Retrofit digital IP cameras in an analog CCTV installation.
- Eliminates the costs and labor associated with installing new network cabling.
- IEEE 802.3af (15W) and IEEE 802.3at (30W).
- Throughput is rated to pass 100Mbps at distances up to 500m.
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Model: Pace1ST
Product Name: IP and PoE+ over Extended Distance CAT5e Hardened Mini Transceiver
Manufacturer Part Number: PACE1ST
Manufacturer Website Address: http://www.altronix.com
Limited Warranty: Lifetime
Weight (Approximate): 3.52 oz
Country Of Origin: United States
