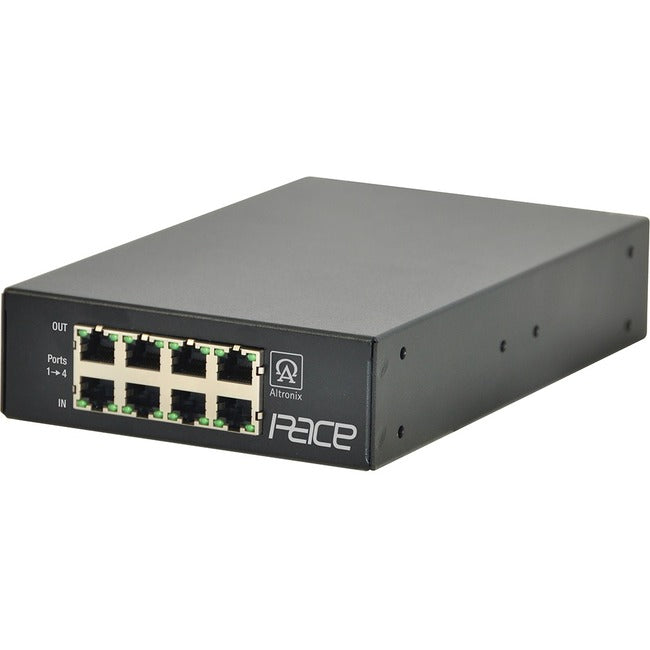

Altronix Four (4) Port IP and PoE+ Over Extended Distance CAT5e Receiver
Pace4PRM is a long range Ethernet receiver that transmits data at 100mbps full duplex and power via CAT5e or higher cable in a PoE(+) compliant format. The Pace4PRM receiver is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at the distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over structured cable. Applications:
- Extend Network link distance in an industrial environment.
- Works with Megapixel, HD720, HD1080 and VGA (SD) cameras.
- UL/cUL Listed. CE Approved.
- 100Mbps full duplex.
- Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
- Four (4) port Ethernet over Extended Distance CAT5e Receiver.
- Transmits IP video/data over CAT5 up to 500m.
Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Receiver Weight (Approximate): 1.35 lb
Country Of Origin: United States
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Name: Four (4) Port IP and PoE+ Over Extended Distance CAT5e Receiver
Manufacturer Part Number: PACE4PRM
Manufacturer Website Address: http://www.altronix.com
Limited Warranty: Lifetime
Additional Information: Input:
- Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
Ethernet: - Connectivity: four (4) RJ45 ports, auto-crossover.
- Wire type: 4-pair CAT5e or 1 pair UTP structured cable.
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace4PRM to Pace1PTM by PoE protocol.
- Throughput is rated to pass 100mbps of data at distances up to 450m. With proper headend equipment this supports Megapixel, HD720, HD1080.
CAT5e or Higher: - Four (4) RJ45 output ports.
- Distance: up to 500m @ 100mbps.
LED Indicators: - Green (RJ45) IP Link status, 100Base-T/active.
Environmental: - Operating Temperature:
- -4° F to 120.2° F (-20° C to +49° C).
- Storage Temperature:
- -22° to 158° F (-30° to +70° C).
- Relative humidity: 20 to 85%, non-condensing.
- Operating Altitude: - 1000 to 6,561.679 ft. (- 304.8 to 2000m).
Functions: - Auto detection and protection of legacy non-PoE cameras/devices.
