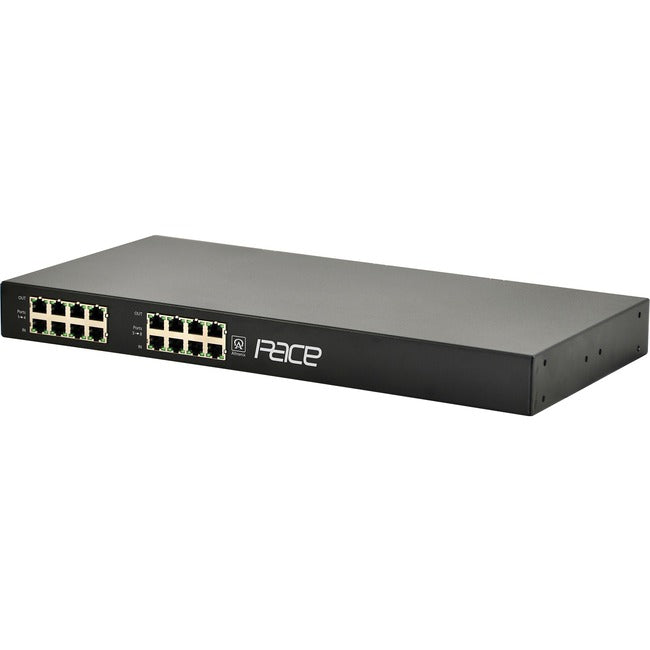

Altronix Eight (8) Port Ip And Poe+ Over Extended Distance Cat5E Receiver

Altronix Eight (8) port IP and PoE+ Over Extended Distance CAT5e Receiver
Pace8PRM is a long range Ethernet receiver that transmits data at 100mbps full duplex and power via CAT5e or higher cable in a PoE(+) compliant format. The Pace8PRM receiver is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at the distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over structured cable. Applications:

• Extend Network link distance in an industrial environment.
• Works with Megapixel, HD720, HD1080 and VGA (SD) cameras.

• UL/cUL Listed. CE Approved.


• 100Mbps full duplex.


• Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).


• Eight (8) port Ethernet over Extended Distance CAT5e Receiver.


• Transmits IP video/data over CAT5 up to 500m.

Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Receiver Weight (Approximate): 5.80 lb
Country Of Origin: United States
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Name: Eight (8) port IP and PoE+ Over Extended Distance CAT5e Receiver
Manufacturer Part Number: PACE8PRM
Manufacturer Website Address: http://www.altronix.com
Limited Warranty: Lifetime
Additional Information: Input:

• Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).

• Connectivity: eight (8) RJ45 ports, auto-crossover.
• Wire type: 4-pair CAT5e or 1 pair UTP structured cable.
• Speed: 10/100BaseT, half/full duplex, auto negotiation.
• PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace8PRM to Pace1PTM by PoE protocol.
• Throughput is rated to pass 100mbps of data at distances up to 450m. With proper headend equipment this supports Megapixel, HD720, HD1080.

• Eight (8) RJ45 output ports.
• Distance: up to 500m @ 100mbps.

• Green (RJ45) IP Link status, 100Base-T/active.

• Operating Temperature:
• -4° F to 120.2° F (-20° C to +49° C).
• Storage Temperature:
• -22° to 158° F (-30° to +70° C).
• Relative humidity: 20 to 85%, non-condensing.
• Operating Altitude: - 1000 to 6,561.679 ft. (- 304.8 to 2000m).

• Auto detection and protection of legacy non-PoE cameras/devices.
