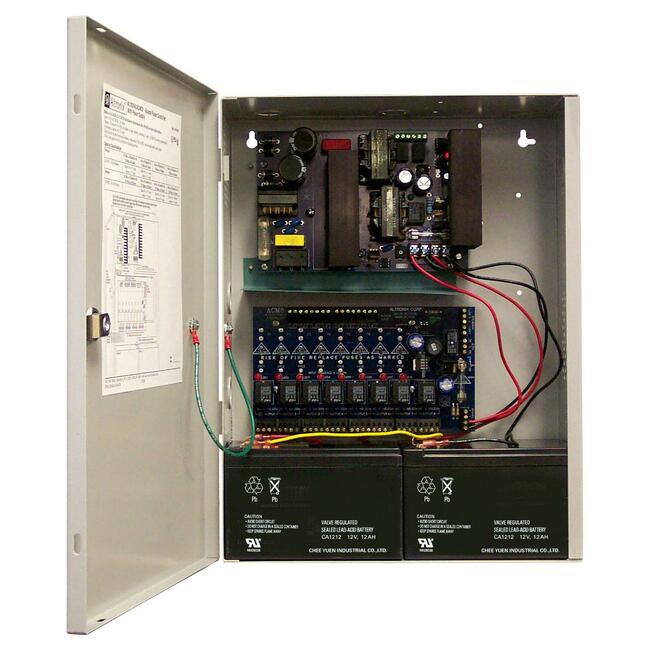

Altronix AL400UL Proprietary Power Supply
Model AL1024ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1024ULACM is a fuse protected version of this unit.
- UL and cUL listed.
- Outputs are individually selectable for Fail-Safe or Fail-Secure operation.
- Fire alarm disconnect is selectable by output.
- Access Power Controller with power supply.
- 8 PTC Class 2 power-limited outputs provide 24VDC @ 10A.
Product Type: Proprietary Power Supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Compatibility:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Form Factor: Enclosure
Manufacturer: Altronix Corporation
Product Model: AL1024ULACMCB
Product Name: AL400UL Proprietary Power Supply
Manufacturer Part Number: AL1024ULACMCB
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 11.75 lb
