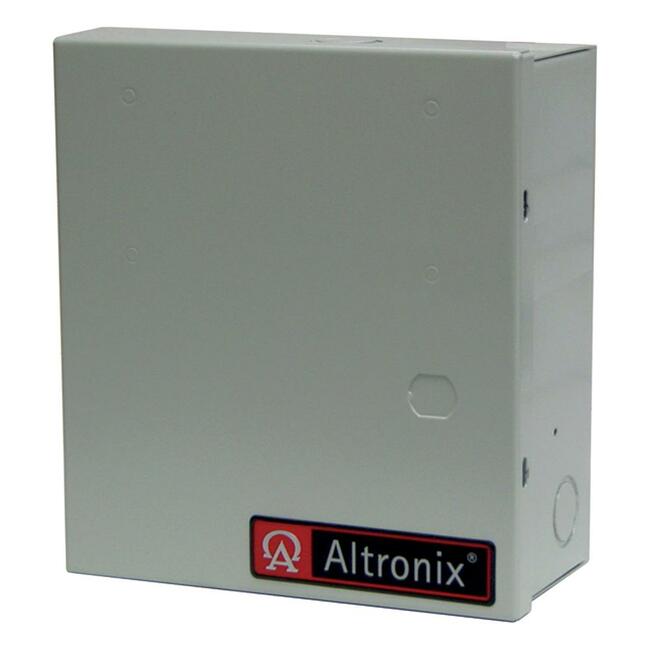

Altronix AL175UL Proprietary Power Supply
AL175UL is a power limited power supply/chargers that will convert 115VAC / 60Hz input, into two individually PTC protected 12VDC or 24VDC output, (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels. It must be installed in accordance with National and Local Electrical Codes and Regulations.
- UL and cUL listed.
- 2 Output Power Supply/Charger w/Fire Alarm Disconnect.
- 12VDC or 24VDC @ 1.75A, Class 2 power limited outputs.
Product Type: Proprietary Power Supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Compatibility:
- Access Control System
- Signal Equipment
Form Factor: Enclosure
Manufacturer: Altronix Corporation
Product Model: AL175UL
Product Name: AL175UL Proprietary Power Supply
Manufacturer Part Number: AL175UL
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 5.60 lb
