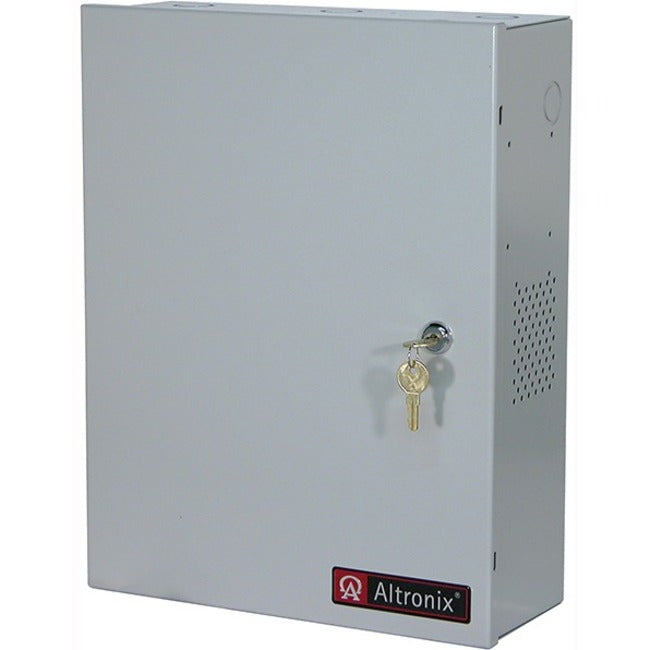

Altronix AL1012ULACM Proprietary Power Supply
Model AL1012ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1012ULACMCB is a PTC protected version of this unit.
- UL and cUL listed.
- Fire alarm disconnect is selectable by output.
- 8 fused non power-limited outputs provide 12VDC @ 10A.
- Outputs are individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts.
- Access Power Controller with power supply.
Product Type: Proprietary Power Supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Compatibility:
- Card Reader
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Form Factor: Wall Mount
Manufacturer: Altronix Corporation
Product Model: AL1012ULACM
Product Name: AL1012ULACM Proprietary Power Supply
Manufacturer Part Number: AL1012ULACM
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 10.20 lb
