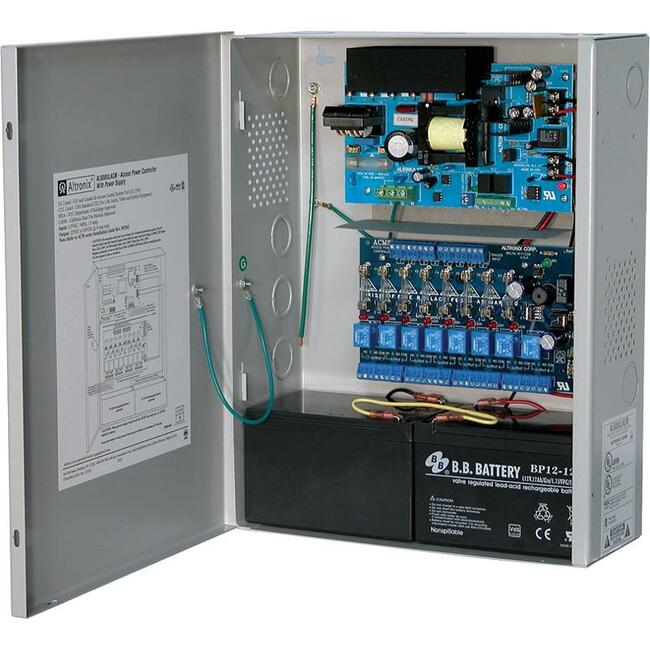

Altronix ACM AL600ULACM Proprietary Power Supply
Model AL600ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACMCB is a PTC protected version of this unit.
- UL and cUL listed.
- Fire alarm disconnect is selectable by output.
- Outputs are individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts.
- Access Power Controller with power supply.
- 8 fused power limited outputs provide 12VDC or 24VDC @ 6A.
Product Type: Proprietary Power Supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Product Series: ACM
Brand Name: Altronix
Compatibility:
Access Power Controller
Form Factor: Internal
Manufacturer: Altronix Corporation
Product Model: AL600ULACM
Product Name: ACM AL600ULACM Proprietary Power Supply
Manufacturer Part Number: AL600ULACM
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 11.60 lb
