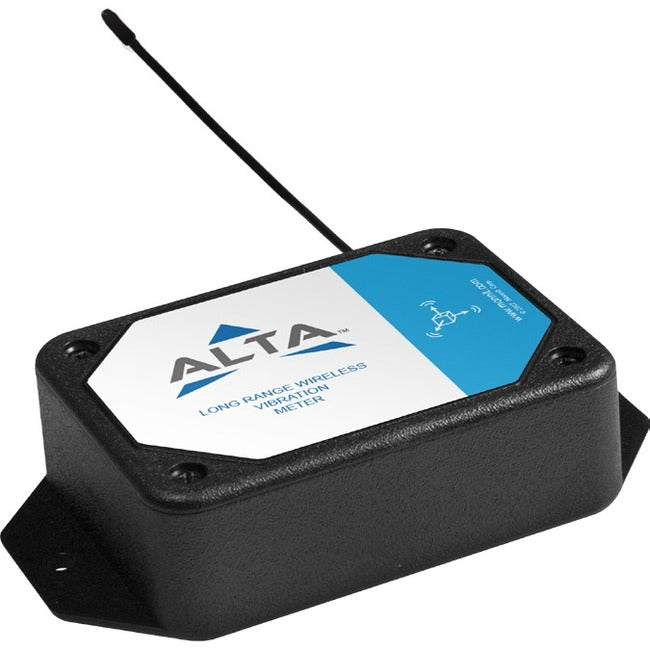

Monnit ALTA Wireless Accelerometer - Vibration Meter - Commercial AA Battery Powered
ALTA Vibration Meters use an accelerometer to measure g-force on 3 axis and then determine speed and frequency. They can be set to only capture when a vibration occurs and sleep when no vibrations are present, or they can be set to measure at a given assessment interval regardless of whether a vibration has occurred. If set to always measure, the sensitivity can be further adjusted to filter out noise. The Vibration Meter will also report the duty cycle, or how long the sensor was measuring vibrations throughout the heartbeat.
ALTA - Leading Enterprise Grade "Internet of Things" Solutions
ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.
Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.
- Coin cell sensors typically last 3+ years.
- AA and Industrial sensors typically last up to 10+ years.
ALTA products employ Monnit's new Encrypt-RF™ Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.
Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.
Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.
The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.8 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.
Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.
Product Features
- Reports data as speed (mm/s) and frequency (Hz) on all three axes, and how long the sensor was measuring during the interval.
- Adjustable measurement methods: Peak acceleration RMS, peak velocity RMS, and true RMS.
- Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email.
Product Type: Wireless Accelerometer Vibration Meter
Product Material: ABS
Country Of Origin: United States
Brand Name: Monnit
Manufacturer: Monnit Corporation
Product Name: ALTA Wireless Accelerometer - Vibration Meter - Commercial AA Battery Powered
Product Line: ALTA
Application/Usage: Vibration Monitoring
Manufacturer Part Number: MNS2-9-W2-AC-VM
Manufacturer Website Address: http://www.monnit.com
Package Contents:
- ALTA Wireless Accelerometer - Vibration Meter - Commercial AA Battery Powered
- 2 x 1.5 V AA sized batteries
