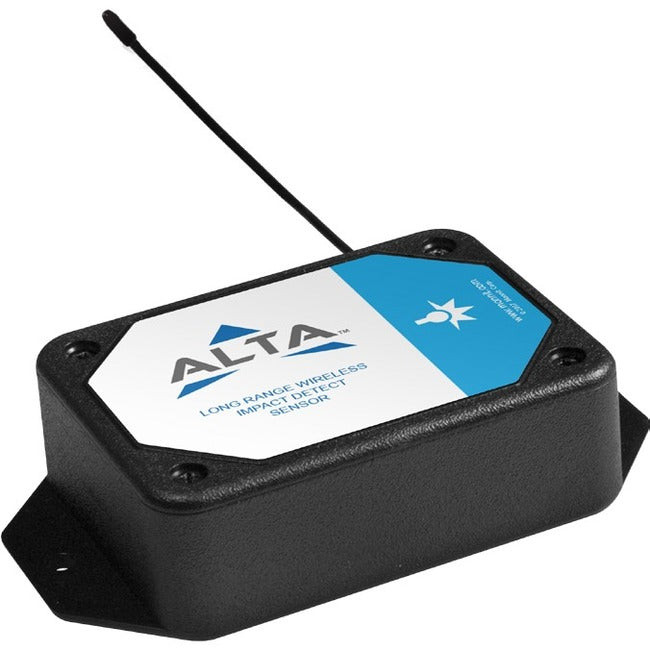

Monnit ALTA Accelerometer - Impact Detect - Commercial AA Battery Powered
ALTA wireless accelerometers can be used in a host of applications where knowing impact, vibration, inclination, etc. is required.
The wireless accelerometer - Impact Detection sensor activates when g-forces are exceeded by a user defined threshold - up to 8 g-force. The user can key in the desired threshold for the g-force trigger. This sensor has two operation modes that can be also selected by the user: High Performance and Low Power. High Performance has an output data rate of 800 Hz with the High Pass Filter cutoff at 16 Hz while the Low Power has an output data rate of 12.5 Hz with the High Pass Filter cutoff at 0.25 Hz.
ALTA - Leading Enterprise Grade "Internet of Things" Solutions
ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.
Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.
- Coin cell sensors typically last 3+ years.
- AA and Industrial sensors typically last up to 10+ years.
ALTA products employ Monnit's new Encrypt-RF™ Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.
Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.
Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.
The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.8 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.
Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.
Product Type: Wireless Accelerometer Impact Detector
Product Material: ABS
Country Of Origin: United States
Brand Name: Monnit
Manufacturer: Monnit Corporation
Product Name: ALTA Accelerometer - Impact Detect - Commercial AA Battery Powered
Product Line: ALTA
Application/Usage: Impact Load Sensing
Manufacturer Part Number: MNS2-9-W2-AC-IM
Manufacturer Website Address: http://www.monnit.com
Package Contents:
- ALTA Accelerometer - Impact Detect - Commercial AA Battery Powered
- Mounting Hardware
- 2 x AA Batteries
