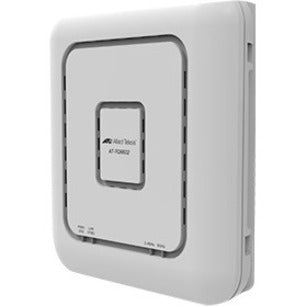

Allied Telesis TQ6602 Dual Band 802.11ax 2.35 Gbit/s Wireless Access Point
The innovative TQ6602 is the world's first Wi-Fi 6 AP to support multichannel, single-channel1 (Channel Blanket) and hybrid operation (the simultaneous use of multi-channel and Channel Blanket). This powerful solution combines maximum performance and seamless roaming to enable the most flexible wireless networks available, and the best possible user experience.
The TQ6602 has one 2.4GHz and one 5GHz Wi-Fi6 (802.11ax) radio, and supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. A comprehensive feature-set provides a superior solution for Enterprise businesses.
The TQ6602 in standalone mode can be managed using its intuitive webbased interface. For medium and larger installations, Autonomous Wave Control (AWC) provides centralized management, and regularly analyses the wireless network, automatically optimizing AP settings to reduce interference and minimize coverage gaps-all with no user intervention. AWC wireless management is available on our Vista Manager EX network management platform, and from Vista Manager mini running on a number of switch and firewall products.
Flexible deployment options include desktop use, and wall or ceiling mounting. Power can be supplied by Power over Ethernet, or by an optional AC power adapter.
- The TQ6602 supports operation in multi-channel, single-channel1 (Channel Blanket) and hybrid (multi-channel and Channel Blanket) modes, for the most flexible wireless solution available.
- Multi-channel operation provides maximum throughput for high-bandwidth clients, while Channel Blanket operation supports seamless roaming for dynamic environments like warehouses and hospitals, as all APs appear as a single virtual AP.
- Hybrid mode combines the best of both architectures, enabling an innovative wireless solution that maximizes performance for a superior user experience.
- The high throughput of Wi-Fi 6 further increases the performance of hybrid networks in large environments with many clients.
- The TQ6602 supports Wi-Fi6 (802.11ax) bidirectional MU-MIMO. Unlike conventional unidirectional MU-MIMO, this feature enables the AP to transmit and receive data simultaneously from multiple clients at once, to lower latency and improve throughput and performance for end-user wireless devices.
- IEEE 802.11ax Wi-Fi 6 wireless connectivity delivers performance and throughput that is four times faster than 802.11ac devices. In crowded wireless environments, efficient bandwidth distribution is important. Bi-directional Multi-user MIMO technology simultaneously communicates with multiple clients at once, reducing contention and improving capacity and throughput.
- Quality of Service (QoS) on the wireless network optimizes the performance of voice, video, and data applications, as each has different latency, bandwidth and performance requirements. QoS traffic prioritization ensures the timely delivery of these services.
- This feature set facilitates strong encryption, authentication and key management strategies, guaranteeing data and system security. In addition to Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (CCMP), IEEE 802.1X key distribution via RADIUS controls access to the network.
- The TQ6602 supports Virtual AP (VAP) functionality, with the assignment of different SSIDs and security policies for each VAP on the physical device.
- VAPs can be mapped to VLANs for logical network separation and improved throughput. Enable communication by application, function or users.
Product Type: Wireless Access Point
Antenna Form Factor: Internal
Brand Name: Allied Telesis
Form Factor: Ceiling Mountable
Manufacturer: Allied Telesis, Inc
Product Model: TQ6602
Product Name: TQ6602 Hybrid Wi-Fi 6 (802.11ax) Wireless Access Point
Manufacturer Part Number: AT-TQ6602-01
Manufacturer Website Address: http://www.alliedtelesis.com
Weight (Approximate): 3.53 lb
