Description

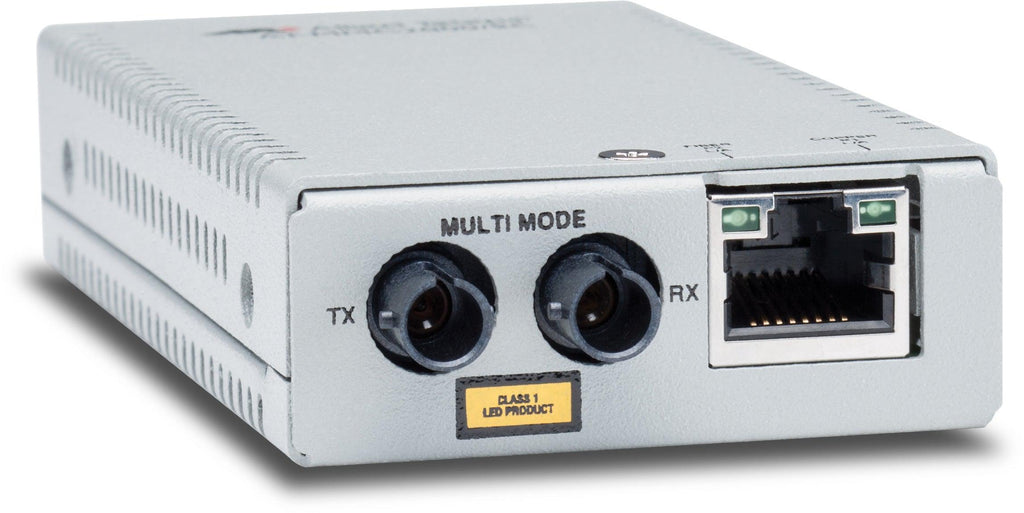

TAA (Federal) 10/100/1000T to 1000SX/ST MM Media & Rate Converter, Multi-region PSU
Allied Telesis AT-MMC2000/ST-960. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T,100Base-TX,1000Base-T, Converter output interface: 1000Base-SX. Fiber optic connector: ST, Connectivity technology: Wired. Maximum transfer distance: 500 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Power, System, Product colour: Grey, Safety: FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI. Input voltage: 12 V, Input current: 0.14 A, Output voltage: 0.14 V
Gigabit Ethernet to Fiber Mini Media and Rate Converter This standalone mini media and rate converter features 10/100/1000T to 1000SX conversion with a multi-mode ST fiber connector and supports from 220 m to 500 m. It is compatible with the MMCR18 rack-mount chassis.
Copper to Fiber Mini Media and Rate Converters Overview The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.
Extend Networks The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).
VLAN Support Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.
Small and Flexible The smaller size and external power supply of the MMC Series allows them to be used almost anywhere.
Smart MissingLink (SML) The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Smart Link Restoration Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.
Power Saving The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.
Link Test The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.
General Information
Manufacturer
Allied Telesis, Inc
Manufacturer Part Number
AT-MMC2000/ST-960
Manufacturer Website Address
http://www.alliedtelesis.com
Brand Name
Allied Telesis
Product Series
MMC2000
Product Model
MMC2000/ST
Product Name
MMC2000/ST Transceiver/Media Converter
Product Type
Transceiver/Media Converter
UPC
767035218625
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Height
0.9"
Width
2.2"
Depth
4"
Weight (Approximate)
6 oz
Miscellaneous
Package Contents
MMC2000/ST Transceiver/Media Converter
AC Power Supply
Environmentally Friendly
Yes
