Allied Telesis At-Mcr12 Network Media Converter

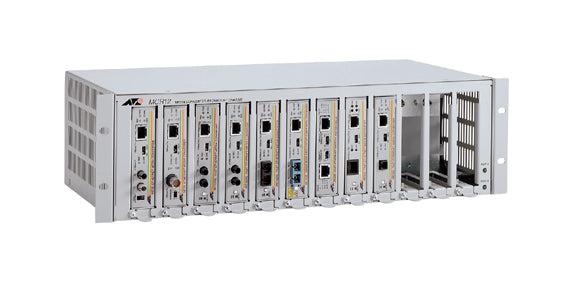

AT-MCR12 Media Conversion Rack-mount Chassis

Allied Telesis AT-MCR12. Safety: UL, CSA, TUV, IEC 825-1, CE, Certification: FCC Class A, IC Class A. Weight: 4.3 kg. Dimensions (WxDxH): 444 x 217 x 132 mm, Power requirements: 100-240 VAC, 50/60 Hz

Media Converter Flexibility
Supporting up to 12 Allied Telesis media converters, the AT-MCR12 enables network managers to use the MC1x family (10Mbps) or MC10x family (100Mbps) media converters in the same chassis.
Power Options
A single internal universal power supply powers the AT-MCR12, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot-swappable power supply to eliminate downtime on the network. The unit saves space in the wiring closet and minimizes the number of power connections required. Single-unit media converters can be removed from the AT-MCR12 and deployed individually in
order to accommodate network modifications. By incorporating a backplane with 12 different power entry modules integrated with the
printed circuit board, power is equally distributed among all media converters whether using one or two power supplies.
Rack-mount Design
Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail. The rack-mount chassis includes two status LEDs on the front panel indicating power status.The top LED is titled PWR A and the
bottom PWR B. The back panel has one LED for power. When a redundant power supply is installed, a second LED is visible.
The AT-MCR12 is configured with one of the following power cords to meet regional requirements for North America, Continental Europe, or the United Kingdom.
Key Features
- Modular use with all standalone Media and Bridging Media Converters.
- Simple installation.
- 12 Slot unit.
- Optional redundant hot-swappable power supply ensures reliability.
- Free technical support.
