Description

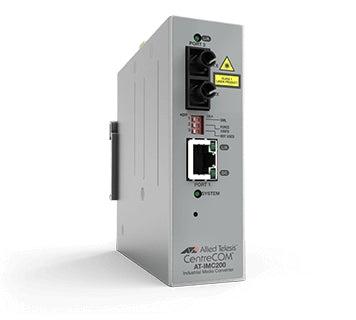

TAA, 10/100TX to 100FX/SC Industrial Temp Fast Ethernet Media Converter
Allied Telesis AT-IMC200T/SC-980. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T,100Base-T,1000Base-T, Converter output interface: 100Base-FX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Tx power (min): -19 dBmW. Product colour: Grey, International Protection (IP) code: IP30, Safety: UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1.... Input voltage: 12 - 48 V
10/100/1000T to 100FX/SC industrial temperature media converter. These converters feature Smart MissingLink™ (SML) and support up to 10K jumbo frames. The IMC200T/SC-980 can be mounted on a DIN-rail or used as a desktop/standalone device and is fanless for silent operation.
Powering remote devices Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML) The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
