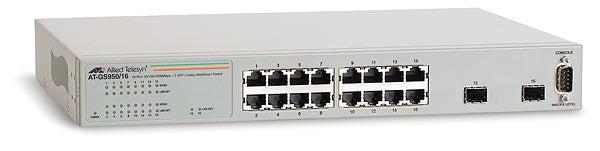

This managed switch is perfect for small to medium businesses and network administrators who need reliable Gigabit Ethernet connectivity with advanced web-based management capabilities. The Allied Telesis AT-GS950/16-10 delivers:
-
16 Gigabit Ethernet ports providing high-speed connectivity for multiple devices
-
Web-based management interface enabling intuitive network configuration and monitoring
-
SFP fiber connectivity with 2 dedicated fiber ports for extended network reach
-
Layer 2 switching features supporting VLANs, QoS, and advanced traffic management
Key Features
-
Smart web management with intuitive browser-based configuration interface
-
VLAN support enabling network segmentation and enhanced security
- Advanced Quality of Service (QoS) for traffic prioritization and bandwidth control
-
Link aggregation supporting port bonding for increased bandwidth
-
Port mirroring capabilities for network monitoring and troubleshooting
- Energy-efficient Green Ethernet technology reducing power consumption
Technical Specifications
| Manufacturer |
Allied Telesis |
| Model Number |
AT-GS950/16-10 |
| Type |
Managed Gigabit Ethernet Switch |
| Port Configuration |
16 x 10/100/1000Base-T + 2 x SFP |
| Management Type |
Web-based Smart Management |
| Switching Capacity |
36 Gbps |
| MAC Address Table |
8K entries |
| VLAN Support |
802.1Q VLAN, up to 256 VLANs |
| Form Factor |
Desktop/Rack-mount 1U |
| Power Consumption |
22W maximum |
| Operating Temperature |
0°C to 50°C |
| Compatible Systems |
Small business networks, enterprise edge, server connections |
Frequently Asked Questions
Q: What management capabilities does this websmart switch offer?
A: The AT-GS950/16-10 features comprehensive web-based management including VLAN configuration, QoS settings, port mirroring, link aggregation, and real-time monitoring through an intuitive browser interface.
Q: How do the SFP ports enhance network connectivity?
A: The 2 SFP fiber ports enable long-distance connections up to several kilometers using fiber optic cables, perfect for connecting remote buildings or extending your network beyond standard copper cable limitations.
Q: What Layer 2 features are supported for network optimization?
A: This Layer 2 managed switch supports IEEE 802.1Q VLANs, Quality of Service (QoS), port-based access control, Spanning Tree Protocol (STP), and link aggregation for advanced network segmentation and traffic management.
Q: Is this switch suitable for small business network deployments?
A: Yes. The 16-port Gigabit Ethernet switch is ideal for small to medium businesses requiring managed switch features without enterprise complexity, offering the perfect balance of performance, management capabilities, and cost-effectiveness.
Allied Telesis AT-GS950/16-10 16-port Gigabit Ethernet websmart switch with SFP ports, web management, and Layer 2 features for business networks.
