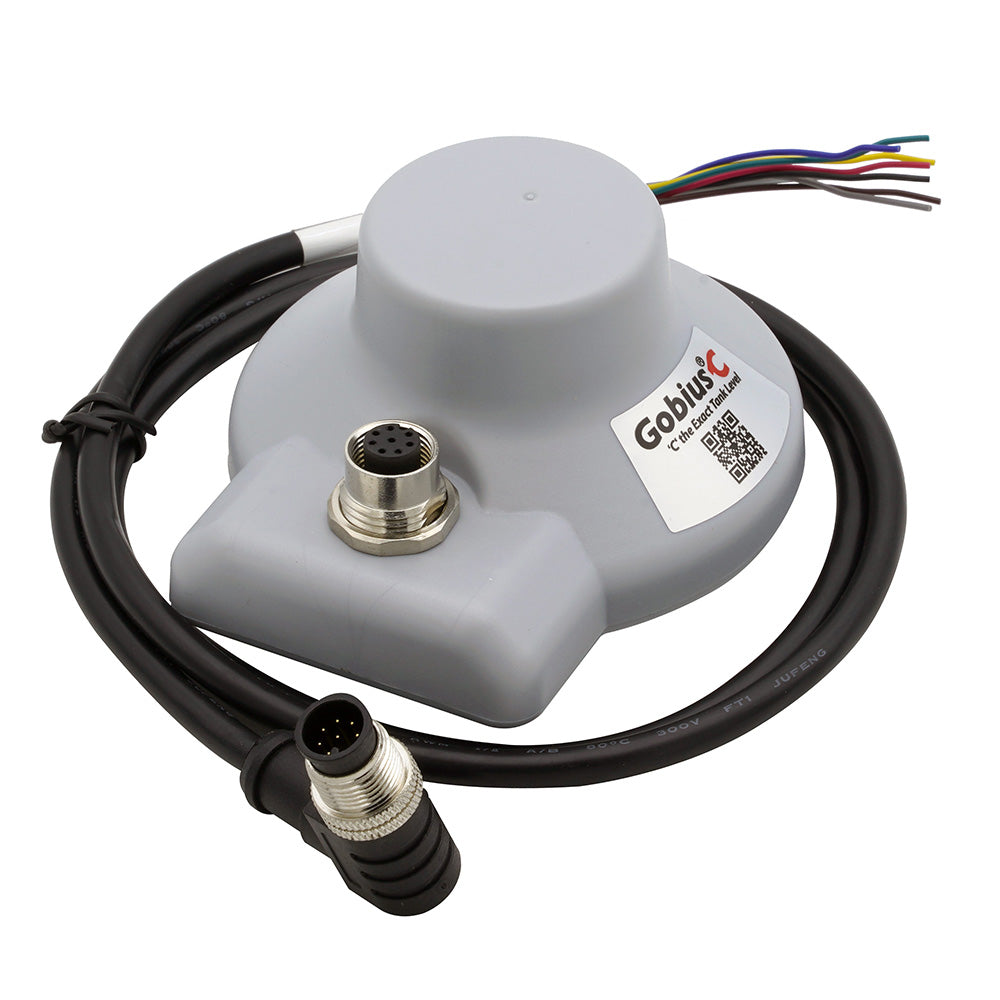

Gobius C External Fluid Level Sensor/Tank Monitor

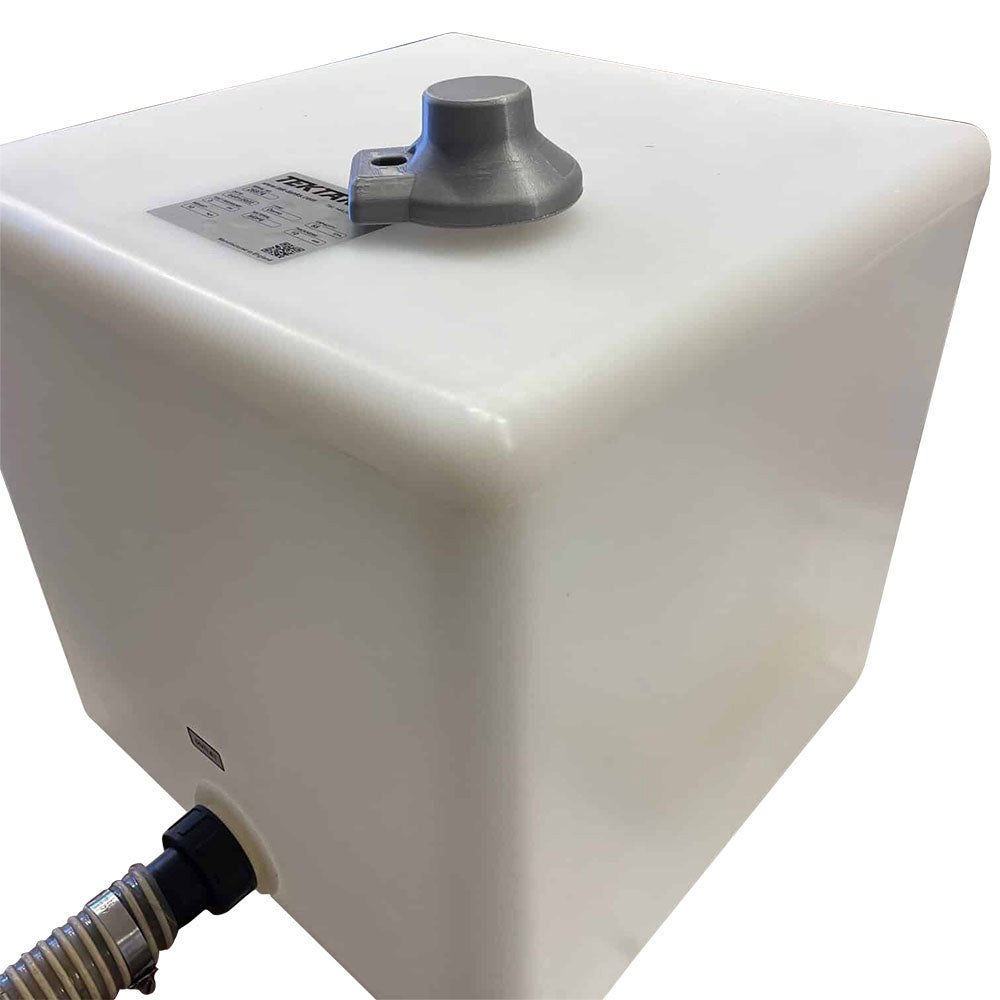

Plug and play installation. No disassembly of the tank is needed. Measures from the top, never a risk of leakage. Complete system, everything included; sensor, cable, 3M cleaning wipe, and an extra 3M sensor tape. Handles voltage of 12-24 Volts. The sensor is mounted in the same simple way as other Gobius products but on the top of the tank. Max. tank depth is 2 meters. Can be connected to control systems and analog instruments such as KUS, VDO, WEMA, and Faria (10-190 Ohm, 240-33 Ohm, 4-20 mA, and 0-5 V). In addition, there is two individual on/off outputs to signal when the tank is empty and full. Installation is done from your phone via Bluetooth. The app is available in English, French, German, Italian, Spanish, and Swedish.
Features:
- Suitable for all types of liquids
- Plug-and-play installation
- All settings are done automatically
- Built-in Tank Calculator
- Built-in wave motion reduction
- No need for removing the tank
- Reading through plastic tank
- No tank wall thickness limit
- Adapted for standard holes in metal tanks (1,25″ SAE 5)
- No cleaning inside the tank is needed
- No maintenance
Measurement Functions:
- Measuring range, 0-2000 mm
- Measuring interval, 1 second
- Resolution: 1 mm
- Accuracy: +/- 2-3 mm
- Tank Geometries:
- Rectangular, Irregular, Vertical Cylindric, Horizontal Cylindric
Specifications:
- The input voltage, 9-28 V DC
- Connector, Female 8 pins
- Two digital outputs (level alarms)
- 4-20 mA (galvanically insulated)
- Outputs, 10-180 & 240-33 Ohm
- Output, 0-5 V
- Sensor LED shows active/measuring
- Input voltage, 9-28 V DC
- Power consumption, 10 mA
- Built-in Bluetooth, version 5.0
- Built-in temperature sensor
- Built-in accelerometer
- Built-in micro radar sensor
- Max voltage: 30 V
- Max current: 500 mA
- Bluetooth turns off
- Sensor Facts:
- Weight, 65 gram
- Dimensions, high 65 mm, width 95 mm
- Sensor height incl adapter metal tank, 75 mm
- Cable length, 1 m
- Connector on the sensor
- Sensor material, ABS
- Color, silver
- Bluetooth, version 5.0
- Waterproof (IP44)
Software:
- App for iOS, Android phones, and Windows PC
- Installation / change / removal
- Correct level calculation, incl (% and liters)
- Bluetooth, version 5.0
- Turn on/off Bluetooth
- Two digital outputs, four states
- Display on the phone
- Built-in test functions
- Built-in support function
