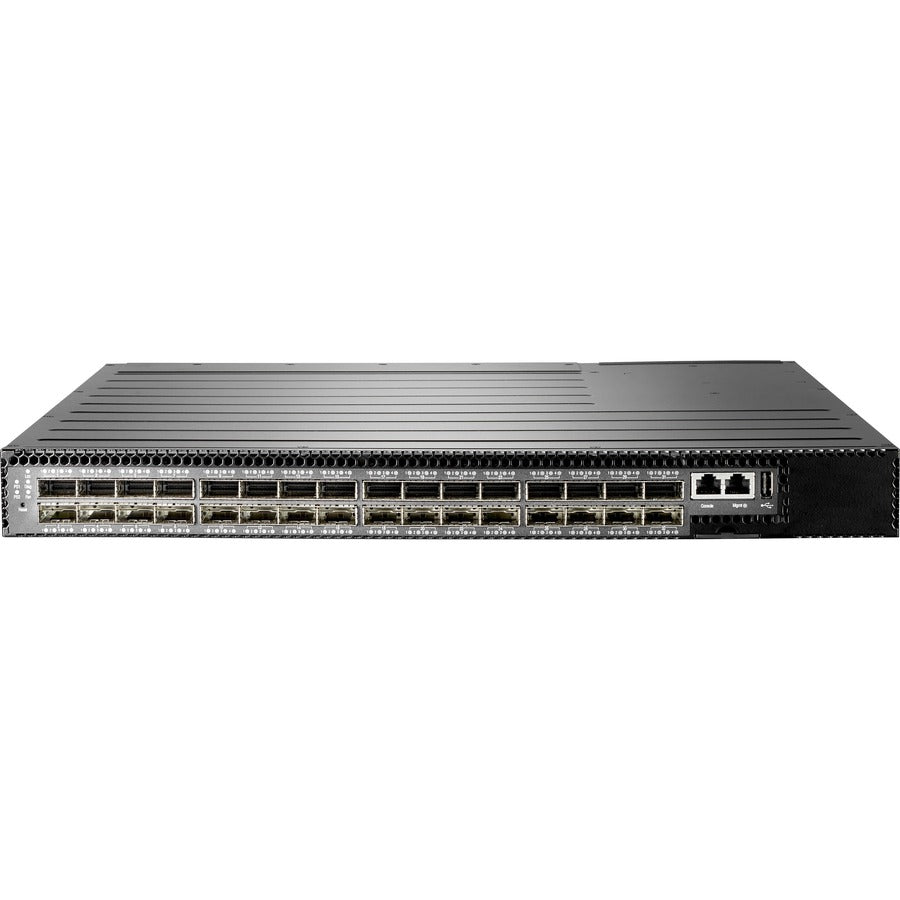

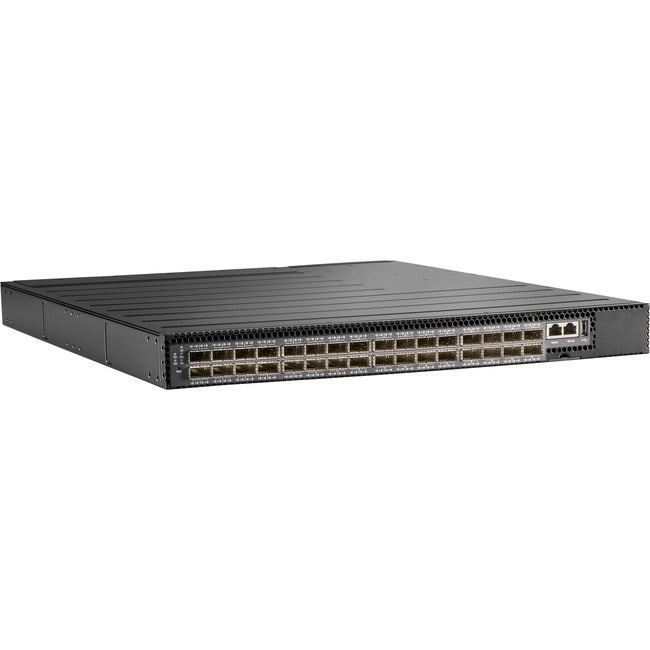

HPE Altoline 6941 32QSFP+ x86 ONIE AC Back-to-Front Switch
The HPE Altoline 6941 Switch Series are an x86-based open-networking, disaggregated family of low-latency 40GbE data center switches in 1U package. Perfect for deployment in web-scale environments as a 10GbE server access or as a 40GbE spine switches. Optimized for data center hot/cold isles deployments with reversible airflow. Hardware support for VXLAN is ideal for deployment in multi-tenancy and overlay environments. Take advantage of the streamlined design and ONIE boot loader to deploy a choice of network operating systems with the freedom to select the management and orchestration tools.
What's new
- High 40GbE port density and low latency for demanding applications.
- ONIE boot loader for choice of network OS and easy installation.
- Intel x86, Open-networking and disaggregated solution for customer choice
- VXLAN for efficient network virtualization overlay solutions.
- 40GbE, redundant fans and power supplies for data center deployments.
Features
Open and Disaggregated Networking for Choice
The HPE Altoline 6941 Switch Series is an open-networking, disaggregated solution that offers customers choice of hardware platforms and network operating systems (NOS).
Includes the Open Network Install Environment (ONIE) loader for easy installation of the network operating system.
You have a choice of network OS including Cumulus Networks Linux NOS.
Offers a choice of management and orchestration tools from growing ecosystem.
Intel x86 CPU subsystem for flexibility of loading 3rd party applications and utilities
Wire Speed of 40GbE for Scalability and Demanding Applications
The HPE Altoline 6941 Switch Series provides high density of 32 x 40GbE fiber ports for high-performance and flexible deployments.
Supports up to 96 x 10GbE links for server scalability with 8 x 40GbE uplinks.
With hardware VXLAN VTEP support the switch works well for multi-tenancy and overlay technologies.
Provides the flexibility for either 10GbE top-of-rack or 40GbE spine deployments.
High-performance Data Center Switching
The HPE Altoline 6941 Switch Series delivers 2.56 Tbps switching capacity for the most demanding applications.
The switch supports up to 1440 MPPS throughput for data intensive environments.
Ultra-low 40 Gbps latency > .6 µs

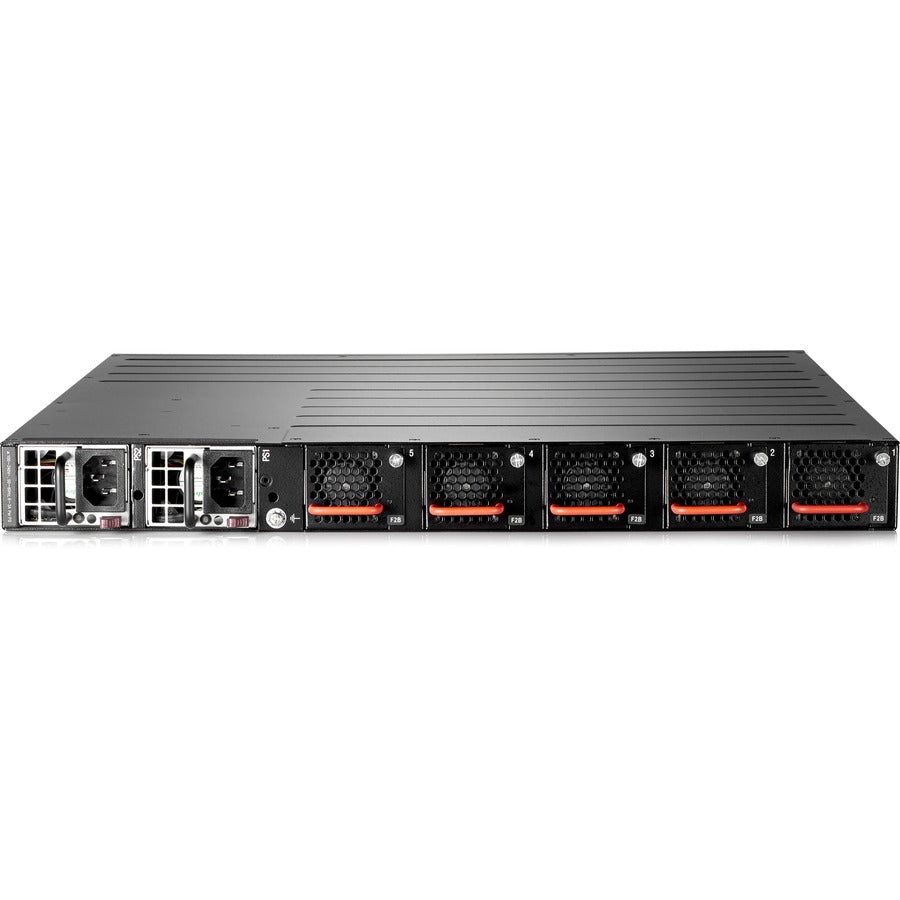

The redundant power supplies and fans combat temperature issues in hot/cold isles deployments.
Simplicity and Lower TCO
The HPE Altoline 6941 Switch Series simplifies switch deployment, management and orchestration with choice of tools from the robust Linux community and ecosystem.
With streamlined hardware and multiple software options the 6941 Switch gives you a better fit for your needs.
With an Intel x86 CPU, you have a choice of common software tools for use in server and networking.
Provides economies of scale that meet the needs of your web-scale data centers.
- Cascade to other network devices through the uplink port to expand your local area network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
Product Type: Ethernet Switch
Compatible Rack Unit: 1U
Product Series: 6941
Brand Name: HPE
Form Factor: Rack-mountable
Manufacturer: Hewlett Packard Enterprise
Product Name: Altoline 6941 32QSFP+ x86 ONIE AC Back-to-Front Switch
Product Line: Altoline
Manufacturer Part Number: JL314A
Manufacturer Website Address: http://www.hpe.com
Weight (Approximate): 21.27 lb
