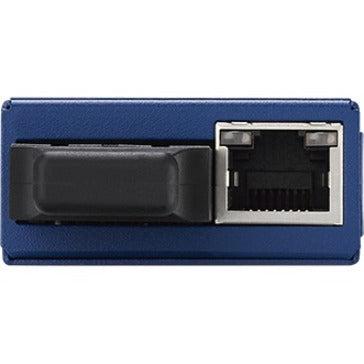

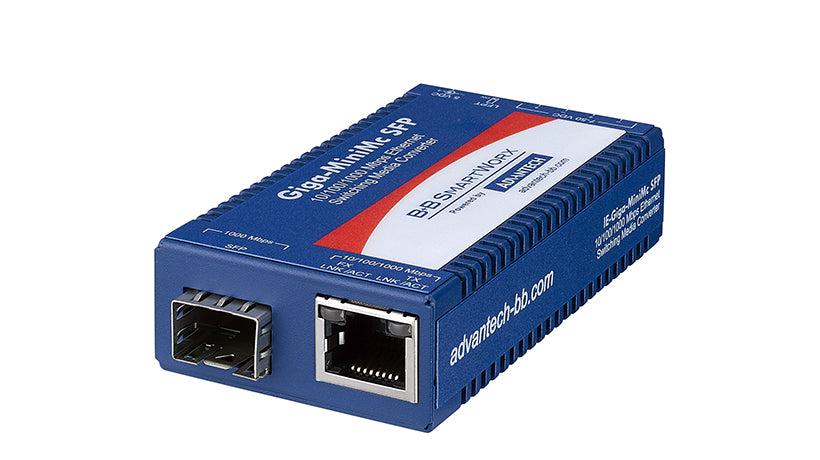

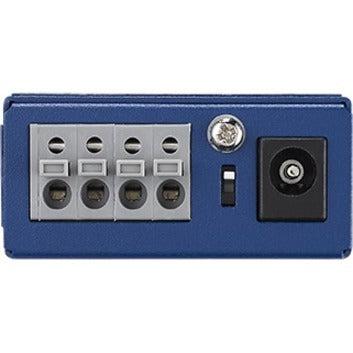

Advantech Imc-370-Sfp-Ps-A Network Media Converter 1000 Mbit/S Blue

Mini Media Converter, 1000Mbps, LFPT, SFP, AC adapter

Advantech IMC-370-SFP-PS-A. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z, Duplex system: Full. Fiber optic connector: SFP, Connectivity technology: Wired. LED indicators: Status, Product colour: Blue, Housing material: Metal. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.3 A. Width: 45.7 mm, Depth: 85.1 mm, Height: 21.1 mm

The IMC-370 series offers the most compact media converters. They can extend the 10, 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370 series serves as a media and data rate converter. The IMC-370I series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces. The IMC-370I supports plug-n-play functionality and auto negotiation and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or be installed in a centralize-powered media converter chassis.
