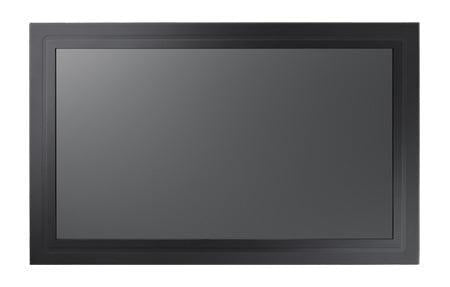

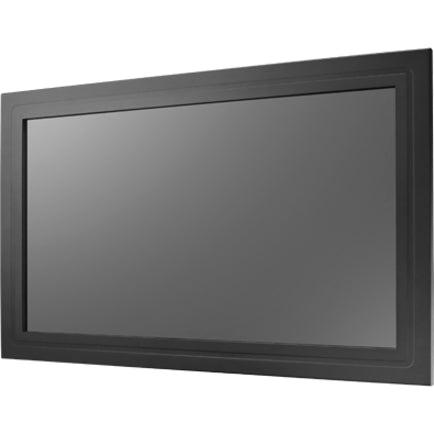

IDS-3221W - 21.5" FHD 250 cd/m2 LED Panel Mount touch monitor (P-Cap)
Advantech IDS-3221WP. Display diagonal: 54.6 cm (21.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
The Advantech IDS-3221W Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports front and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications.
Advantech IDS-3221W - LED monitor - 21.5" - touchscreen - 1920 x 1080 Full HD (1080p) - 250 cd/m² - 1000:1 - 5 ms - DVI, VGA
KEY SELLING POINTS
- 21.5" Full HD 1920 x 1080 LCD panel with LED backlight
- 0 ~ 45 °C operating temperature
- 5-wire resistive touchscreen
- Integrated bracket for easy installation
- Versatile mounting methods for front mounting and VESA mounting
MAIN SPECIFICATIONS
| Product Description |
Advantech IDS-3221W - LED monitor - Full HD (1080p) - 21.5" |
| Device Type |
LED-backlit LCD monitor - 21.5" - touchscreen |
| Features |
Touchscreen |
| Aspect Ratio |
16:9 |
| Native Resolution |
Full HD (1080p) 1920 x 1080 |
| Brightness |
250 cd/m² |
| Contrast Ratio |
1000:1 |
| Response Time |
5 ms |
| Color Support |
16.7 million colors |
| Input Connectors |
DVI, VGA |
| Screen Coating |
7H Hard Coating |
| Dimensions (WxDxH) |
22.7 in x 2 in x 14.4 in |
| Weight |
14.77 lbs |
| Compliant Standards |
CCC, FCC, RoHS, 2002/95/EC |
|
EXTENDED SPECIFICATIONS
| General |
| LED-backlit LCD monitor |
| 21.5" |
| 16:9 |
| Full HD (1080p) 1920 x 1080 |
| 250 cd/m² |
| 1000:1 |
| 16.7 million colors |
| 5 ms |
| 178 |
| 178 |
| 7H Hard Coating |
| LED backlight |
| Projected Capacitive Touch (P-CAP) technology |
| 22.7 in x 2 in x 14.4 in |
| 14.77 lbs |
|
| Input |
| Touchscreen - touchscreen |
| Capacitive |
|
| Connectivity |
|
|
| Miscellaneous |
| VESA interface support |
| 30,000 hour(s) |
| CCC, FCC, RoHS, 2002/95/EC |
|
| Dimensions & Weight (Shipping) |
| 27 in |
| 6.3 in |
| 19.5 in |
| 18.74 lbs |
|
| Environmental Parameters |
| 32 °F |
| 113 °F |
| 10 - 90% (non-condensing) |
|
