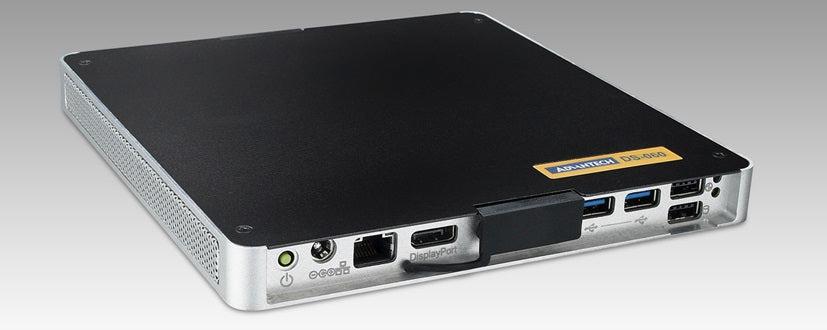

Advantech Ds-063Gb-S8A1E Pc/Workstation Barebone Usff Black, Silver Intel Nm10 Bga 559 D2550 1.86 Ghz

Intel Atom D2550 (1M Cache, 1.86 GHz), AMI uEFI 16 Mbit, DDR3 800/1066MHz, VGA, DP, 4 x USB 2.0, 19 V DC

Advantech DS-063GB-S8A1E. Chassis type: USFF, Product type: Mini PC barebone. Motherboard chipset: Intel NM10, Processor socket: BGA 559, BIOS type: EFI AMI. Number of memory slots: 1, Maximum internal memory: 4 GB. Supported storage drive types: HDD & SSD, Storage drive interface: mSATA, Serial ATA II. Ethernet LAN (RJ-45) ports: 1. Cooling type: Passive

- Unified 19 mm-thin chassis powered by Intel multiple platforms (TDP up to 45W)
- Dual 1080P displays by on-board VGA & DisplayPort (HDMI)
- DC input 19V
- Compact in size allows installation in limited space
- Highly expandable via internal Mini-PCIe interface (e.g. WLAN, 3G or TV tuner)
- Supports iManager, SUSIAccess and Embedded Software APIs
- Design compliant with Energy Star 5.2

Measuring a mere 19 mm thick, DS-060 is undoubtedly the world’s slimmest digital signage player powered by a 3rd generation Intel® Core™ i7 processor (up to 45 watts TDP). This thin-and-powerful media player is equipped with 1x digital, plus 1x analog display outputs, and simultaneous dual 1080P(FHD) capability delivers a premium visual experience for when graphics performance really matters. Windows® Embedded OS, Linux, and Android are supported, with iManager preloaded, and SUSIAccess for Signage is also on offer. We’ve designed the DS-060 series in the smallest possible form factor, for optimized performance.
