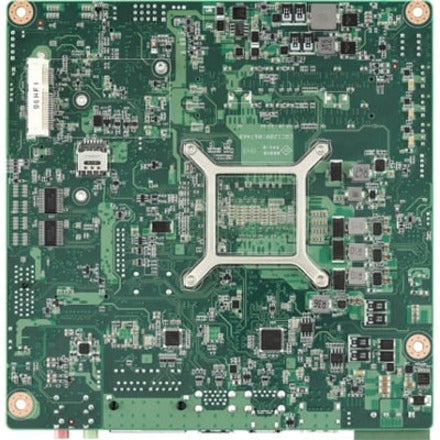

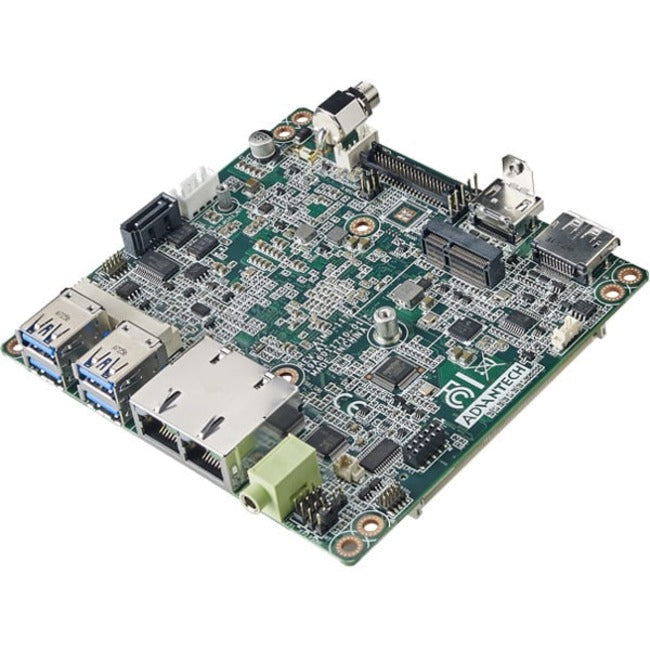

Advantech AIMB-U117 Desktop Motherboard - Intel Chipset - Socket BGA-1296 - UTX
- Supports Intel® Atom™ Quad/ Dual core E3950/E3930 1.6/ 1.3 GHz processor
- Single 204-pin SO-DIMM up to 8 GB DDR3L 1866 MHz SDRAM

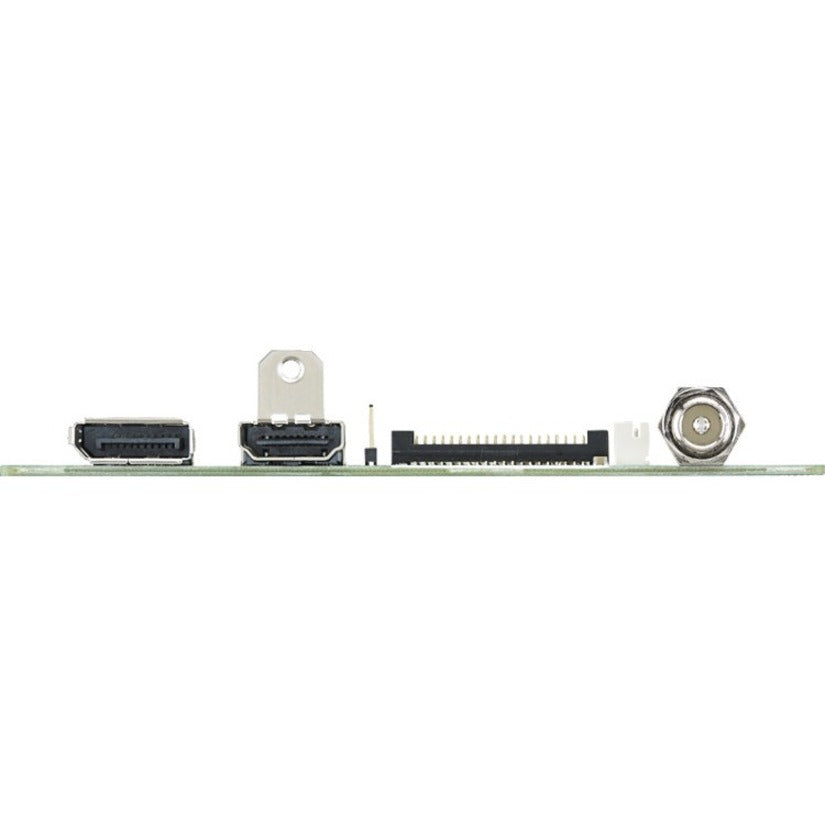

- Supports HDMI/DP++, eDP (co-lay dual channel 48-bit LVDS)

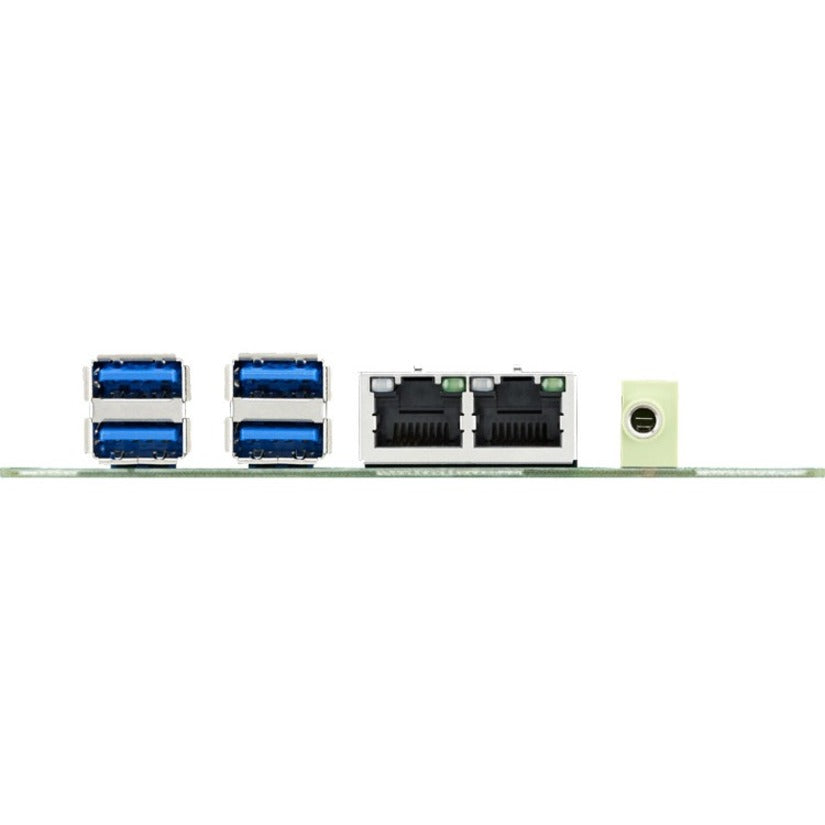

- Supports 1 Mini-PCIE expansion slot, M.2 E-Key slot, 2 COMs (RS-232, RS-422/485), 4 USB 3.0, and dual LAN
- Supports eMMC 32GB on board
- Supports wide DC in 12V to 24V
- Supports wide temperature with cooler/fanless solution
Product Type: Desktop Motherboard
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Advantech
Form Factor: UTX
Manufacturer: Advantech Co., Ltd
Product Model: AIMB-U117
Product Name: AIMB-U117 Desktop Motherboard
Manufacturer Part Number: AIMB-U117D-S6A1E
Manufacturer Website Address: http://www.advantech.com
