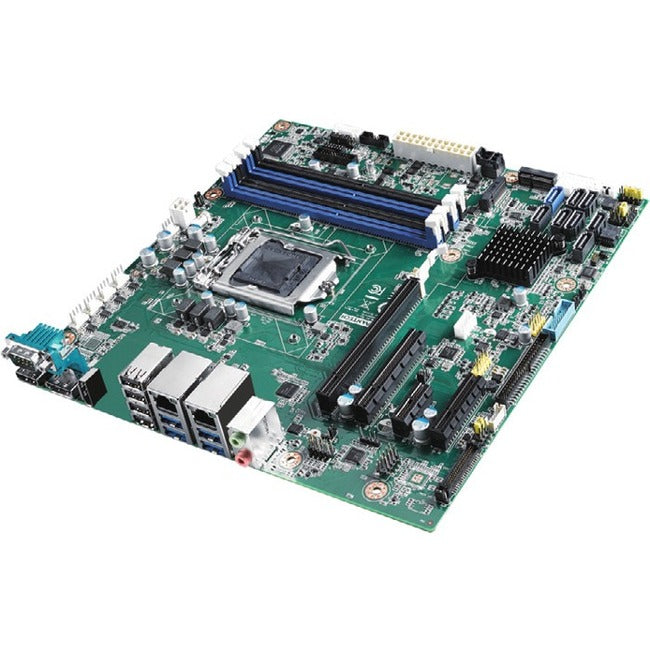

Advantech AIMB-586 Server Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX AIMB-586WG2-00A1E

Advantech AIMB-586 Server Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX

• Supports Intel® Xeon® 8th / 9th Gen Core™ i7/i5/i3 processor with Q370/ C246/H310 chipset


• Supports triple displays. (HDMI, 2DP++, eDP or LVDS display)


• Supports Intel AMT 12.0 and Intel vPro competent


• Supports PCIe Gen3, max up to 4x USB 3.1 (Gen2), 2x USB 3.0, 8x SATAIII,


• 4 GbE LAN, 2x M.2 (M & E Key)


• Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)


• Supports DeviceOn and Embedded Software APIs

Product Type: Server Motherboard
Environmentally Friendly: Yes
Brand Name: Advantech
Form Factor: Micro ATX
Manufacturer: Advantech Co., Ltd
Product Model: AIMB-586
Product Name: AIMB-586 Server Motherboard
Manufacturer Part Number: AIMB-586WG2-00A1E
Manufacturer Website Address: http://www.advantech.com
Package Contents:

• AIMB-586 Server Motherboard
• 2 x SATA HDD Cable
• 2 x SATA Power Cable
• 1 x I/O Port Bracket
• 1 x Startup Manual
• 2 x M.2 Device Screw
