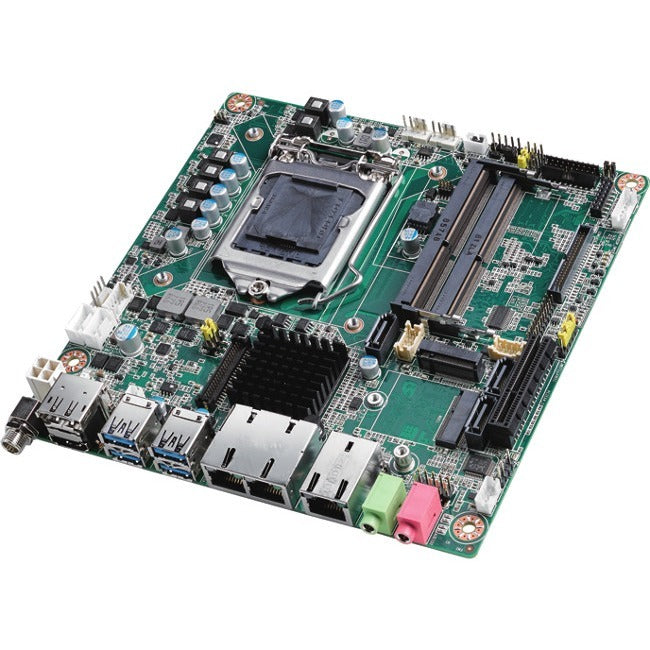

Advantech AIMB-286 Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Mini ITX AIMB-286F-00A1E

Advantech AIMB-286 Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Mini ITX

• Supports Intel® 9th/8th Gen Core™ i processor (LGA1151) with Intel H310 chipset


• Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM


• Supports dual display of DP++/HDMI/LVDs (or eDP)


• Supports PCIe x4 (Gen 3), 1 M.2 B key & 1 M.2 E key, 4 USB 3.0 & 4 USB 2.0 and 3 SATA III


• Supports 12V DC Input and low profile height


• Supports TPM 1.2 / 2.0


• Supports WISE-PaaS/DeviceOn and Embedded Software APIs

Product Type: Desktop Motherboard
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: Advantech
Form Factor: Mini ITX
Manufacturer: Advantech Co., Ltd
Product Model: AIMB-286
Product Name: AIMB-286 Desktop Motherboard
Manufacturer Part Number: AIMB-286F-00A1E
Manufacturer Website Address: http://www.advantech.com
Package Contents:

• AIMB-286 Desktop Motherboard
• 1 x SATA HDD Cable
• 1 x SATA Power Cable (1 port, 25cm)
• 1 x 1-to-2 Serial Port Cable, 22cm
• 1 x I/O Port Bracket
• 1 x 1-to-4 Serial Port Cable, 35cm
• 1 x Startup Manual
• 1 x ATX 2x10P to 1x3P-2.0 25cm Cable
