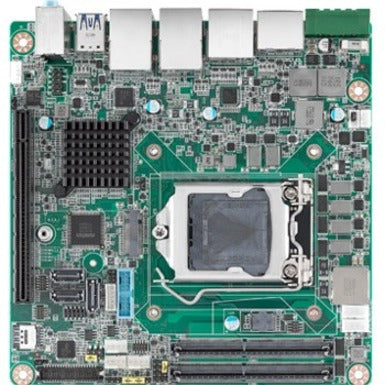

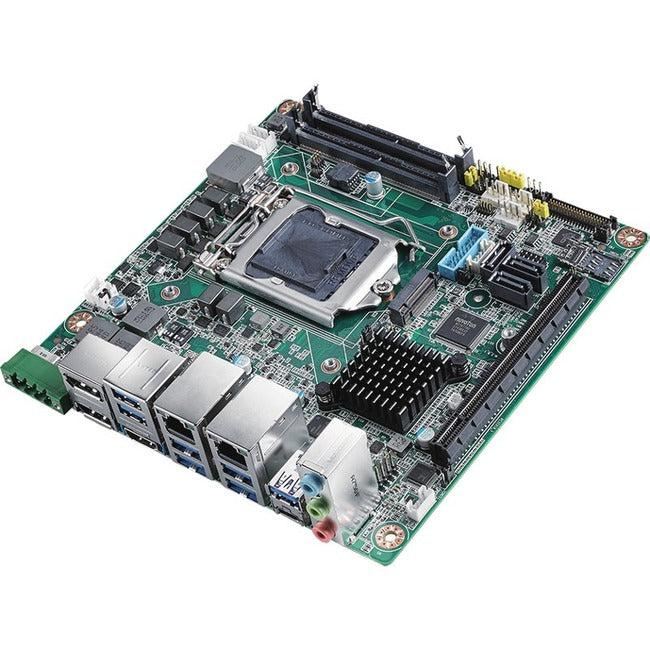

Advantech AIMB-276 Desktop Motherboard - Intel Q370 Chipset - Socket H4 LGA-1151 - Mini ITX AIMB-276G2-00A1E

Advantech AIMB-276 Desktop Motherboard - Intel Q370 Chipset - Socket H4 LGA-1151 - Mini ITX

• Supports Intel® 8th/9th Gen Core™ i processor (LGA1151) with Intel Q370 chipset


• Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM


• Supports triple display of DP++/DP++/HDMI/LVDS(eDP)


• Supports PCIe x16 (Gen 3), 1 M.2 B key & 1 M.2 E key, 6 USB 3.1 & 4 USB 3.0 and 3 SATA III


• Support wide range 12V~24V DC Input


• Supports Intel vPro, AMT 12.0, Software RAID 0,1,5,10, TPM 1.2 / 2.0 (optional)


• Supports DeviceOn and Embedded Software APIs

Product Type: Desktop Motherboard
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: Advantech
Form Factor: Mini ITX
Manufacturer: Advantech Co., Ltd
Product Model: AIMB-276
Product Name: AIMB-276 Desktop Motherboard
Manufacturer Part Number: AIMB-276G2-00A1E
Manufacturer Website Address: http://www.advantech.com
Package Contents:

• AIMB-276 Desktop Motherboard
• 1 x SATA HDD Cable
• 1 x SATA Power Cable (1 port, 25cm)
• 2 x 1-to-1 Serial Port Cable 17CM
• 1 x I/O Port Bracket
• 1 x Startup Manual
