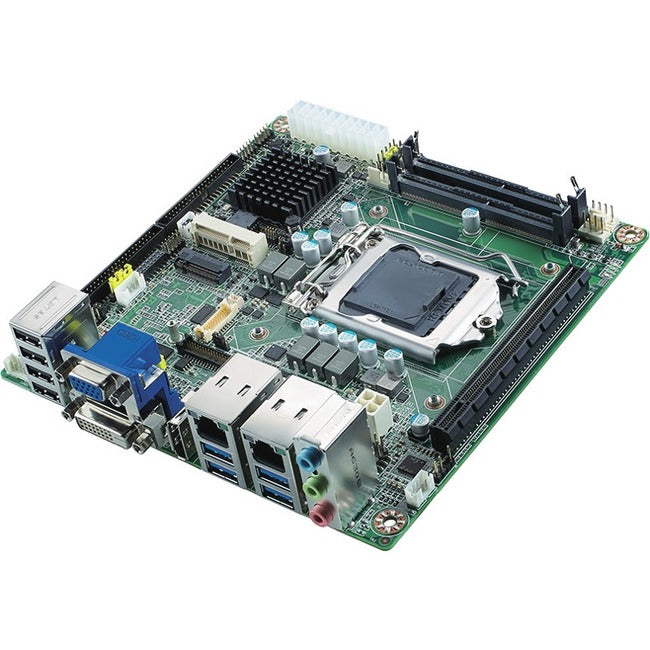

Advantech AIMB-205 Desktop Motherboard - Intel H110 Chipset - Socket H4 LGA-1151 - Mini ITX
- Supports Intel® 7th Gen Core™ & 6th Gen Core™ i processor /Pentium / Celeron (LGA1151) with Intel H110 chipset
- Two 260-pin SO-DIMM up to 32GB DDR4 2400/2133 MHz SDRAM
- Supports Dual display configuration by multiple interface: DP/DVI-D/VGA/ LVDS(eDP)
- Supports DirectX 12, OpenGL 4.4, OpenCL 2.0 and outstanding 3D graphics performance
- Supports 1 F/S MiniPCIe and 1 M.2 2242 (B key for SSD)
Product Type: Desktop Motherboard
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: Advantech
Form Factor: Mini ITX
Manufacturer: Advantech Co., Ltd
Product Model: AIMB-205
Product Name: AIMB-205 Desktop Motherboard
Manufacturer Part Number: AIMB-205G2-00A1E
Manufacturer Website Address: http://www.advantech.com
Package Contents:
- AIMB-205 Desktop Motherboard
- 1 x SATA HDD Cable
- 2 x 1-to-4 Serial Ports, 35 cm
- 1 x I/O Port Bracket
- 1 x Startup Manual
