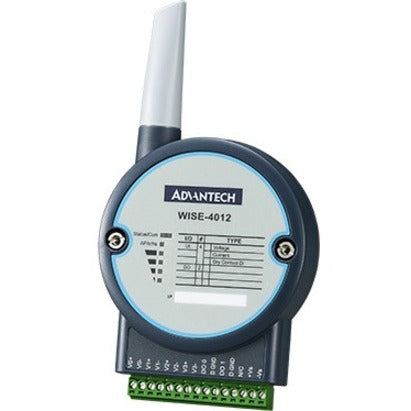

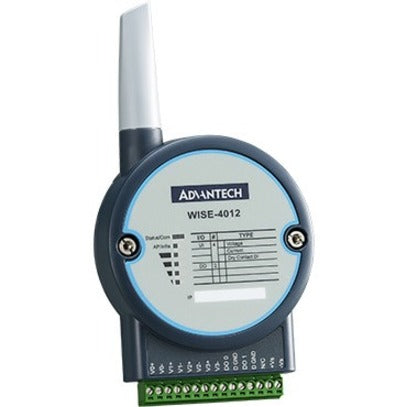

Advantech 4-channel Universal Input and 2-channel Digital Output IoT Wireless I/O Module
- 2.4 GHz IEEE 802.11b/g/n WLAN
- Supports both wireless client and server modes that can be accessed directly without AP or router
- Supports mobile device web configuration with HTML5 without the platform limitation
- Supports file-based cloud storage (preliminary) and local logging with RTC time stamp
- Supports RESTful web API in JSON format for IoT integration
- Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP
- Supports 10~30VDC power with reverse protection
- Supports 3000 Vrms isolation protection with dual watchdog timer for system and communication
Product Type: IoT Wireless I/O Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Brand Name: Advantech
Manufacturer: Advantech Co., Ltd
Product Model: WISE-4012-AE
Product Name: 4-channel Universal Input and 2-channel Digital Output IoT Wireless I/O Module
Manufacturer Part Number: WISE-4012-AE
Manufacturer Website Address: http://www.advantech.com
Packaged Quantity: 1
