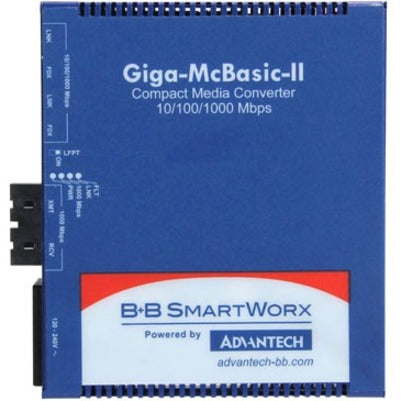

Advantech 100Mbps and 10/100/1000Mbps Media Converter
The IMC-450 and 470 series are standalone media converters with an optional internal power security device that makes the connection between copper and fiber cables. It can be installed anywhere a network connection is required. In addition, these media converters feature automatic link restoration. They increase the scalability of a network by providing rate conversion, distance extension, and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connections.
The IMC-450 and 470 support troubleshooting features such as LinkLoss and Fiber Alert which can be enabled/disabled by DIP switches. The diagnostic features allow the network administrator to quickly identify network faults. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port, that is available in an SFP form factor, as well as for fixed-fiber in single-mode and multi-mode. The Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interface.
- Designed with internal AC power
- Supports diagnostic features including Link Loss and Fiber Alert
- Some models provide two 10/100/1000Mbps copper ports
- Some models support Link Fault Pass Through (LFPT)
- Supports a variety of SFP modules
- Supports multiple mounting options (desktop, DIN rail or wall-mount)
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Product Series: IMC-470
Brand Name: Advantech
Form Factor: Rack-mountable
Manufacturer: Advantech Co., Ltd
Product Name: 100Mbps and 10/100/1000Mbps Media Converter
Product Line: Giga-McBasic-II
Manufacturer Part Number: IMC-470-MM-US
Manufacturer Website Address: http://www.advantech.com
Package Contents:
- 100Mbps and 10/100/1000Mbps Media Converter
- US Power Cord
Weight (Approximate): 10.58 oz
