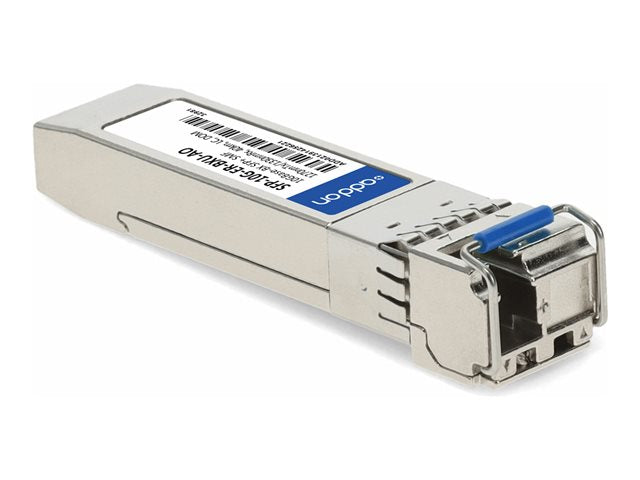

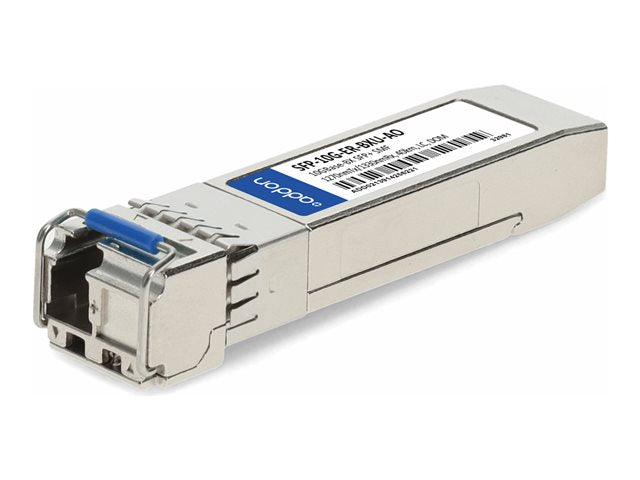

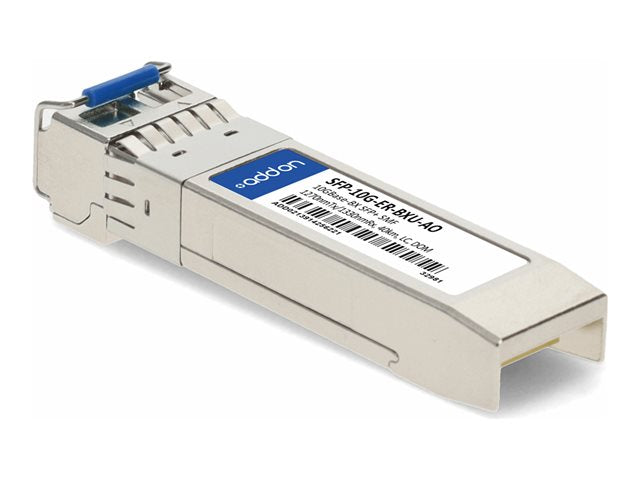

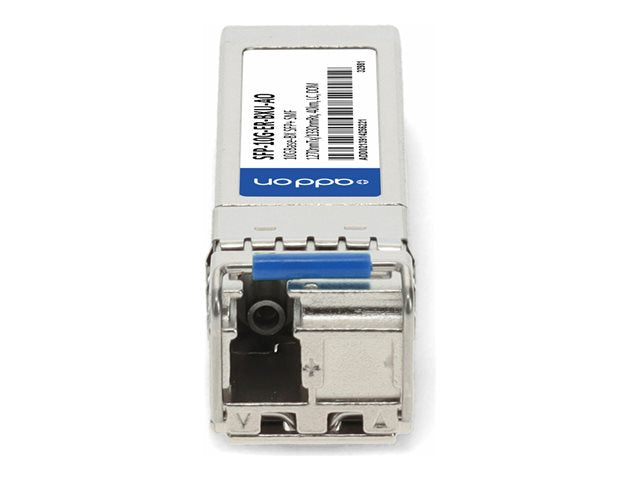

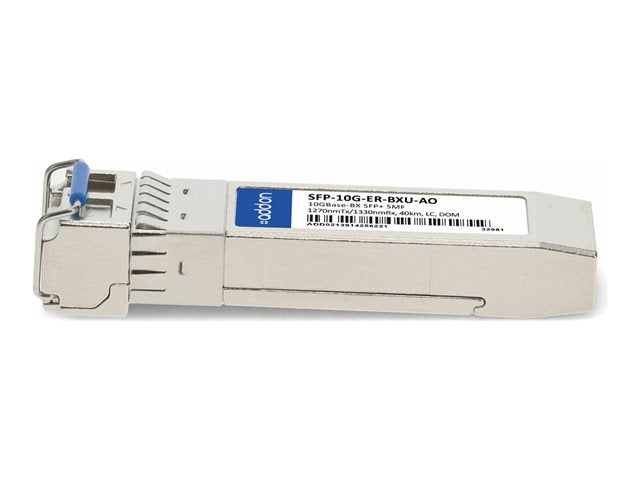

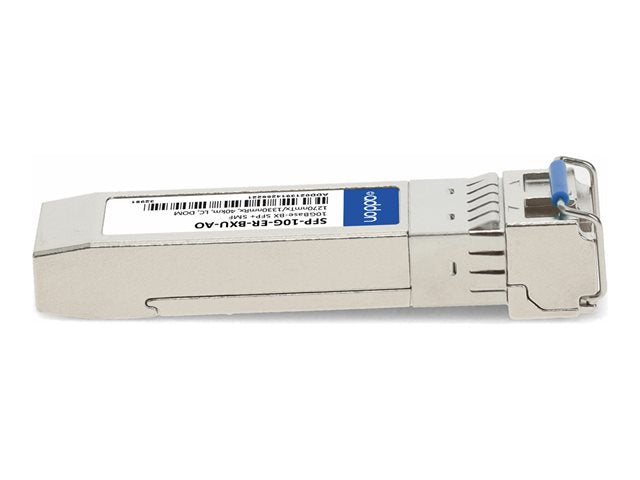

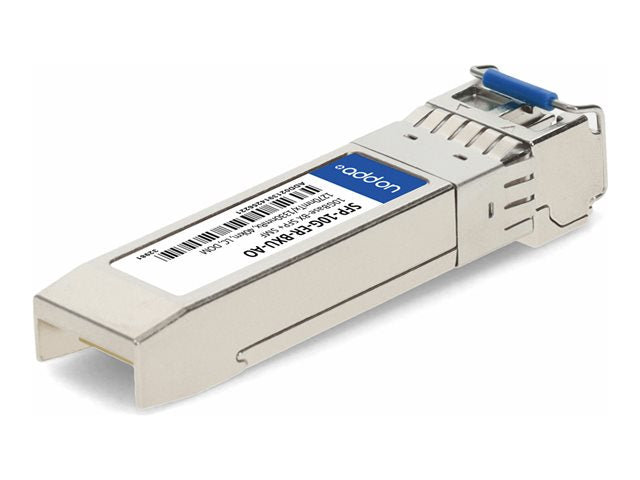

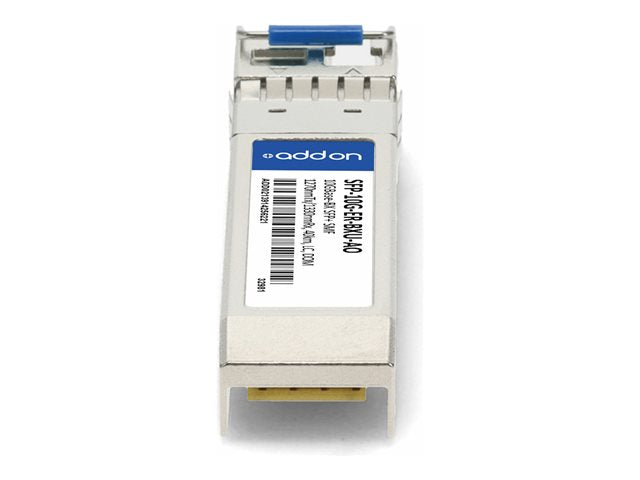

ADD-ON SFP-10G-ER-BXU Cisco Compatible SFP+ Transceiver
The ADD-ON SFP-10G-ER-BXU is a Cisco-compatible SFP+ transceiver engineered for enterprise data centers and long-distance fiber optic networks requiring reliable 10GBase-BX connectivity. This 10GBase-BX transceiver delivers 10 Gbps throughput over extended distances up to 40km using single-mode fiber (SMF), making it ideal for campus interconnects, metropolitan area networks (MANs), and carrier-grade deployments. Built for compatibility with Cisco switches and routers, this SFP+ module eliminates costly proprietary solutions while maintaining OEM-level performance and reliability.
Key Features
- 10GBase-BX single-mode fiber transceiver with 40km reach capability
- Wavelength configuration: 1270nmTx/1330nmRx for bidirectional transmission
- LC connector interface for standard fiber optic cabling
- Cisco SFP-10G-ER-BXU compatible — plug-and-play deployment
- DDM (Digital Diagnostic Monitoring) for real-time performance tracking
- Low power consumption optimized for data center efficiency
- Extended temperature range for diverse deployment environments
- RoHS compliant and environmentally certified
Technical Specifications
| Specification |
Details |
| Manufacturer |
ADD-ON |
| Part Number |
SFP-10G-ER-BXU-AO |
| Transceiver Type |
SFP+ (Small Form-Factor Pluggable) |
| Data Rate |
10 Gbps |
| Protocol |
10GBase-BX |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Maximum Distance |
40 km |
| Transmit Wavelength |
1270 nm |
| Receive Wavelength |
1330 nm |
| Connector Type |
LC |
| Duplex Mode |
Bidirectional (WDM) |
| Digital Diagnostics |
DDM Supported |
| Operating Temperature |
0°C to 70°C |
| Power Consumption |
<1.5W |
| Compliance |
RoHS, IEEE 802.3ae |
Frequently Asked Questions
What is the maximum distance for this SFP+ transceiver?
The ADD-ON SFP-10G-ER-BXU supports 10GBase-BX transmission up to 40km over single-mode fiber, making it suitable for long-distance enterprise and carrier deployments without signal degradation.
Is this transceiver compatible with Cisco equipment?
Yes, the SFP-10G-ER-BXU-AO is fully compatible with Cisco switches, routers, and other networking devices that support SFP+ modules. It provides a cost-effective alternative to OEM transceivers with identical performance specifications.
What wavelengths does this 10GBase-BX transceiver use?
This SFP+ transceiver operates with 1270nm transmission and 1330nm reception, enabling bidirectional communication over a single strand of single-mode fiber using wavelength division multiplexing (WDM) technology.
Does the ADD-ON SFP-10G-ER-BXU include monitoring capabilities?
Yes, this transceiver features Digital Diagnostic Monitoring (DDM) functionality, allowing real-time monitoring of optical power levels, temperature, and module health for proactive network management and troubleshooting.
