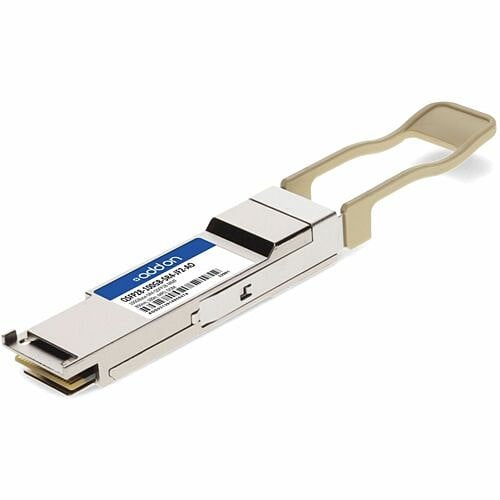

QSFP28 100GBase-SR4 Transceiver for High-Speed Data Centers
The ADD-ON QSFP28-100GB-SR4-JF2-AO is an MSA-compliant transceiver engineered for enterprises and data centers requiring 100GBase-SR4 connectivity over short distances. This QSFP28 transceiver delivers 100 Gbps throughput up to 100 meters using OM4 multi-mode fiber, making it ideal for high-bandwidth, cost-effective intra-datacenter networking. Perfect for organizations upgrading to 100GbE infrastructure without replacing existing fiber cabling.
Key Features
- 100GBase-SR4 protocol support for 100 Gbps data rates
- MSA-compliant design ensures broad equipment compatibility
- OM4 multi-mode fiber support up to 100 meters
- 850 nm wavelength for optimal short-reach performance
- MPO connector for reliable, high-density connections
- Low power consumption for efficient data center operations
- Hot-pluggable design for seamless upgrades
Technical Specifications
| Specification |
Details |
| Manufacturer |
ADD-ON |
| Part Number |
QSFP28-100GB-SR4-JF2-AO |
| Protocol |
100GBase-SR4 |
| Data Rate |
100 Gbps |
| Reach |
Up to 100 meters |
| Fiber Type |
OM4 Multi-Mode Fiber (MMF) |
| Wavelength |
850 nm |
| Connector Type |
MPO |
| Form Factor |
QSFP28 |
| Compliance |
MSA Compliant |
| Operating Temperature |
0°C to 70°C |
Frequently Asked Questions
What is a QSFP28 transceiver used for?
A QSFP28 transceiver is used to convert electrical signals to optical signals for high-speed network transmission. The QSFP28-100GB-SR4-JF2-AO specifically enables 100GBase-SR4 connectivity in data centers and enterprise networks, supporting 100 Gbps data rates over fiber optic cables.
What is the difference between 100GBase-SR4 and other 100GbE standards?
100GBase-SR4 is optimized for short-reach, high-bandwidth applications using multi-mode fiber. Unlike long-reach standards, it operates over distances up to 100 meters, making it cost-effective for intra-datacenter deployments where OM4 fiber infrastructure already exists.
Is this QSFP28 transceiver compatible with my existing network equipment?
Yes, the ADD-ON QSFP28-100GB-SR4-JF2-AO is MSA-compliant, meaning it meets industry standards for interoperability. It works with most major networking vendors' equipment that supports 100GBase-SR4 and QSFP28 form factors. Always verify your equipment's compatibility specifications.
Can I use this transceiver with OM3 fiber instead of OM4?
This transceiver is designed for OM4 multi-mode fiber to achieve optimal 100-meter reach and performance. Using OM3 fiber may reduce maximum distance and reliability. For best results, use OM4 fiber as specified in the technical documentation.
