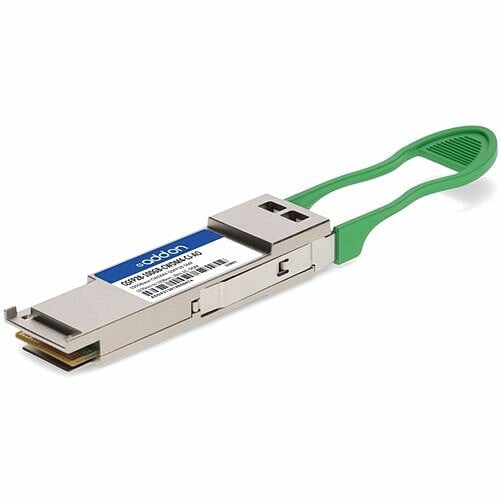

ADD-ON QSFP28 LC 100G-CWDM4 2km Transceiver
The QSFP28 100G-CWDM4 transceiver is engineered for organizations requiring high-speed, cost-effective optical connectivity in data center and campus network environments. This Cisco-compatible QSFP28 transceiver delivers 100 Gbps performance over 2km distances using coarse wavelength division multiplexing (CWDM4) technology, making it ideal for enterprise networks, cloud infrastructure, and high-performance computing deployments. Built by ADD-ON for maximum compatibility and reliability, this optical module reduces infrastructure costs while maintaining carrier-grade performance standards.
Key Features
- 100 Gbps data rate with QSFP28 form factor for maximum density
- CWDM4 wavelength technology supporting 2km reach over standard single-mode fiber
- LC duplex connector for reliable, industry-standard fiber connections
- Cisco-compatible design ensures seamless integration with existing infrastructure
- Low power consumption optimized for sustainable data center operations
- Hot-pluggable module design for zero-downtime upgrades and maintenance
- Extended temperature range for diverse deployment environments
- Comprehensive diagnostics and monitoring via DDM (Digital Diagnostic Monitoring)
Technical Specifications
| Specification |
Details |
| Part Number |
QSFP28-100GB-CWDM4-CJ-AO |
| Manufacturer |
ADD-ON |
| Data Rate |
100 Gbps |
| Form Factor |
QSFP28 |
| Wavelength Technology |
CWDM4 (Coarse Wavelength Division Multiplexing) |
| Maximum Distance |
2 kilometers over single-mode fiber |
| Connector Type |
LC Duplex |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Operating Temperature |
0°C to 70°C |
| Power Consumption |
Optimized for low-power operation |
| Compatibility |
Cisco QSFP28 ports and equivalent systems |
| Monitoring |
Digital Diagnostic Monitoring (DDM) |
Frequently Asked Questions
What is a QSFP28 100G-CWDM4 transceiver used for?
The QSFP28 100G-CWDM4 transceiver is used to establish high-speed 100 Gbps optical connections in data center networks, campus area networks, and enterprise infrastructure. CWDM4 technology allows multiple wavelengths to travel over a single fiber strand, maximizing bandwidth efficiency while reducing cabling costs. This makes it essential for organizations upgrading to 100G connectivity without replacing existing fiber infrastructure.
Is this QSFP28 transceiver compatible with Cisco equipment?
Yes, this ADD-ON QSFP28 LC 100G-CWDM4 module is specifically designed for Cisco compatibility. It works seamlessly with Cisco Nexus switches, UCS systems, and other Cisco platforms supporting QSFP28 ports. Always verify your specific switch model supports QSFP28 form factor and 100G speeds before deployment.
What distance does the 2km CWDM4 transceiver support?
This 100G-CWDM4 2km transceiver supports optical transmission distances up to 2 kilometers over standard single-mode fiber (SMF). This distance is ideal for intra-data center connections, building-to-building campus links, and metropolitan area network (MAN) deployments. For longer distances, consider 10km or 40km CWDM4 variants.
What monitoring capabilities does this optical module provide?
The ADD-ON QSFP28 transceiver includes Digital Diagnostic Monitoring (DDM) functionality, enabling real-time monitoring of optical power levels, temperature, and module health. This allows network administrators to proactively identify performance issues, optimize signal quality, and plan maintenance before failures occur.
