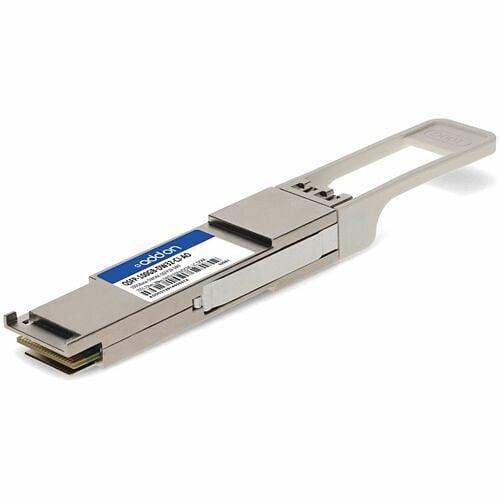

AddOn QSFP-100GB-DW32-CJ-AO 100GBase DWDM Transceiver
The AddOn QSFP28 100GBase DWDM transceiver delivers enterprise-grade optical connectivity for data center and long-haul network deployments. This 100GBase-DWDM single-lambda module provides reliable 1x100G PAM4 performance over extended distances, making it ideal for organizations requiring high-capacity wavelength division multiplexing solutions. Compatible with Cisco and Juniper Networks platforms, this transceiver supports up to 80 km transmission over single-mode fiber with integrated DOM monitoring for real-time diagnostics.
Perfect for network engineers deploying dense wavelength division multiplexing infrastructure, this QSFP28 transceiver combines long-reach capability with standards-based interoperability. The LC connector interface and PAM4 modulation ensure seamless integration into existing optical networks while delivering the performance and reliability mission-critical applications demand.
Key Features
-
100GBase-DWDM single-lambda connectivity at 1551.72nm (Ch32)
- PAM4 modulation for efficient spectral utilization
- Extended 80 km reach over single-mode fiber with EDFA/DCM support
- LC duplex connector for standard optical interfaces
- Digital Optical Monitoring (DOM) for real-time performance tracking
- Cisco and Juniper Networks certified compatibility
- Hot-pluggable QSFP28 form factor for flexible deployment
- Low power consumption and thermal efficiency
Technical Specifications
| Specification |
Details |
| Manufacturer |
ADD-ON |
| Part Number |
QSFP-100GB-DW32-CJ-AO |
| Module Type |
QSFP28 Transceiver |
| Data Rate |
1x100G PAM4 |
| Wavelength |
1551.72 nm (Channel 32) |
| Modulation |
PAM4 (Pulse Amplitude Modulation) |
| Maximum Reach |
80 km over SMF (with EDFA/DCM) |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Connector Type |
LC Duplex |
| Monitoring |
Digital Optical Monitoring (DOM) |
| Form Factor |
QSFP28 Hot-Pluggable |
| Compatibility |
Cisco and Juniper Networks |
| Application |
Data Networking, Optical Networks |
Frequently Asked Questions
What is 100GBase DWDM and why do I need it?
100GBase DWDM (Dense Wavelength Division Multiplexing) enables multiple 100G signals to travel simultaneously over a single fiber strand at different wavelengths. This QSFP28 100GBase-DWDM module maximizes fiber utilization and reduces infrastructure costs in high-capacity networks, making it essential for data centers and long-distance optical links.
How far can this QSFP28 transceiver transmit?
The AddOn 100GBase DWDM transceiver supports up to 80 km transmission over single-mode fiber when used with EDFA (Erbium-Doped Fiber Amplifier) and DCM (Dispersion Compensation Module) equipment. This extended reach makes it suitable for metropolitan and regional network deployments.
Is this transceiver compatible with my network equipment?
Yes, this QSFP28 module is certified compatible with Cisco and Juniper Networks platforms. The standard LC connector and PAM4 modulation ensure interoperability with most modern optical networking equipment supporting 100GBase-DWDM standards.
What does DOM monitoring provide?
Digital Optical Monitoring (DOM) on this 100GBase-DWDM QSFP28 transceiver enables real-time tracking of optical power levels, temperature, and voltage. This allows network administrators to proactively monitor link health and troubleshoot issues before they impact service availability.
