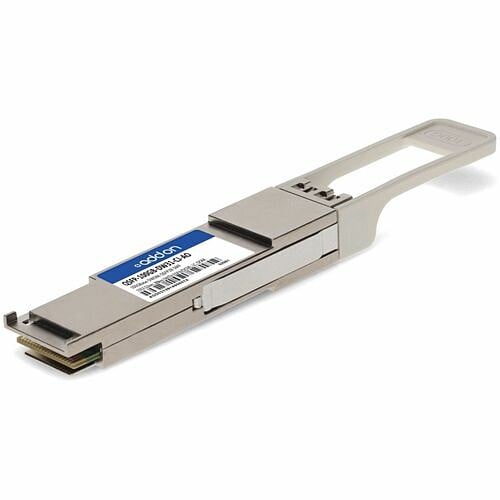

AddOn QSFP-100GB-DW31-CJ-AO QSFP28 100GBase DWDM Transceiver
The AddOn QSFP-100GB-DW31-CJ-AO is a high-performance 100GBase DWDM transceiver engineered for enterprise data centers and service providers requiring extended-reach optical connectivity. This QSFP28 transceiver delivers 100Gbps throughput over single-mode fiber (SMF) up to 80km, making it ideal for metropolitan and regional network deployments. With native compatibility for Cisco and Juniper Networks platforms, this PAM4 single lambda module operates at 1552.52nm (Channel 31) and supports DWDM infrastructure with optional EDFA/DCM amplification for maximum reach and reliability.
Key Features
-
100GBase DWDM PAM4 — Single lambda 100Gbps throughput with advanced modulation
-
80km Extended Reach — Long-distance transmission over SMF with EDFA/DCM support
-
1552.52nm Wavelength — Channel 31 DWDM grid optimized for dense wavelength multiplexing
-
Cisco & Juniper Compatible — Drop-in replacement for OEM transceivers on certified platforms
-
LC Connector — Standard duplex LC interface for reliable fiber connections
-
DOM Support — Digital Optical Monitoring for real-time performance metrics
-
QSFP28 Form Factor — Compact pluggable module for high-density port configurations
Technical Specifications
| Specification |
Details |
| Manufacturer |
ADD-ON |
| Part Number |
QSFP-100GB-DW31-CJ-AO |
| Module Type |
QSFP28 Transceiver |
| Data Rate |
100GBase DWDM (1x100G PAM4) |
| Wavelength |
1552.52nm (Channel 31) |
| Reach |
80km over SMF (with EDFA/DCM) |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Connector Type |
LC Duplex |
| Modulation |
PAM4 Single Lambda |
| Platform Support |
Cisco & Juniper Networks Compatible |
| Monitoring |
Digital Optical Monitoring (DOM) |
Frequently Asked Questions
What is a 100GBase DWDM transceiver and why do I need one?
A 100GBase DWDM transceiver enables 100Gbps data transmission over long distances using dense wavelength division multiplexing. This AddOn module is essential for enterprises building scalable, high-capacity optical networks across multiple sites without requiring additional fiber infrastructure.
Is the AddOn QSFP28 compatible with my Cisco or Juniper equipment?
Yes. The QSFP-100GB-DW31-CJ-AO is certified compatible with Cisco and Juniper Networks platforms. It functions as a direct replacement for OEM transceivers on supported line cards and switches, ensuring seamless integration and full feature support.
How far can this 100GBase DWDM transceiver transmit?
This module supports up to 80km transmission over single-mode fiber when used with optional EDFA (Erbium-Doped Fiber Amplifier) and DCM (Dispersion Compensation Module) equipment. Standard reach without amplification is shorter; consult specifications for your specific deployment.
What does PAM4 single lambda mean?
PAM4 (Pulse Amplitude Modulation with 4 levels) is an advanced modulation technique that encodes more data per symbol, enabling 100Gbps throughput on a single wavelength. This increases spectral efficiency and reduces the number of wavelengths needed in DWDM systems.
