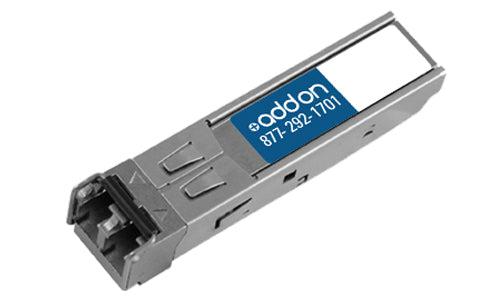

Addon Networks 1000Base-Sx Sfp Network Transceiver Module Fiber Optic 1250 Mbit/S 850 Nm

1000Base-SX SFP Transceiver, MMF, 850nm, 550m, LC

AddOn Networks 1000Base-SX SFP. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP

AddOn Computers 453151-B21-AO is a multi-mode transceiver small form factor pluggable module for bi-directional serial optical data communications such as Gigabit Ethernet 1000BASE-SX and Fiber Channel SM-LC-L FC-Pl. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850nm. The transmitter section uses a multiple quantum well laser and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The 453151-B21-AO is designed to be compliant with SFF-8472 SFP Multi-source
Agreement (MSA).
