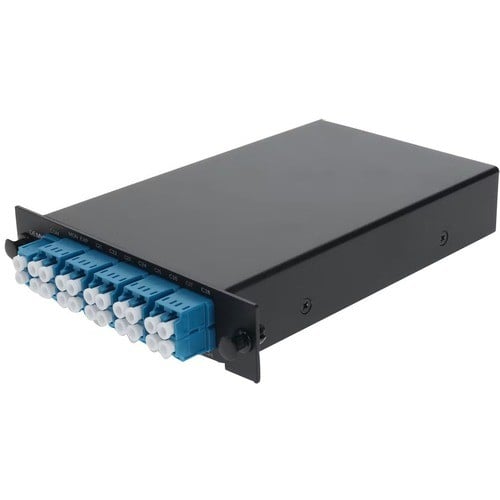

AddOn 8-Channel DWDM Mux and Demux (Duplex) - ITU 100GHz Channels 21-28
Who It's For & Why It's Great
The AddOn ADD-DWDM-MUXDL8EM-21-28 is an 8-channel DWDM mux and demux designed for network engineers and data center operators who need reliable, high-density wavelength division multiplexing. This duplex unit supports ITU 100GHz channels 21-28 with 1W power handling, making it ideal for expanding optical network capacity without replacing existing infrastructure. The LGX form factor integrates seamlessly into standard optical distribution frames, while express and monitor ports provide flexible network monitoring and management. Perfect for service providers, enterprises, and telecom environments requiring scalable DWDM solutions.
Key Features
- 8-channel DWDM multiplexer and demultiplexer in single duplex unit
- ITU 100GHz grid support for channels 21-28
- 1W power handling capacity per channel
- LGX form factor for standard optical frame integration
- Express port for pass-through wavelength management
- Monitor port for real-time network diagnostics
- UPC/LC connectors for reliable fiber connections
- Duplex configuration for bidirectional transmission
- High-density deployment capability
Technical Specifications
| Specification |
Details |
| Manufacturer |
ADD-ON |
| Part Number |
ADD-DWDM-MUXDL8EM-21-28 |
| Channel Count |
8 channels |
| Channel Range |
ITU 100GHz Channels 21-28 |
| Form Factor |
LGX |
| Configuration |
Duplex (Mux/Demux) |
| Power Handling |
1W per channel |
| Connector Type |
UPC/LC |
| Express Port |
Yes |
| Monitor Port |
Yes |
| Application |
DWDM optical networks, data centers, telecom infrastructure |
Frequently Asked Questions
What is an 8-channel DWDM mux and demux used for?
An 8-channel DWDM mux and demux combines multiple wavelengths onto a single fiber (multiplexing) and separates them at the destination (demultiplexing). This dramatically increases fiber capacity without installing new cables, making it essential for expanding optical networks cost-effectively.
What does ITU 100GHz channels 21-28 mean?
ITU 100GHz refers to the International Telecommunication Union standard grid spacing of 100 gigahertz between wavelengths. Channels 21-28 represent eight specific wavelengths within this grid, allowing this DWDM unit to support eight simultaneous data streams on a single fiber pair.
Why choose LGX form factor for DWDM equipment?
The LGX form factor is the industry standard for optical distribution frames, enabling seamless integration into existing telecom and data center infrastructure. It supports high-density deployments while maintaining compatibility with standard rack-mount systems.
How do express and monitor ports enhance DWDM performance?
The express port allows specific wavelengths to pass through without demultiplexing, enabling flexible network topologies. The monitor port provides real-time access to network signals for diagnostics, troubleshooting, and performance monitoring without disrupting live traffic.
