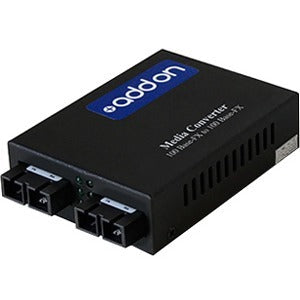

This gigabit media converter for multimode fiber is perfect for network administrators, IT professionals, and system integrators who need reliable fiber ethernet switches connectivity for extending gigabit networks over fiber optic infrastructure. Our solution delivers:
-
Multimode fiber conversion enabling seamless copper-to-fiber transitions for gigabit ethernet networks up to 550 meters
-
1000Base-SX to 1000Base-T conversion supporting full gigabit speeds between fiber and copper network segments
-
SC connector compatibility providing secure and reliable fiber optic connections for professional network installations
-
Network switch fiber optic integration enabling easy expansion of copper networks with fiber backbone connectivity
Key Features
-
Gigabit ethernet performance delivering full 1000 Mbps data rates for high-bandwidth network applications
-
Multimode fiber support optimized for cost-effective short to medium distance network connections
- Optimized for ethernet switches with seamless integration into existing network infrastructure
- Consistent fiber optic transmission ensuring reliable data integrity and electrical isolation
-
Fiber optic media converter design providing professional-grade network extension capabilities
Technical Specifications
| Manufacturer |
AddOn |
| Model Number |
ADD-GMC-MMSM-4SC |
| Type |
Gigabit Media Converter |
| Copper Interface |
1000Base-T RJ45 Gigabit Ethernet |
| Fiber Interface |
1000Base-SX Multimode Fiber |
| Connector Type |
SC duplex connector |
| Data Rate |
1000 Mbps (1 Gigabit) |
| Fiber Type |
Multimode fiber (62.5/125µm or 50/125µm) |
| Wavelength |
850nm (1000Base-SX) |
| Transmission Distance |
Up to 550m (multimode fiber) |
| Auto-Negotiation |
10/100/1000 Mbps on copper port |
| Operating Temperature |
0°C to 50°C (commercial grade) |
| Power Requirements |
External power adapter |
| Mounting |
Desktop or DIN rail mountable |
| Standards Compliance |
IEEE 802.3, IEEE 802.3z, IEEE 802.3ab |
| Applications |
Network extension, fiber backbone, campus networks |
| Compatible Systems |
Gigabit switches, routers, servers, workstations with gigabit ethernet |
Frequently Asked Questions
Q: What is the maximum transmission distance for this media converter?
A: This gigabit media converter supports transmission distances up to 550 meters over multimode fiber, making it ideal for building-to-building connections, campus networks, and medium-distance fiber backbone applications.
Q: How does this converter integrate with existing gigabit networks?
A: The 1000Base-SX to 1000Base-T converter seamlessly connects to existing ethernet switches and gigabit network equipment via standard RJ45 copper ports while providing fiber connectivity for extended reach and electrical isolation.
Q: What type of fiber optic cable is required?
A: This converter uses multimode fiber with SC connectors, supporting both 62.5/125µm and 50/125µm multimode cables at 850nm wavelength, providing cost-effective fiber connectivity for short to medium distance applications.
Q: Can this converter work with different ethernet speeds?
A: Yes, the copper port supports auto-negotiation for 10/100/1000 Mbps speeds, ensuring backward compatibility with Fast Ethernet devices while providing full gigabit performance when connected to fiber ethernet switches and gigabit-capable equipment.
