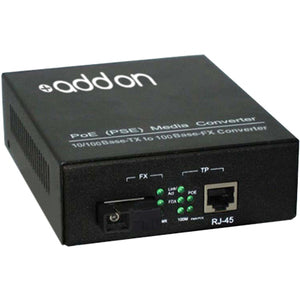

AddOn 10/100Base-TX(RJ-45) to 100Base-BXU(SC) BiDi SMF 1310nm/1550nm 20km POE Media Converter
ADD-FMCP-BX-USC is a Media Converter that converts a 100Base-TX(RJ45) to 100Base-BXU(SC) via a 1310nm/1550nm bi-directional (BiDi) single-mode fiber (SMF) SC connector, which allows distance reach up to 20km. ADD-FMCP-BX-USC provides a cost effective conversion from 100Base Copper to 100Base-BXU fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100meters / 330feets). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time.
- Expand your network capabilities with this 2 transceiver/media converter
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: AddOn
Manufacturer: AddOn
Product Model: ADD-FMCP-BX-USC
Product Name: 100Base-TX To 100Base-BXU SC BiDi SMF POE Media Converter
Manufacturer Part Number: ADD-FMCP-BX-USC
Manufacturer Website Address: http://www.addoncomputer.com
Limited Warranty: 3 Year
Weight (Approximate): 1.40 lb
