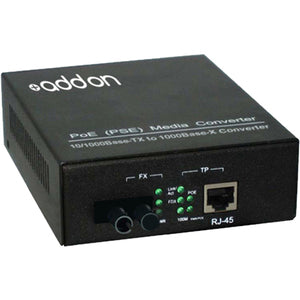

This power over ethernet adapter is perfect for network engineers, IT administrators, and system integrators needing reliable copper-to-fiber conversion with integrated power delivery for remote network devices. Our AddOn BiDi media converter delivers:
-
Exceptional 20km transmission distance over single mode fiber using bidirectional technology
-
Integrated POE functionality eliminating the need for separate power injection equipment
-
Professional ST connector interface ensuring secure fiber optic connections
-
Multi-speed support from 10/100/1000Base-TX to 1000Base-BXU conversion
Key Features
-
Bidirectional single mode fiber transmission using 1310nm/1550nm wavelengths
-
Extended 20km reach capability for long-distance network connections
- Optimized for fiber ethernet switches and enterprise network infrastructure
- Consistent power over ethernet adapter functionality with 802.3af/at compatibility
-
Professional ST fiber connector providing reliable optical connections
-
Auto-negotiation support for seamless network integration
Technical Specifications
| Manufacturer |
AddOn Networks |
| Model Number |
10/100/1000Base-TX to 1000Base-BXU POE Converter |
| Type |
Power Over Ethernet Media Converter |
| Copper Interface |
10/100/1000Base-TX (RJ-45) |
| Fiber Interface |
1000Base-BXU (ST Connector) |
| Fiber Type |
Single Mode Fiber (SMF) |
| Wavelengths |
1310nm TX / 1550nm RX (BiDi) |
| Transmission Distance |
Up to 20 kilometers |
| POE Support |
802.3af/at Power over Ethernet |
| Operating Temperature |
0°C to 70°C (32°F to 158°F) |
| Applications |
Campus networks, WAN connections, remote device power |
Frequently Asked Questions
Q: How does bidirectional fiber technology benefit network infrastructure?
A: Bidirectional (BiDi) technology uses different wavelengths (1310nm/1550nm) on a single fiber strand, effectively doubling fiber capacity while reducing infrastructure costs. This power over ethernet adapter enables long-distance connections using half the fiber resources of traditional solutions.
Q: What devices can be powered through the integrated POE functionality?
A: The integrated power over ethernet adapter supports 802.3af/at standards, powering IP cameras, wireless access points, VoIP phones, and other network devices up to 20km away. This eliminates the need for separate power infrastructure at remote locations.
Q: How does the 20km transmission distance compare to copper alternatives?
A: While copper-based gigabit ethernet is limited to 100 meters, this single mode fiber converter extends reach to 20 kilometers without signal degradation. This makes it ideal for campus backbones, building-to-building connections, and WAN applications.
Q: What makes ST connectors suitable for enterprise fiber networks?
A: ST connectors provide secure, twist-lock connections that resist accidental disconnection in high-vibration environments. This fiber ethernet switches compatible converter ensures reliable connections in data centers, industrial facilities, and mission-critical network applications.
