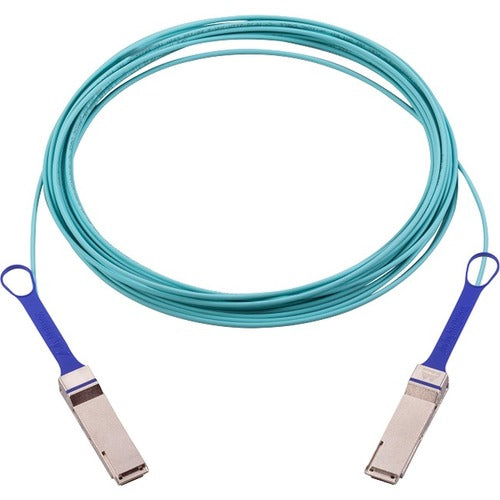

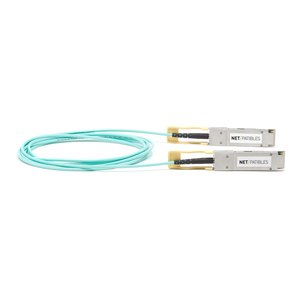

Netpatibles MFA1A00-E007 Active Optical Cable InfiniBand EDR up to 100Gb/s QSFP LSZH 7m
100Gb/s QSFP28 MMF Active Optical Cables
NVIDIA Networking MFA1A00-E007 are QSFP28 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cables designed for use in InfiniBand 100Gb/s EDR systems. 100G EDR AOCs are the most popular interconnect used in very high-speed InfiniBand High Performance Computing (HPC) environments as they offer predictable latency, very low power (2.2W) and enable increased air flow, tighter bend radii and significantly longer reach compared to DAC cables. Since the AOC is hot pluggable, it is easy to install and replace.
MFA1A00-Exxx has a standard SFF-8665 compliant QSFP28 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 26Gb/s.
MFA1A00-Exxx offers selectable retiming per lane for both its optical transmitters and receivers for the 25-26Gbp/s rates, but the AOC also supports lower bit rates without retiming. The transmitters have programmable input equalizers and input squelch function, while the receivers have programmable output amplitude and pre-emphasis.
NVIDIA's unique, quality, active, fiber, cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
- Features Active
Product Type: Network Cable
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Netpatibles
Manufacturer: Netpatibles
Product Name: MFA1A00-E007 Active Optical Cable InfiniBand EDR up to 100Gb/s QSFP LSZH 7m
Manufacturer Part Number: MFA1A00-E007-NP
Manufacturer Website Address: http://www.netpatibles.com
